Prelude L4-2157cc 2.2L DOHC (VTEC) MFI (2001)
Heated Glass Element Relay: Testing and Inspection
Normally-open type B:
Power Relays-Relay Test
1. Check for continuity between the terminals.
^
There should be continuity between the No.1 and No.3 terminals when power and ground are connected to the No.2 and No.4 terminals.
^
There should be no continuity between the No.1 and No.3 terminals when power is disconnected.
^

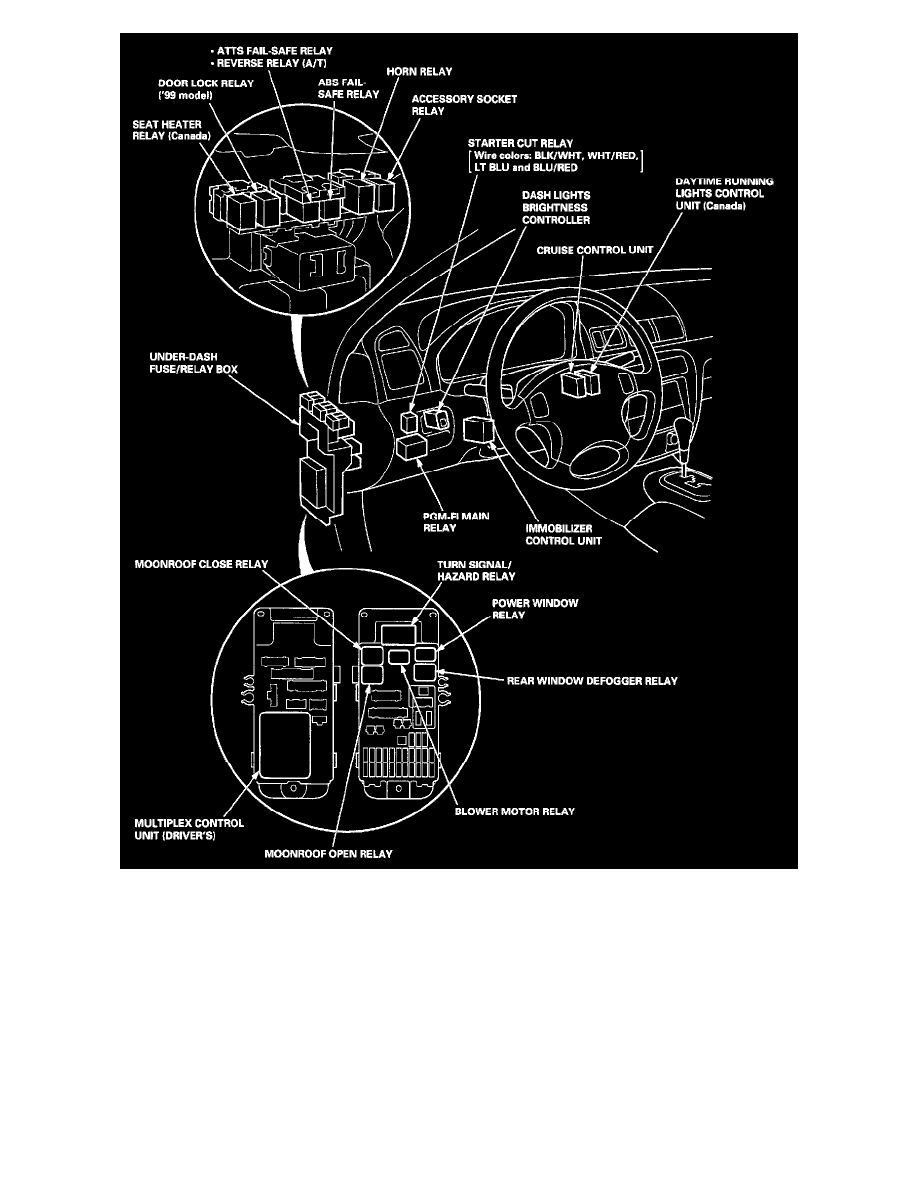

Rear window defogger relay
Type 1:
Rear Window Defogger Relay
Type 2:
