H3 L5-3.7L (2007)
4. Disconnect the electrical connector for the fluid level sensor.
5. Remove the knee bolster panel.
6. Remove the knee bolster bracket.
7. Remove the clevis pin retainer from the clevis pin.
8. Remove the clevis pin from the master cylinder push rod.
Caution: Refer to Brake Fluid Irritant Caution.
Notice: Refer to Brake Fluid Effects on Paint and Electrical Components Notice.
Important: It maybe necessary to relocate or remove some of the wiring harness from their retainers to gain enough clearance to remove
the mounting nuts for the brake master and or the brake master cylinder itself.

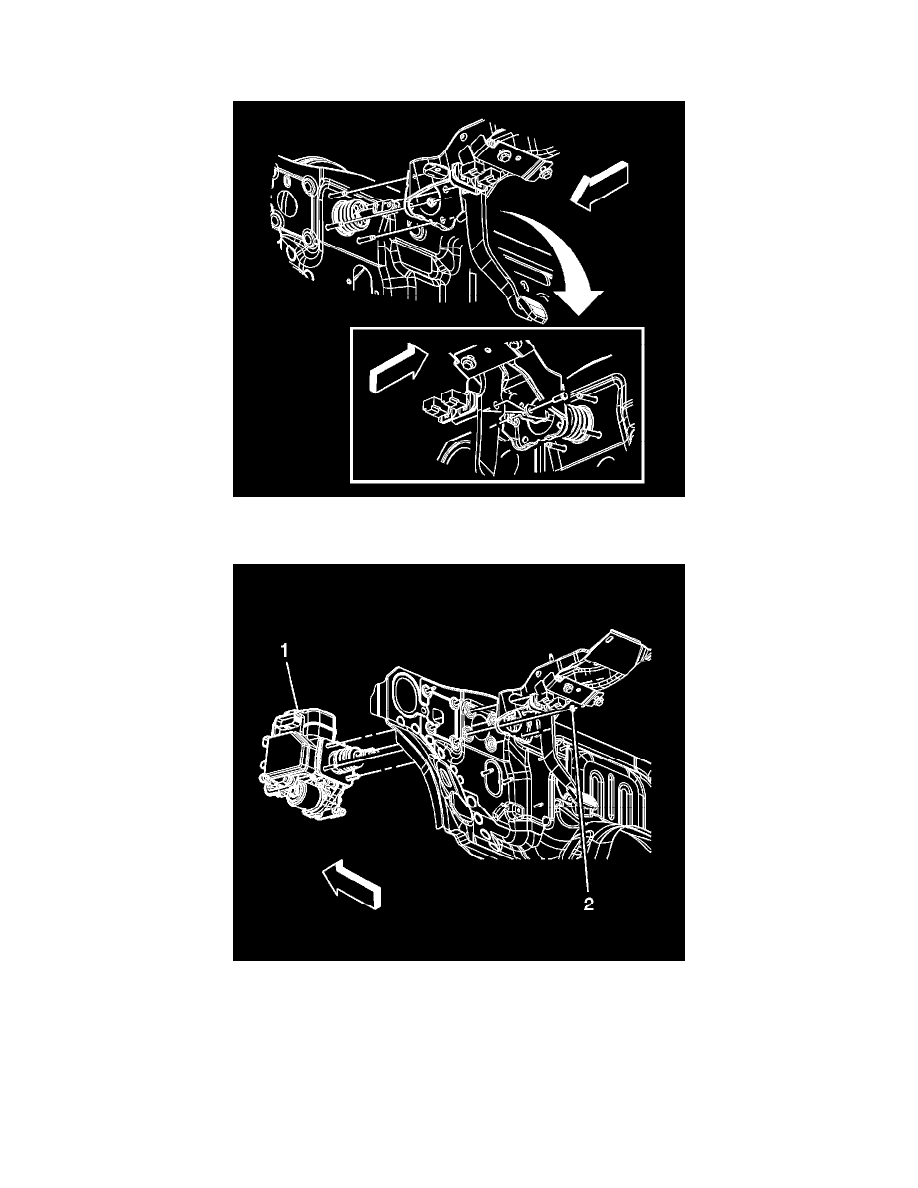

9. Remove the mounting nuts for the brake master cylinder (2).
10. Remove the brake master cylinder assembly (1).
