Santa Fe V6-3.5L (2004)

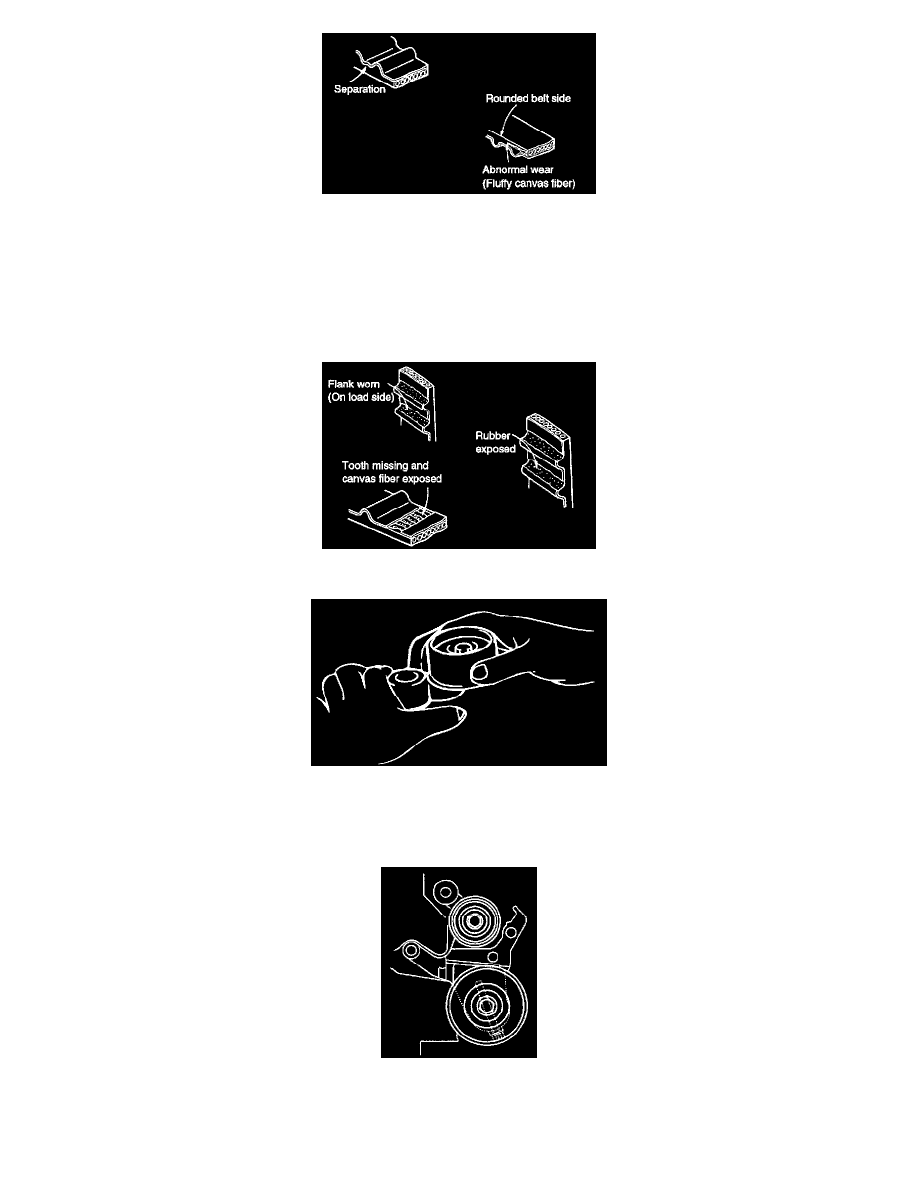

3) Side of belt is badly worn.
NOTE: A belt in good condition should have clear-cut sides as if it were cut with a sharp knife.
4) Teeth are badly worn out.
Initial stage: Canvas on load side of the tooth flank worn (fluffy canvas fibers, rubber gone, color changed to white, and unclear canvas
texture)
Last stage: Canvas on the load side of the tooth flank worn down and rubber exposed (tooth width reduced).
5) Missing tooth
2. If backlash or an irregular noise is observed when rotating the pulley, replace the timing belt tensioner and idler pulley.
INSTALLATION
The meshed of installing timing belt and auto tensioner.
1. Install idler pulley to engine support lower bracket.
