X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1207009.png)

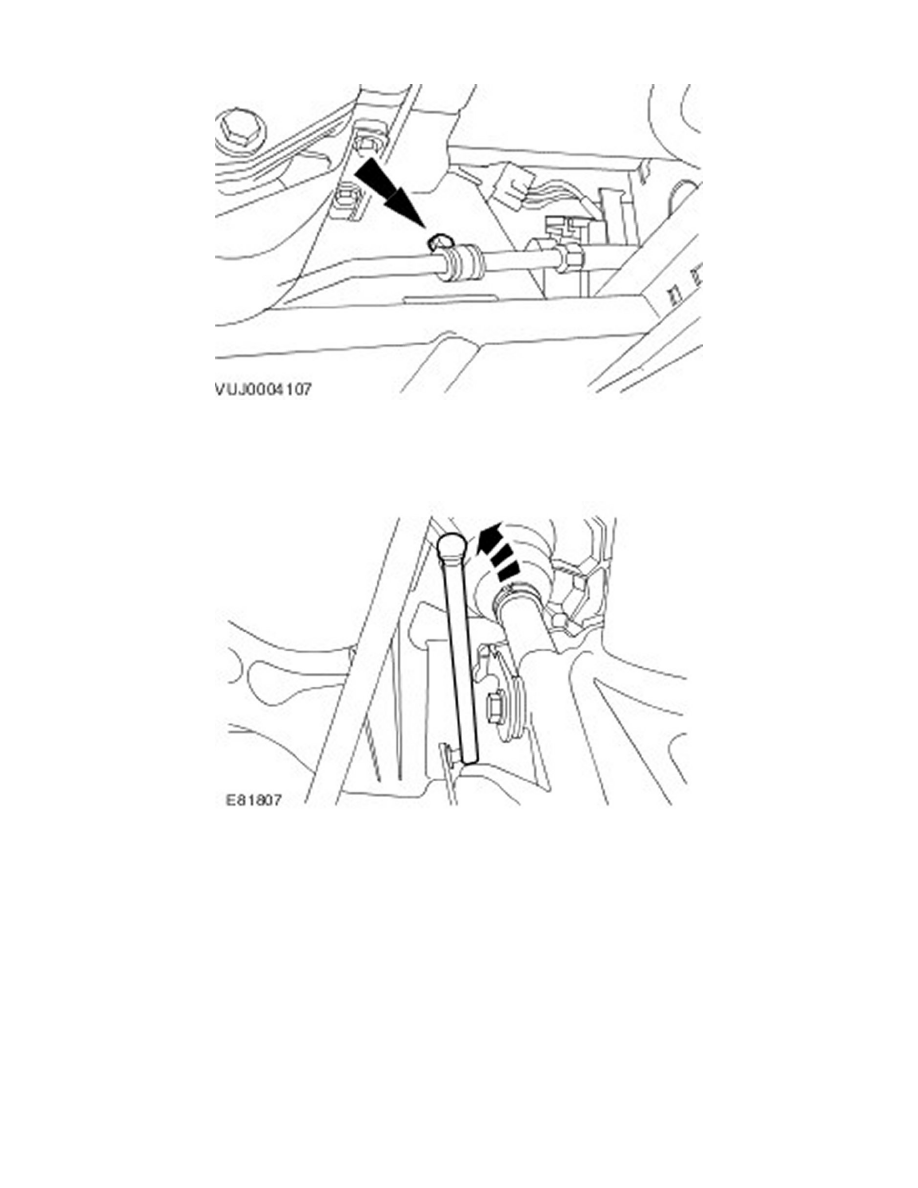

21. Attach the rear of the steering gear cooling pipe.
-
Tighten to 7 Nm.
22. Attach the front of the steering gear cooling pipe.
-
Tighten to 7 Nm.
Vehicles with high intensity discharge headlamps
23. Connect the high intensity discharge (H.I.D) sensor drop arm.
All vehicles
Note: Left-hand shown, right-hand similar.
