X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1821001.png)

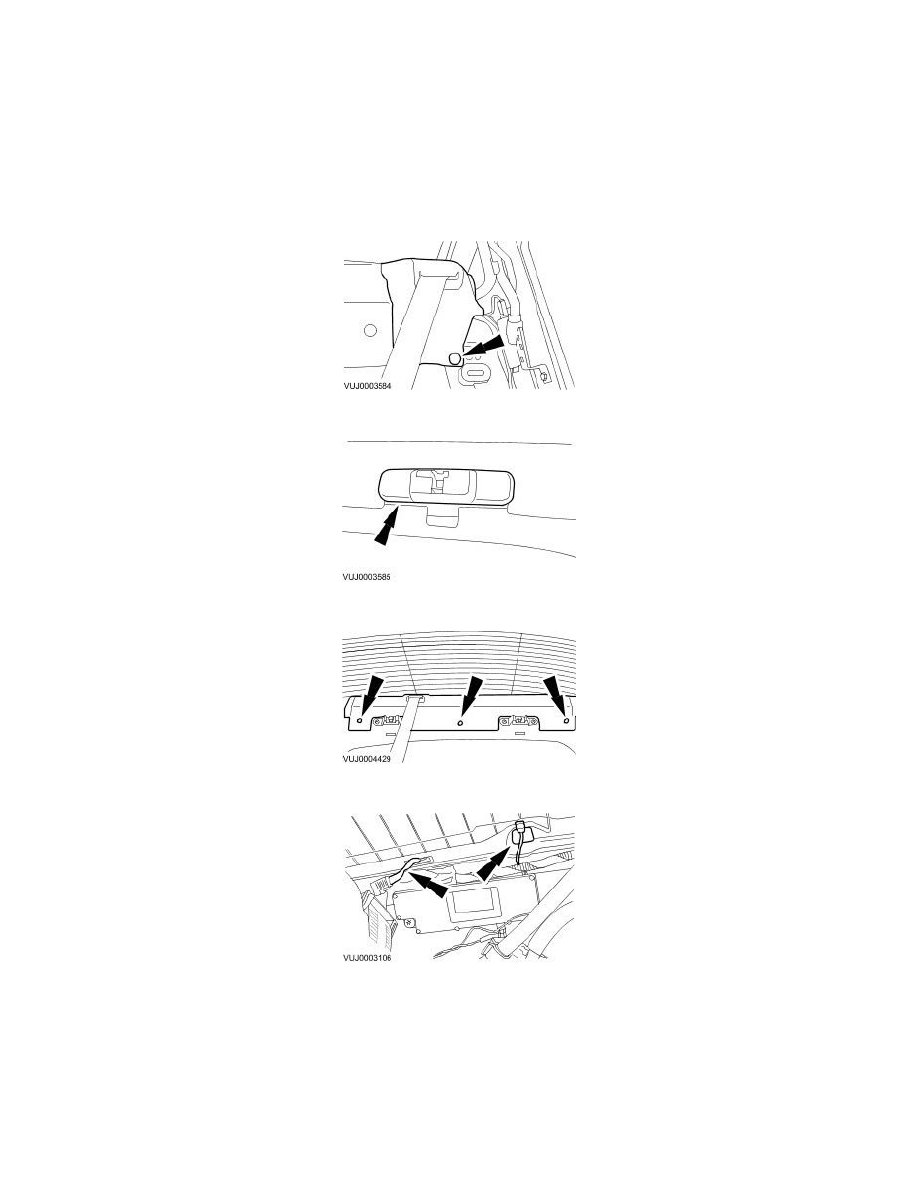

Back Window Glass: Removal and Replacement
Rear Window Glass Using Cheese Wire
Rear Window Glass Using Cheese Wire (76.81.41)
Removal
1. Remove the high level stop lamp.
2. Detach the seat belt reel trim panels.
3. Remove the rear seat backrest latch covers.
4. Detach the parcel shelf trim panel.
5. Disconnect the electrical connectors.
6. Disconnect the electrical connectors.
