Rio5 L4-1.6L (2006)

Page 5
background image

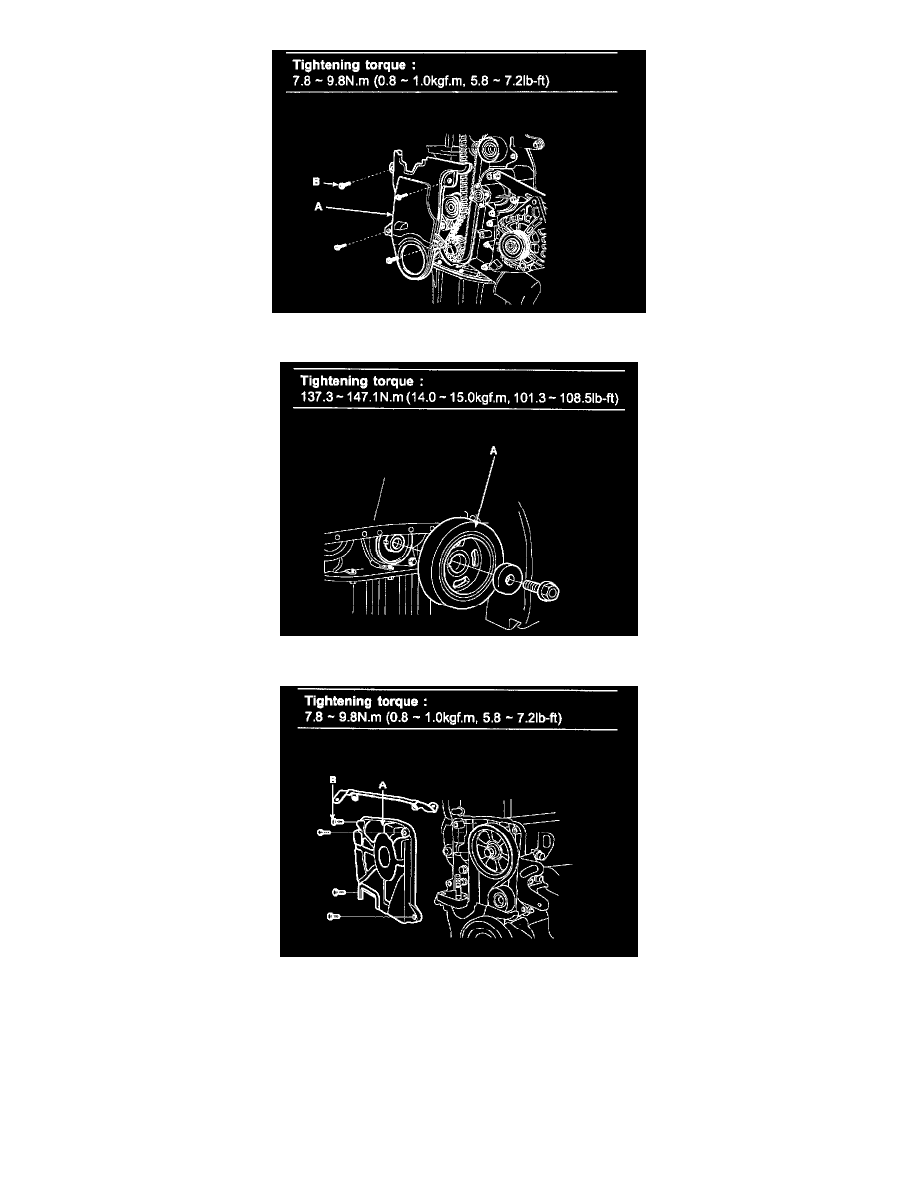

17. Install the crankshaft pulley (A).

18. Install the timing belt upper cover (A) with bolts (B).

19. Install the water pump pulley.
20. Install the power steering pump drive belt (C).
