Sorento 2WD V6-3.3L (2008)

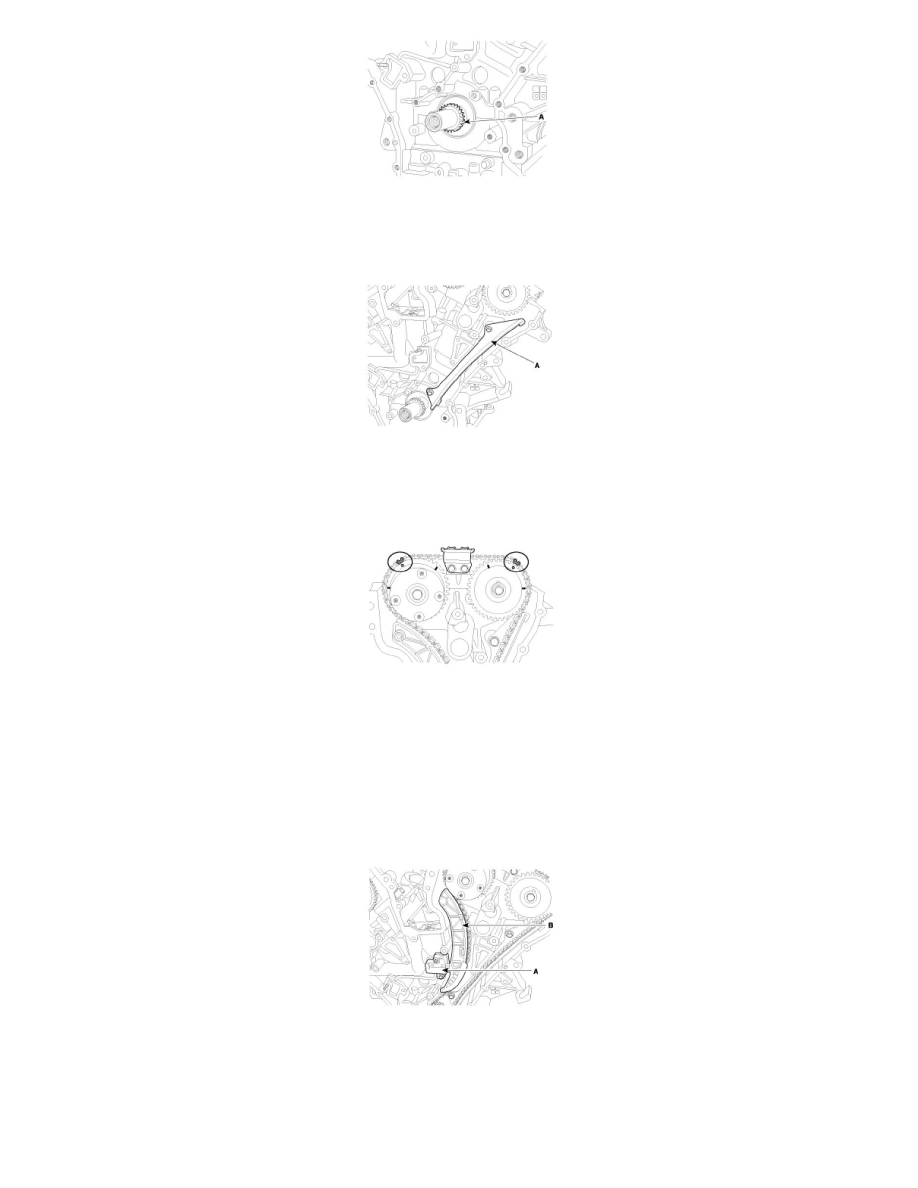

4. Install LH timing chain guide(A).
Tightening torque
19.60 - 24.50Nm(2.0 - 2.5kgf.m, 14.17 - 18.08lb-ft)
5. Install LH timing chain.
To install the timing chain with no slack between each shaft (cam, crank), follow the below procedure.
Crankshaft sprocket(A) -> Timing chain guide(B) -> Exhaust camshaft sprocket(C) -> Intake camshaft sprocket(D).
The timing mark of each sprockets should be matched with timing mark (color link) of timing chain at installing timing chain.
6. Install LH timing chain tensioner arm(B).
Tightening torque
18.62 - 21.56Nm(1.9 - 2.2kgf.m, 13.74 - 15.91lb-ft)
7. Install chain tensioner(A).
Tightening torque
9.80 - 11.76Nm(1.0 - 1.2kgf.m, 7.23 - 8.68lb-ft)
8. Install LH cam-to-cam guide(A).
Tightening torque
9.80 - 11.76Nm(1.0 - 1.2kgf.m, 7.23 - 8.68lb-ft)
