REVERSE AND FOG GUARD LAMP - BULB
RENEWAL
Service repair no - 86.40.90
Remove

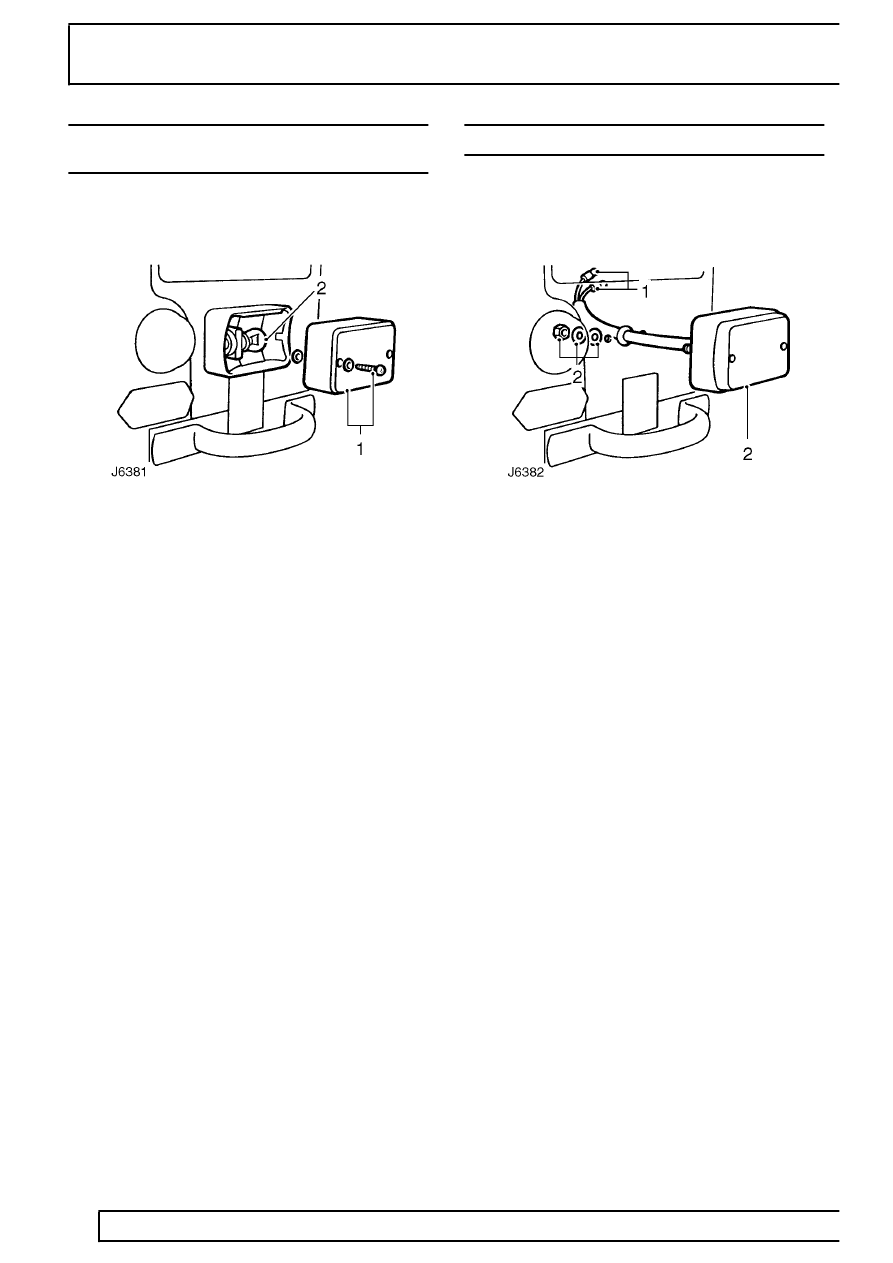

1. Remove two screws with sealing washers and
remove lens from lamp body.
2. Push and twist bulb to release from holder.
3. Clean interior of lamp and lens.
Refit
4. Fit new bulb.
5. Fit lens to lamp body.
REVERSE AND FOG GUARD LAMP
Service repair no - 86.40.91 - Reverse lamp
Service repair no - 86.40.99 - Fog guard lamp
Remove
1. From underneath the vehicle, lift protective flap
and disconnect lamp leads at harness
connectors.
2. Unscrew 2 nuts and washers and withdraw lamp
unit from vehicle.
Refit
3. Feed lamp leads through grommet and locate
lamp studs in vehicle body.
4. Fit retaining nuts and reconnect lamp leads to
vehicle harness.
