Discovery II
AUTOMATIC GEARBOX - ZF4HP22 - 24
REPAIRS
44-33

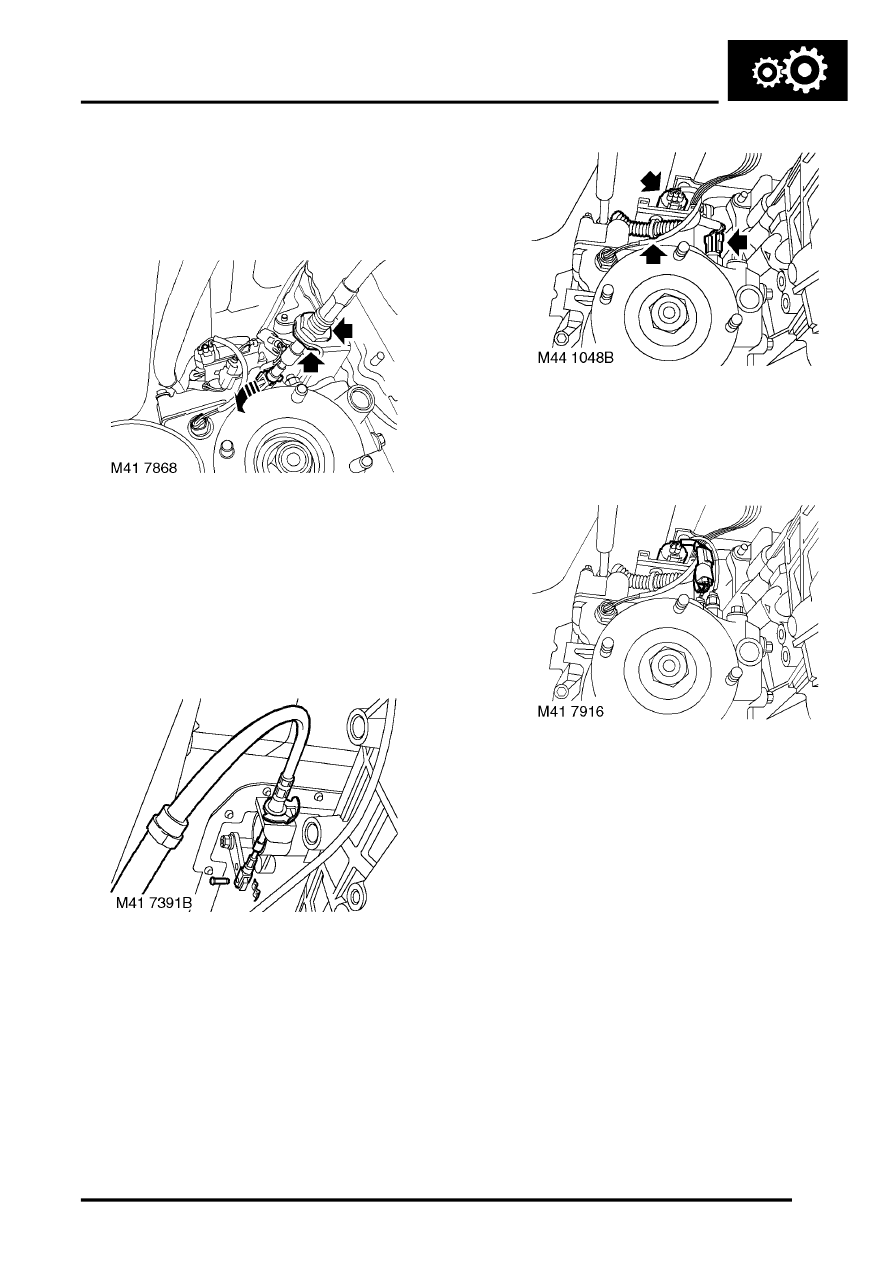

16. Models fitted with high/low shift interlock
solenoid: Release interlock solenoid multiplug
and disconnect multiplug from main harness.
17. Models fitted with high/low shift interlock
solenoid: Remove sleeve retaining rings and
remove sleeve from high/low selector cable.
18. If fitted Remove and discard clevis pin
securing differential lock selector cable to
transfer gearbox.
19. If fitted Loosen locknuts securing differential
lock selector cable to differential lock selector
cable abutment bracket.
20. If fitted Release and remove differential lock
selector cable from differential lock selector
cable abutment bracket.
21. Remove clevis pin securing high/low ratio
selector cable to selector lever, remove 'C' clip
and remove outer cable from abutment bracket
22. Up to 03 Model Year - If fitted: Disconnect 2
Lucars from differential lock switch and
multiplugs from high/low ratio switch and
neutral sensor.
23. 03 Model Year onwards - If fitted: Release
and disconnect both differential lock warning
lamp switch multiplugs from main harness.
24. Release transfer and automatic gearbox
breather pipes from clip at rear of cylinder
block.
