Discovery II
ENGINE MANAGEMENT SYSTEM - V8
18-2-86 REPAIRS
Air cleaner assembly
$% 19.10.01

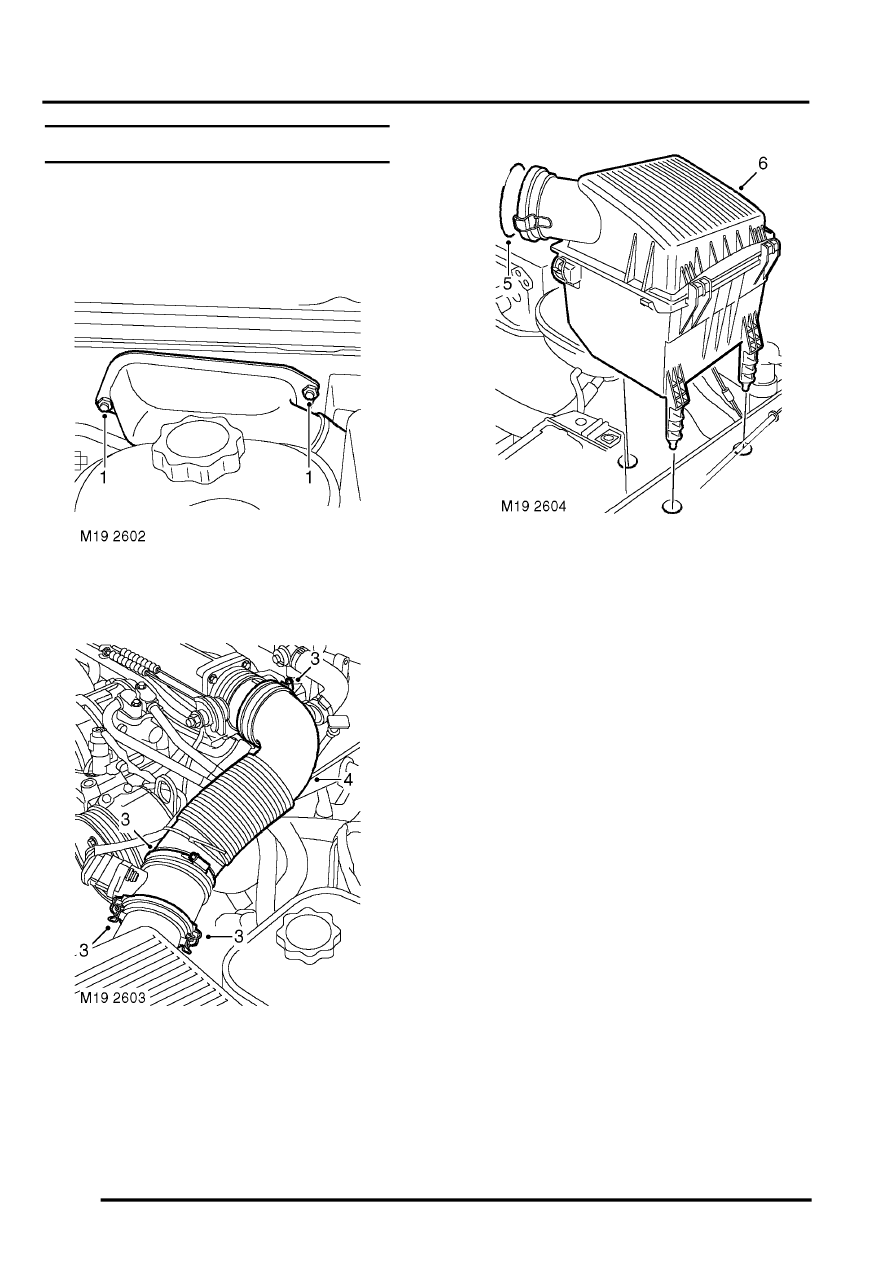

Remove
1. Remove 2 nuts securing air intake ducting.
2. Remove both parts of air intake ducting.
3. Release 2 clips securing MAF sensor, release
2 clips securing air intake hose.
Note: Pre 03 MY air intake hose illustrated.
4. Release air intake hose and position aside.
5. Remove and discard MAF sensor 'O' ring.
6. Release air cleaner assembly from 3
grommets and remove assembly.
Refit
1. Position air cleaner assembly and secure in
grommets.
2. Fit new 'O' ring to MAF sensor.
3. Position air intake hose, secure MAF sensor
clips and tighten intake hose clips.
CAUTION: Ensure MAF sensor 'O' ring is
not displaced during fitting.
4. Fit air intake ducting and secure with nuts.
