Discovery II
ENGINE - V8
REPAIRS 12-2-23
Mounting - front - RH
$% 12.45.03
Remove
1. Release turnbuckles and remove battery cover.
2. Disconnect battery earth lead.
3. Raise front of vehicle.
WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.
4. Remove underbelly panel.
5. Position a jack beneath the sump, and support
the engine on the jack.
CAUTION: To prevent damage to
components, cushion the jack pad with a
block of wood or hard rubber.

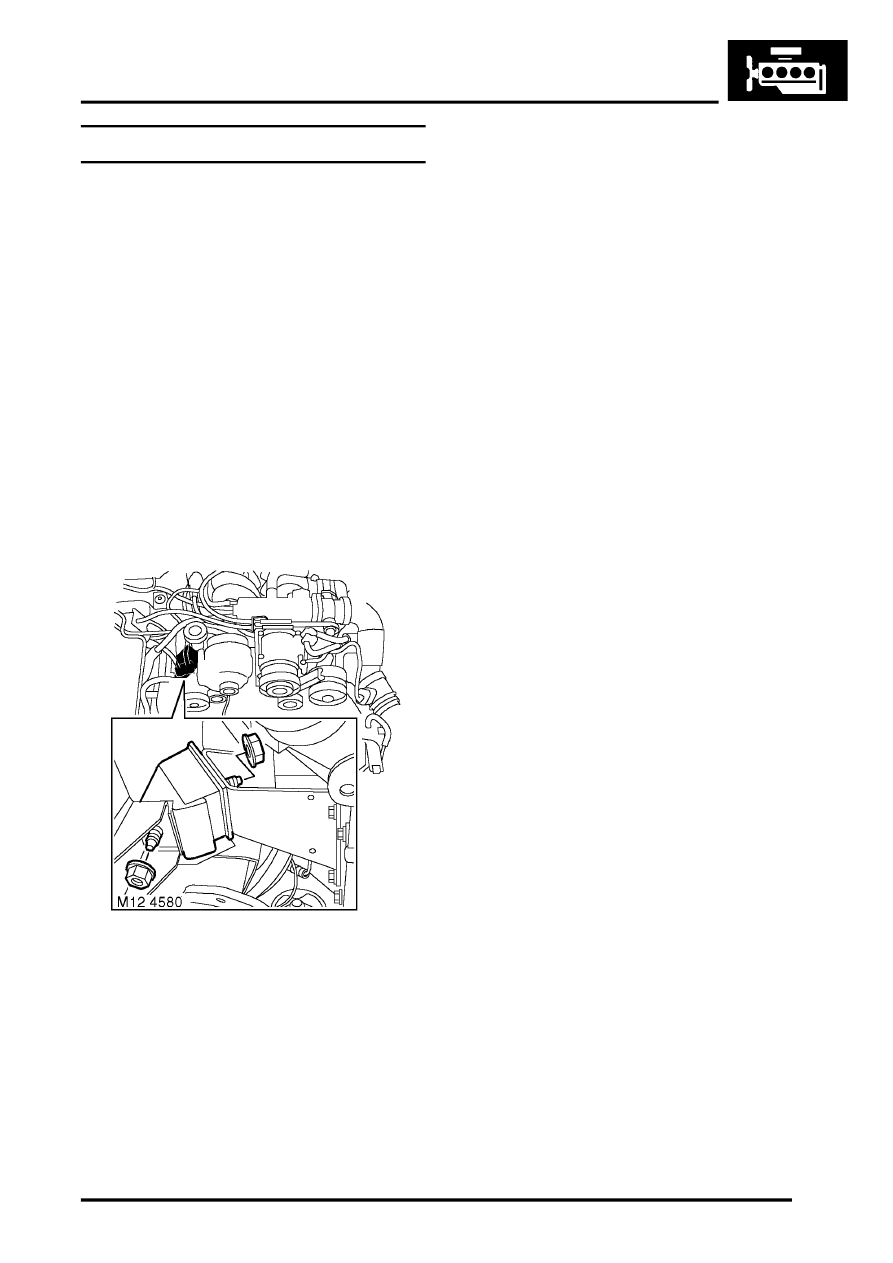

6. Remove 2 nuts securing engine mountings to
chassis.
7. Remove nut securing RH mounting to cylinder
block.
8. Raise engine sufficiently to allow engine
mounting to be removed. Take care not to trap
any cables, pipes or harness.
9. Remove engine mounting.
10. Collect heat shield.
Refit
1. Position heat shield.
2. Fit engine mounting ensuring dowel is located.
3. Lower the jack and engage engine mounting
studs in chassis.
4. Fit engine mounting nuts and tighten to 85 Nm
(63 lbf.ft).
5. Fit underbelly panel.
6. Remove stand(s) and lower vehicle.
7. Connect battery earth lead.
8. Fit battery cover and secure turnbuckles.
