MANUAL GEARBOX - R380
37-18
REPAIRS

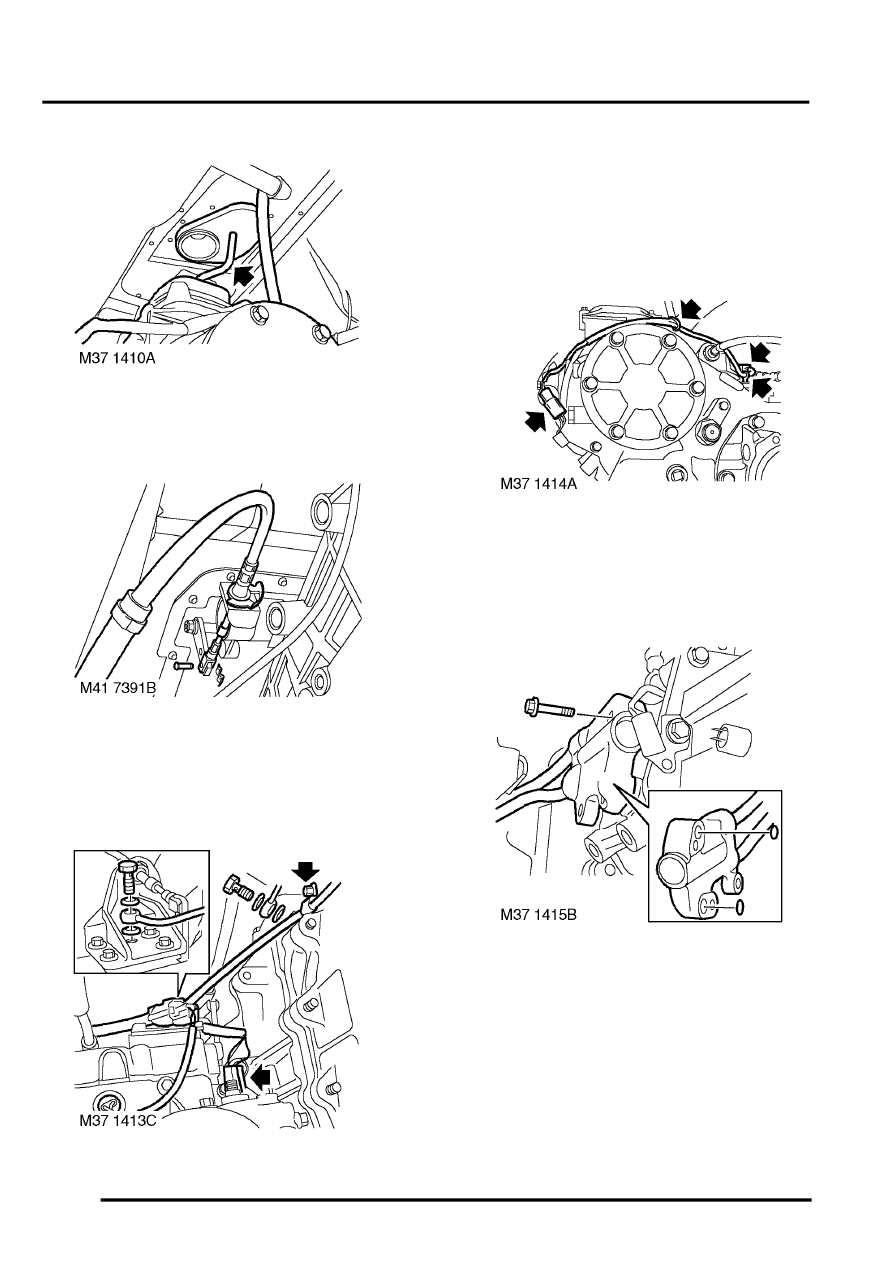

22. Ensure gear lever is released from grommet
and no wires or pipes are trapped when
gearbox is lowered.
23. Remove clevis pin and 'C' washer securing low
ratio selector cable to lever and release cable
from lever housing.
24. Remove 2 cable ties securing cable to fuel
pipes.
25. Disconnect 2 Lucars from oil temperature
sensor and disconnect reverse lamp switch
multiplug.
26. Remove banjo bolts securing breather pipes
and discard sealing washers.
27. Remove bolt securing breather pipe 'P' clip and
release breather pipes.
28. If fitted: Disconnect 2 Lucars from differential
lock switch, release and disconnect transfer
box neutral sensor multiplug. Release harness
from 2 retaining clips.
29. Position container to catch oil spillage
30. Remove 2 bolts securing oil cooling pipe
housing to gearbox, release housing and
discard 'O' rings.
CAUTION: Always fit plugs to open
connections to prevent contamination.
31. Using a second jack support the weight of the
engine.
