Discovery II
SEATS
REPAIRS 76-5-27
4. Release outer cable from seat frame bracket
and disconnect inner cable from lower
quadrant.

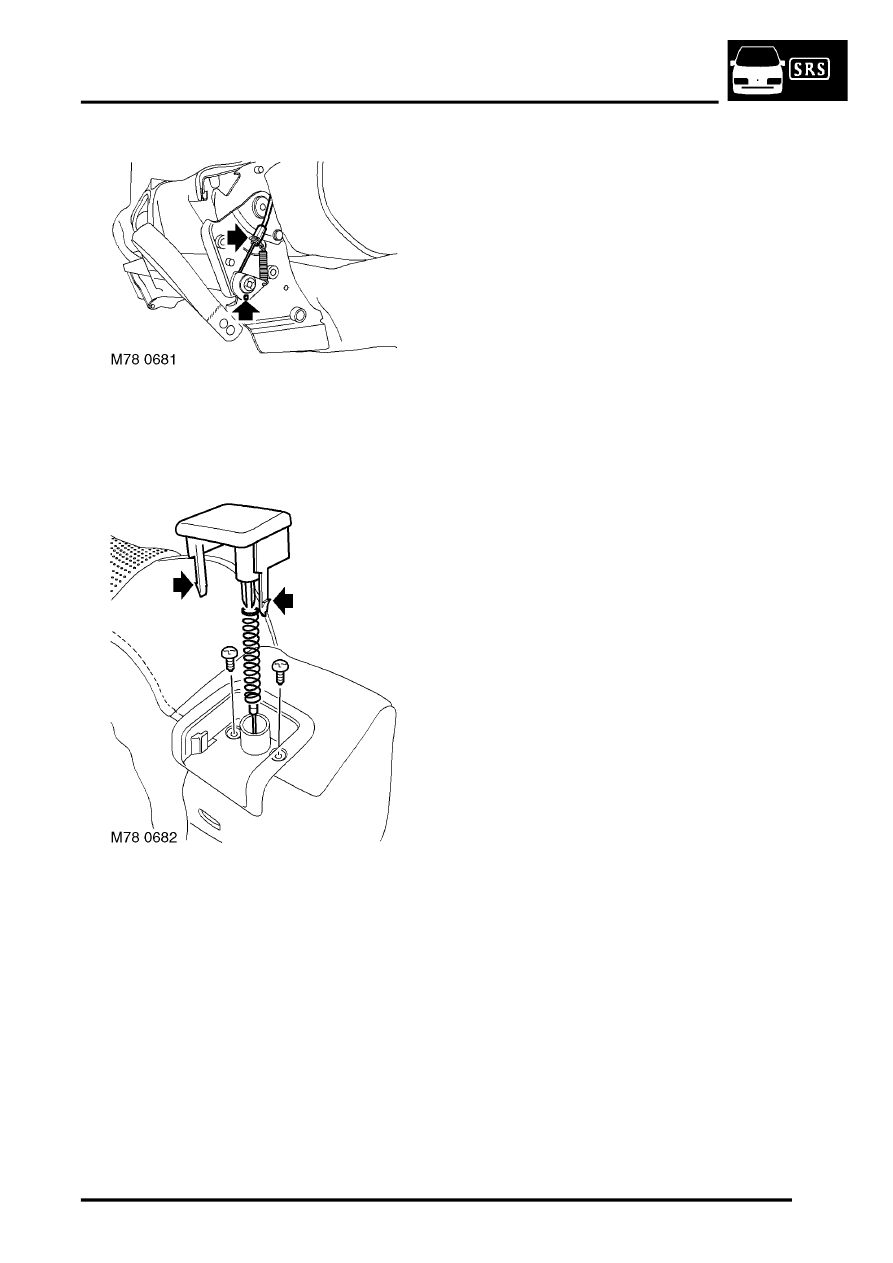

5. Carefully release 2 clips securing seat latch to
housing.
6. Compress spring to access release cable,
disconnect cable nipple from latch and remove.
7. Remove 2 screws securing squab release latch
housing to seat assembly.
8. Remove squab latch housing from seat
assembly.
9. Remove cable assembly from squab latch
housing.
Refit
1. Fit and secure seat squab release cable to
latch housing.
2. Fit and secure cable and latch housing to seat
assembly with screws.
3. Connect inner cable to lower quadrant.
4. Clip outer cable into seat frame bracket.
5. Fit and secure rear seat back board.
6. Fit and secure seat end cover with screws.
