Discovery II
WIPERS AND WASHERS
84-26
REPAIRS
Switch - wiper and washer - windscreen
$% 84.15.34
WARNING: It is imperative that before any work
is undertaken on the SRS system the appropriate
information is read thoroughly.
Remove
1. Remove rotary coupler.
2. Release passive coil from steering column lock
and lower the coil without disconnecting the
harness.

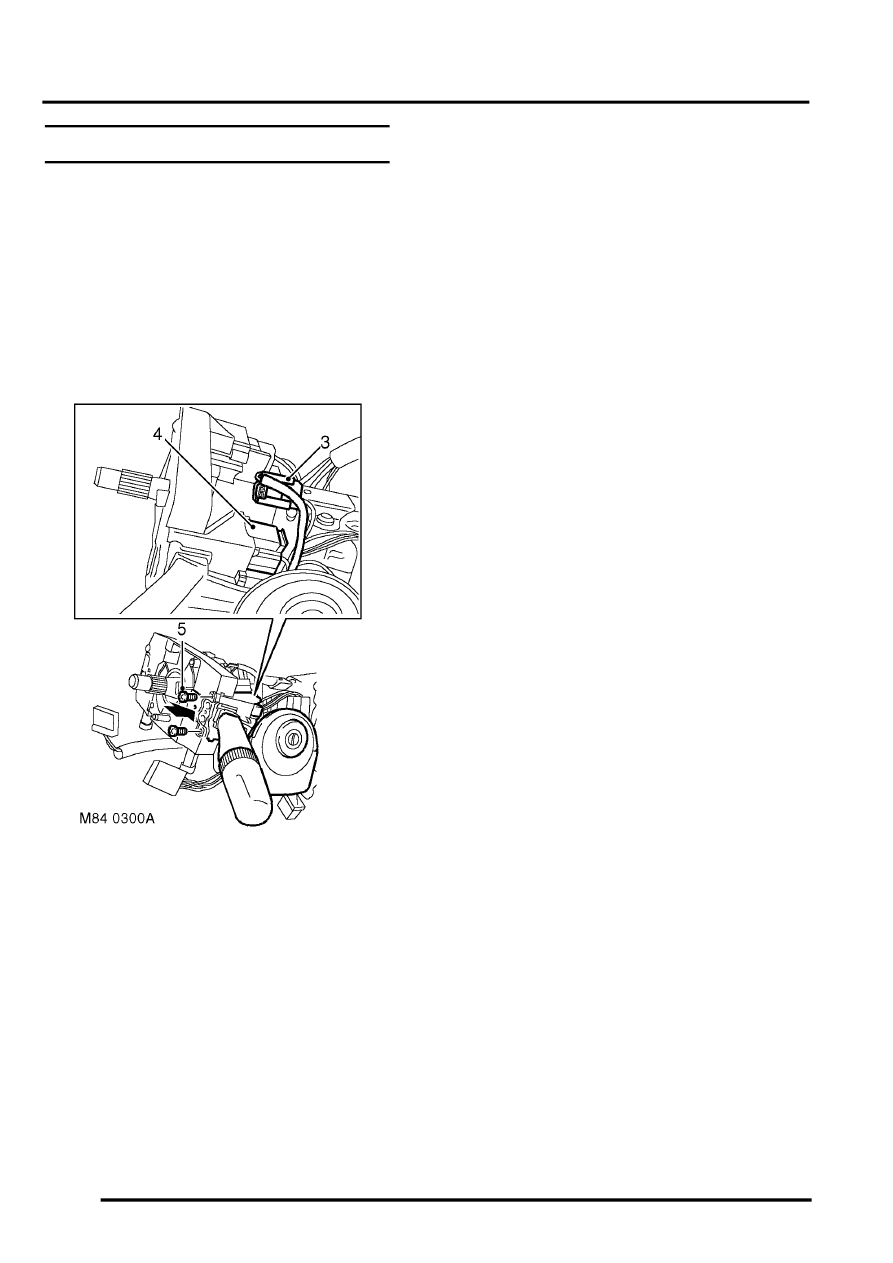

3. Release front wiper delay multiplug from
column switch mounting bracket and
disconnect from harness.
4. Disconnect harness multiplug from wiper
switch.
5. Remove 2 screws securing switch, carefully
raise edge of switch bracket to clear location
peg and remove switch.
Refit
1. Fit new switch to bracket and secure with
screws.
2. Connect harness multiplug to switch.
3. Connect front wiper delay multiplug and fit
multiplug to switch bracket.
4. Fit passive coil to column lock.
5. Fit rotary coupler.
