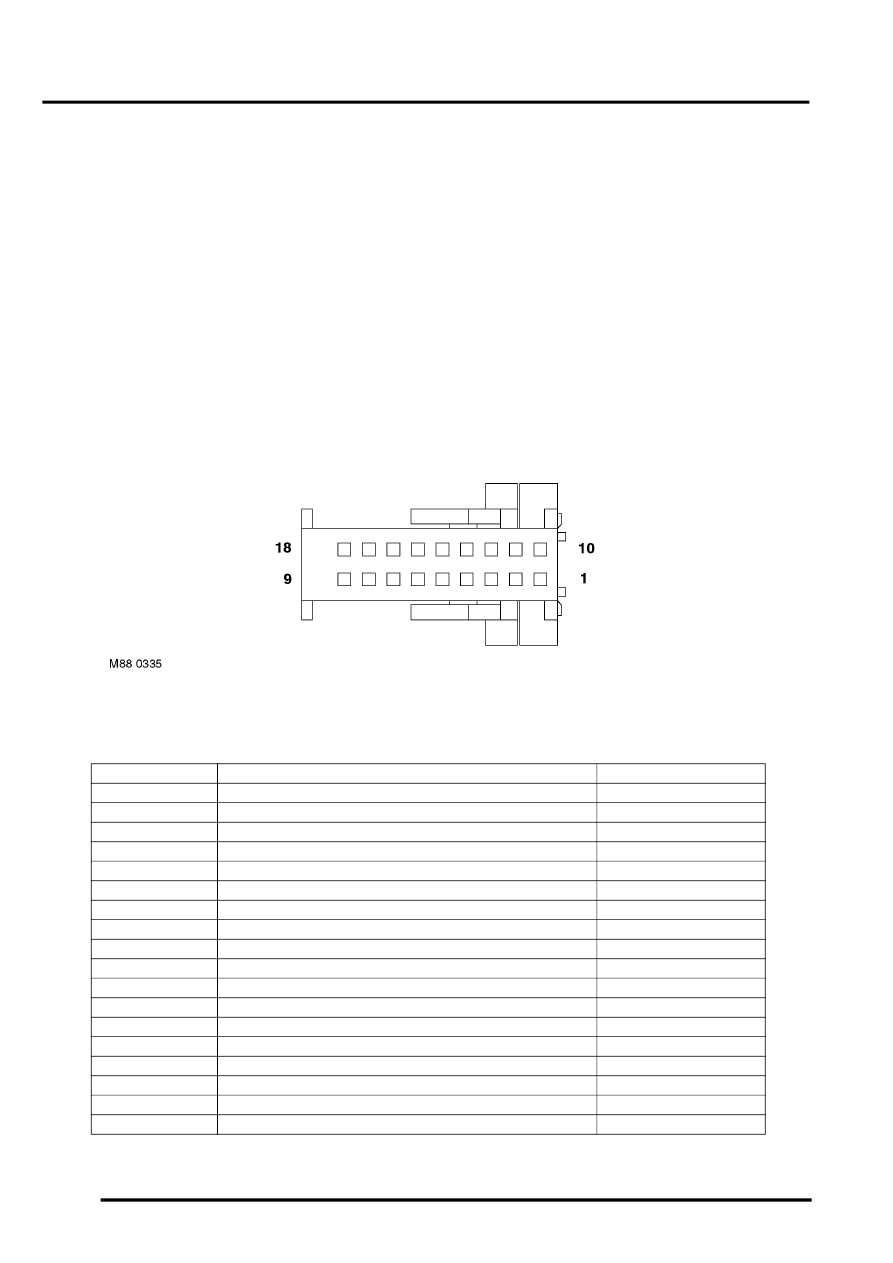

Connector C0230
The following table shows pin inputs/outputs for connector C0230.
Pin No.
Description
Input/Output
1
Seat belt warning signal
Input
2
Not used
-
3
Not used
-
4
Engine speed signal
Input (PWM)
5
Cruise active signal
Input (digital)
6
Not used
-
7
1st gear input (manual gearbox only)
Input (digital)
8
A/C pressure sensor (power supply)
Output
9
A/C pressure sensor signal (System pressure)
Input (analogue)
10
A/C pressure sensor earth
Output
11
Diagnostic ISO 9141 K Bus (serial)
Input/Output
12
CAN + (serial)
Input/Output
13
CAN + (serial)
Input/Output
14
Rear fog lamp active signal
Input
15
Trailer lamp failure signal
Input
16
Not used
-
17
Not used
-
18
Not used
-
19
Not used
-
20
A/C evaporator temperature signal
Input (analogue)
21
Fuel level sender signal
Input (analogue)
22
Not used
-
23
Permanent battery supply (13.4 V nominal)
Input
24
Earth
Input
25
CAN – (serial)
Input/Output
26
CAN – (serial)
Input/Output
