Freelander Service Procedures
AIR CONDITIONING
REPAIRS
82-13
Refit
1. Lubricate new 'O' rings, dust shield and
condenser thread with refrigerant oil.
2. Fit 'O' rings and dust shield to receiver drier.
CAUTION: Do not remove receiver/dryer
from packaging until immediately before
installation.
3. Fit receiver drier to condenser and tighten to 12
Nm (9 lbf.ft).
4. Tighten clamps securing receiver drier to
condenser.
5. If fitted, fit air deflector and secure with scrivets.
6. Td4 models: Fit intercooler.
FUEL DELIVERY SYSTEM - DIESEL,
7. Up to 04MY: Position armature, fit and tighten
4 nuts and bolts securing armature to body to
25 Nm (18 lbf.ft).
8. 04MY on: Position armature, fit bolts securing
armature to crash cans and tighten bolts to 25
Nm (18 lbf.ft).
9. KV6 models: Align PAS fluid cooler and
tighten bolts to 8 Nm (6 lbf.ft).
10. Fit bumper valance.
Bumper - assembly - front - up to 04MY.
11. Recharge A/C system.
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
12. Connect battery earth lead.
Switch - control
$% 82.20.07
Remove

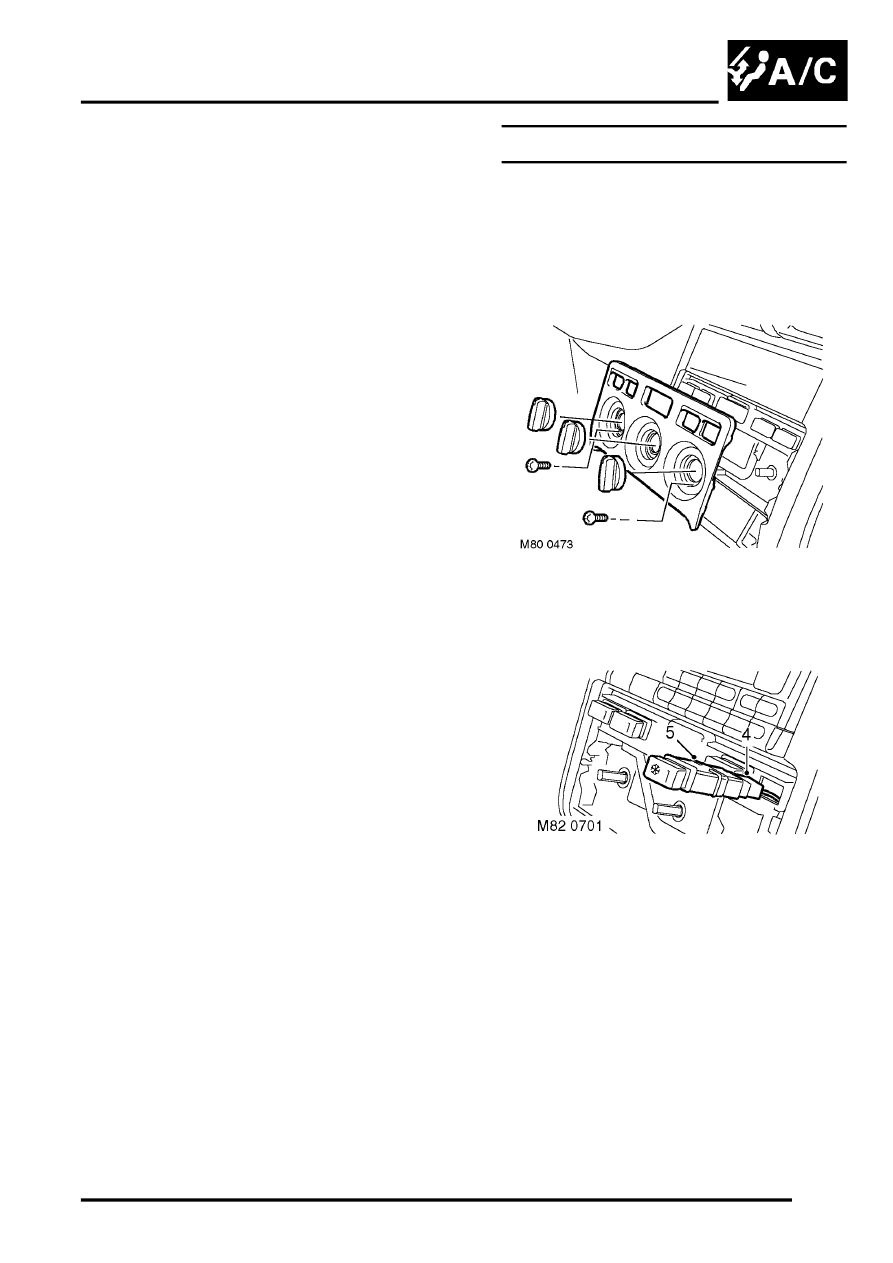

1. Remove radio.
2. Remove 3 heater control knobs.
3. Remove 2 screws securing heater control
finisher to heater controls and remove finisher.
4. Disconnect multiplug from A/C control switch.
5. Remove switch from heater controls.
Refit
1. Fit A/C control switch and connect multiplug.
2. Fit heater control finisher and secure with
screws.
3. Fit heater control knobs.
4. Fit radio.
