SECURITY
DESCRIPTION AND OPERATION 86-5-11

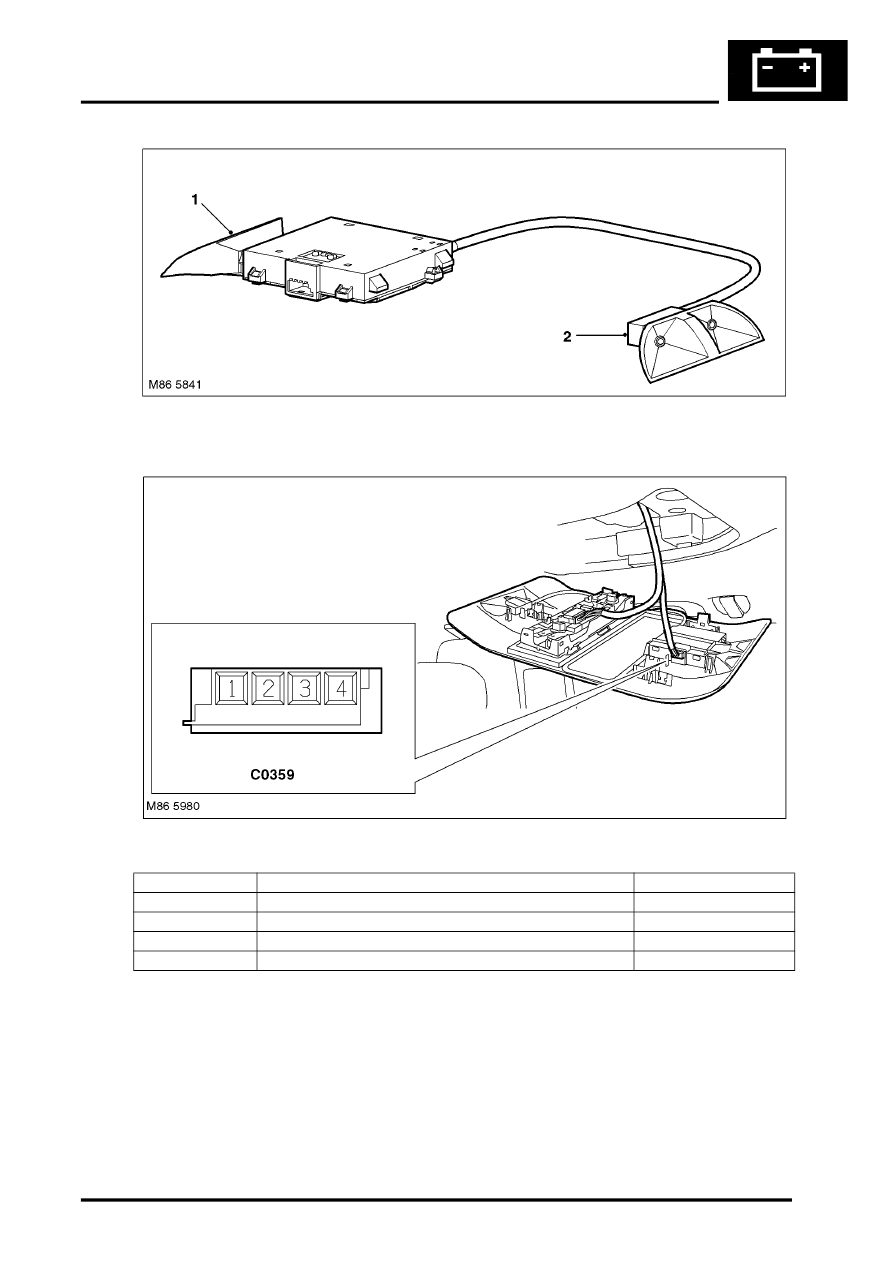

Volumetric Sensor
1 Front transmitter/receiver pair
2 Rear transmitter/receiver pair
Volumetric Sensor Harness Connector
Volumetric Sensor Harness Connector C0359 Pin Details
Pin No.
Description
Input/Output
1
Ground
–
2
Arm/Disarm signal
Input
3
Alarm indication
Output
4
Battery power supply
Input
