L322 Range Rover Service Procedures
BRAKES
REPAIRS
70-23
Vacuum pump - Td6
$% 70.50.19
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
Remove
1. Disconnect battery earth lead.
2. Remove engine access cover.
ENGINE - Td6, REPAIRS, Cover -

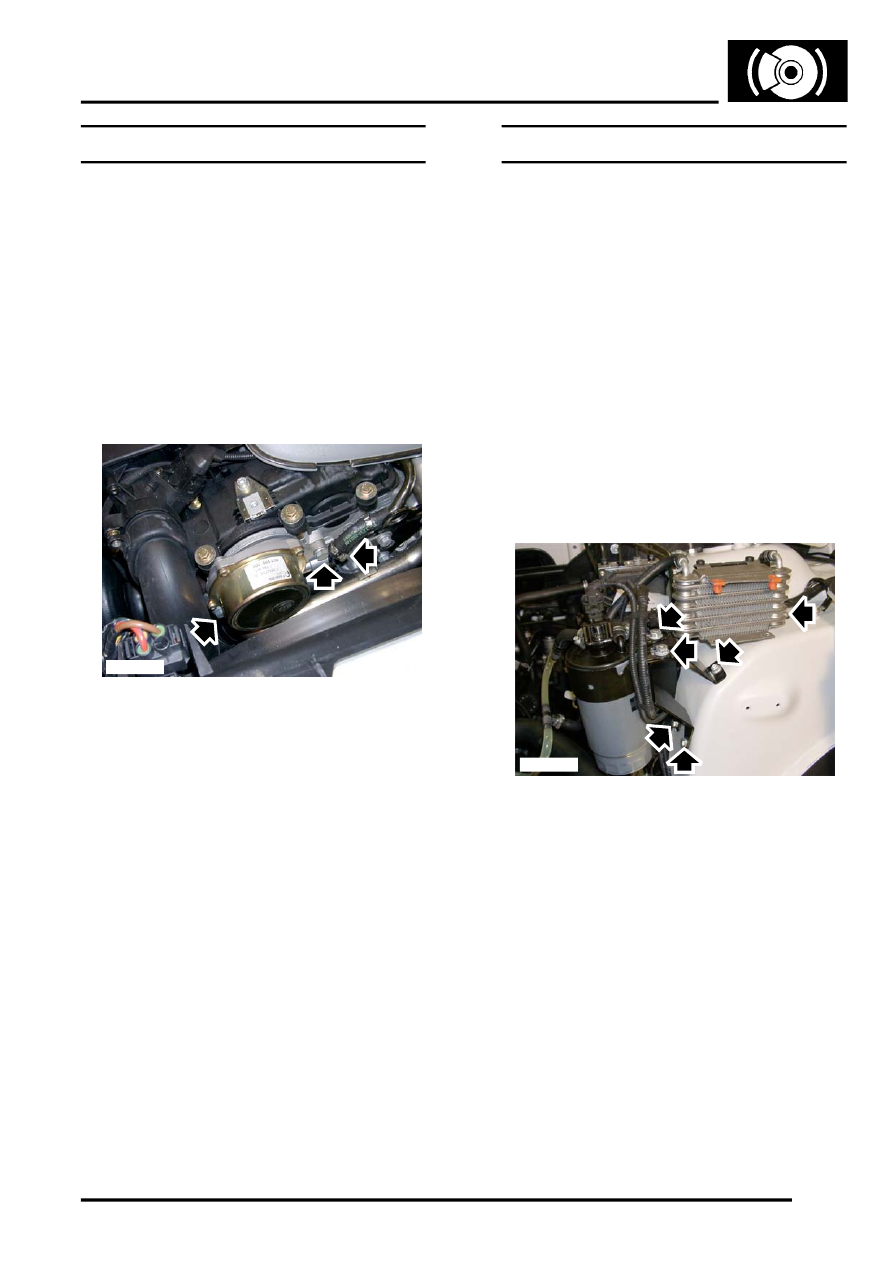

3. Release clip and disconnect hose from vacuum
pump.
4. Remove and discard 2 bolts securing vacuum
pump.
5. Remove vacuum pump and discard 'O' ring.
Refit
1. Clean vacuum pump and mating face.
2. Fit new 'O' ring to vacuum pump.
3. Rotate vacuum pump drive to align with
camshaft, fit pump and tighten new bolts to 22
Nm (16 lbf.ft).
4. Connect hose to vacuum pump and secure with
clip.
5. Fit engine access cover.
ENGINE - Td6, REPAIRS, Cover -
6. Connect battery earth lead.
ABS Electronic control unit (ECU)
$% 70.65.01
If the ECU is to be replaced then Testbook/T4 must
be connected and correct procedures adhered to,
prior to battery disconnection.
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
Remove
1. Disconnect battery earth lead.
2. Remove 2 screws securing fuel cooler intake
duct to fuel cooler.
3. Remove 2 bolts securing fuel cooler intake duct
to bonnet locking platform.
4. Remove fuel cooler intake duct.
5. Loosen 2 nuts securing fuel filter clamp,
release and place fuel filter and clamp
assembly aside.
6. Remove nut and 3 bolts securing fuel filter/
cooler bracket assembly and move aside.
M70 1130
M70 1165
