ENGINE - V8
REPAIRS 12-2-59

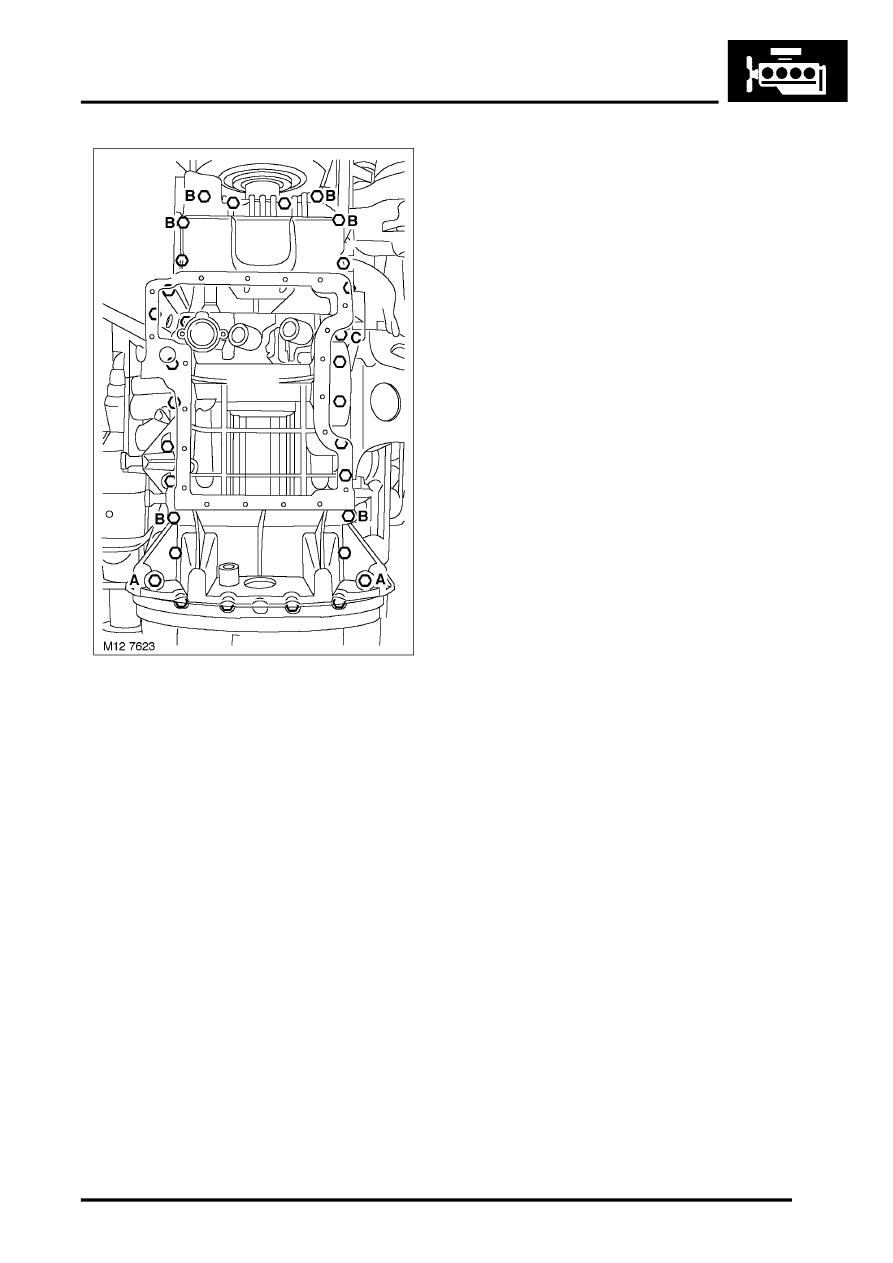

10. Remove 31 bolts securing oil sump to engine
cylinder block, note position of bolts as lengths
vary.
l
A=M8 x 60 mm
l
B=M6 x 80 mm
l
C=M6 x 40 mm
l
All remaining bolts are M6 x 20 mm
11. Remove oil sump and discard gasket.
Refit
1. Clean oil sump and gasket mating faces.
2. Fit new gasket to sump, position sump to
cylinder block, fit bolts but do not tighten at this
stage.
3. Tighten 31 bolts securing upper oil sump to
cylinder block, M6 x 8.8 mm to 10 Nm (7 lbf.ft),
M6 x 10.9 mm to 12 Nm (9 lbf.ft) and M8 x 8.8
mm to 22 Nm (16 lbf.ft).
NOTE: Note position of 6 mm bolts as they are
two different lengths.
4. Fit 4 Torx bolts securing oil sump to bell
housing and tighten to 53 Nm (39 lbf.ft)

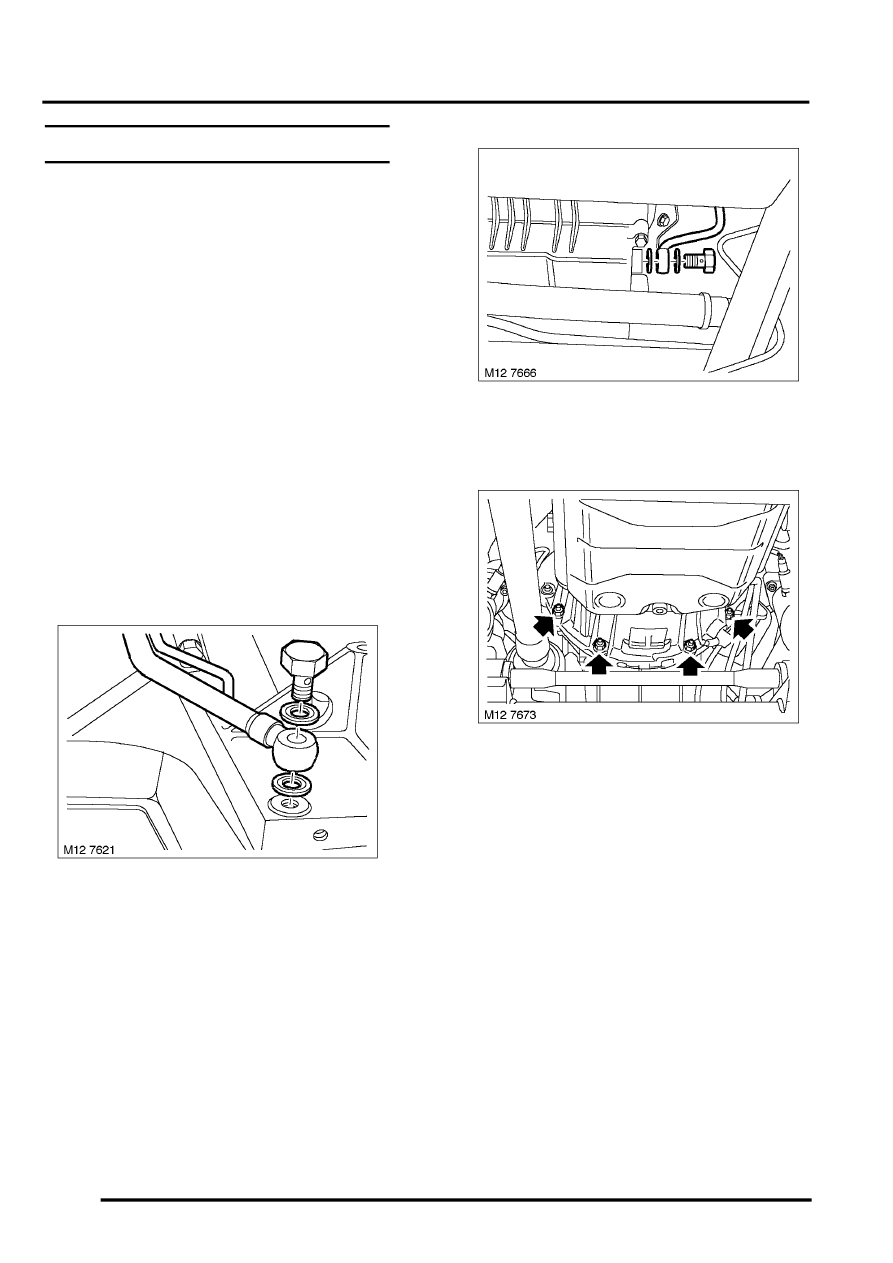

5. Fit 2 new sealing washers, fit banjo bolt
securing engine oil filter return pipe to oil sump
and tighten to 30 Nm (22 lbf.ft).
6. Fit differential.
7. Fit oil pick-up strainer.
Engine - V8, REPAIRS, Strainer - oil
8. Fit PAS pump.
STEERING, REPAIRS, Pump - power
9. Fit dipstick tube.
10. Connect battery earth lead.
