FRONT SUSPENSION
60-8
REPAIRS
9. Remove nut from track rod end.
10. Fit an M14 nut to ball pin, flush with end of pin.

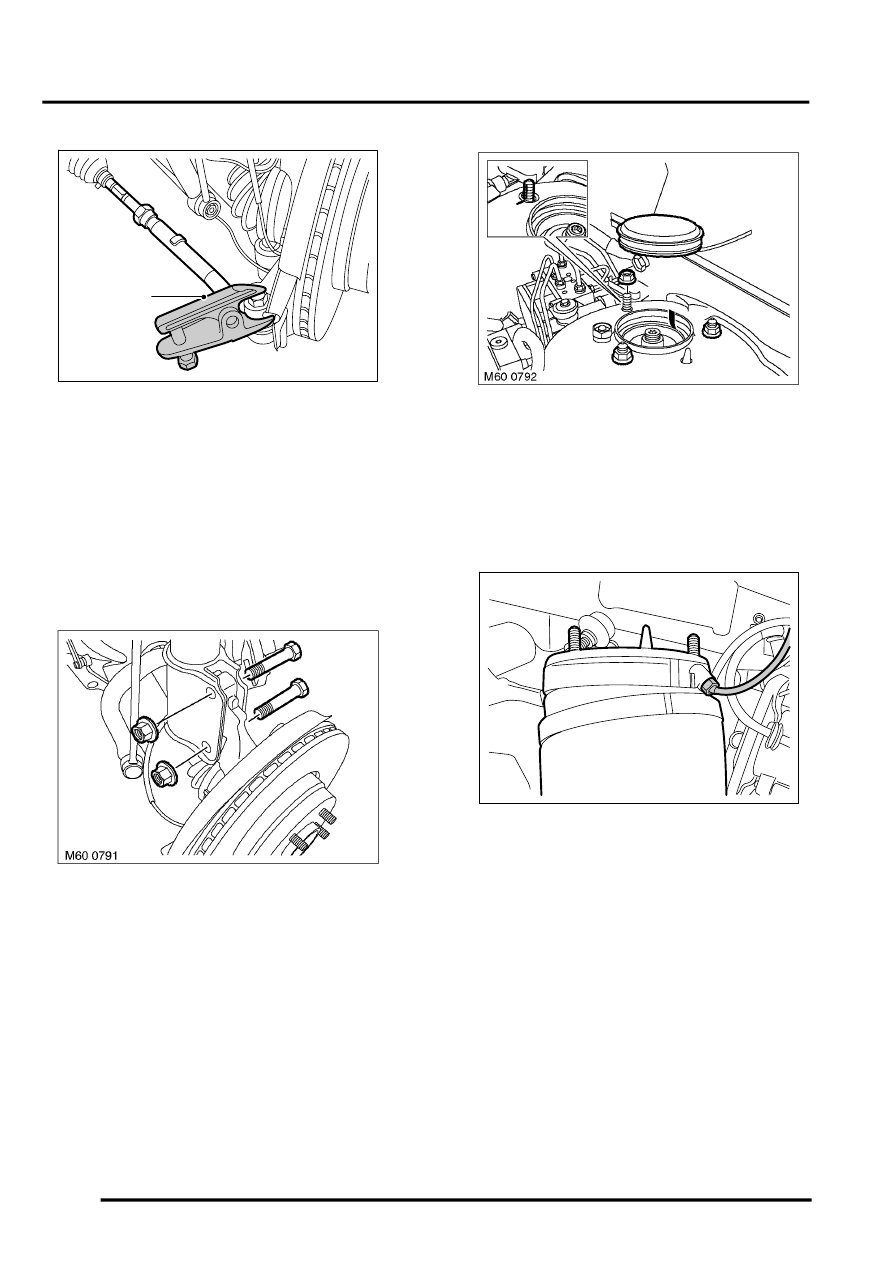

11. Using LRT-57-036 separate ball pin from
steering arm. Remove M14 nut and release ball
pin from steering arm.
CAUTION: Ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.
12. Position jack to support the lower arm.
13. Remove 2 nuts and bolts securing hub to
damper.
14. Release hub from damper and lower arm,
sufficiently to clear damper.
15. Remove cap from top mounting.
16. Remove inboard nut securing spring and
damper assembly and mark relationship
between stud and turret for refitting reference.
17. Remove 2 remaining nuts, release spring and
damper assembly and lower sufficiently for
access to air pipe connection.
18. Remove connector from air spring.
CAUTION: Always fit plugs to open
connections to prevent contamination.
19. Remove spring and damper assembly.
20. Remove and discard paper gasket from spring
and damper assembly.
Refit
1. Clean spring and damper location.
CAUTION: Check air spring for signs of
damage. If air spring is damaged, it must be
replaced.
2. If fitting a new spring and damper assembly,
remove air connector from new assembly.
3. Fit new paper gasket to spring and damper
assembly.
