FRONT SUSPENSION
60-24
REPAIRS
4. Disconnect pipe from air reservoir.
CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.
5. Noting their fitted positions, disconnect 4 pipes
from valve block.
6. Remove 3 nuts securing valve block.
7. Release valve block, depress locking ring and
disconnect compressor feed pipe.

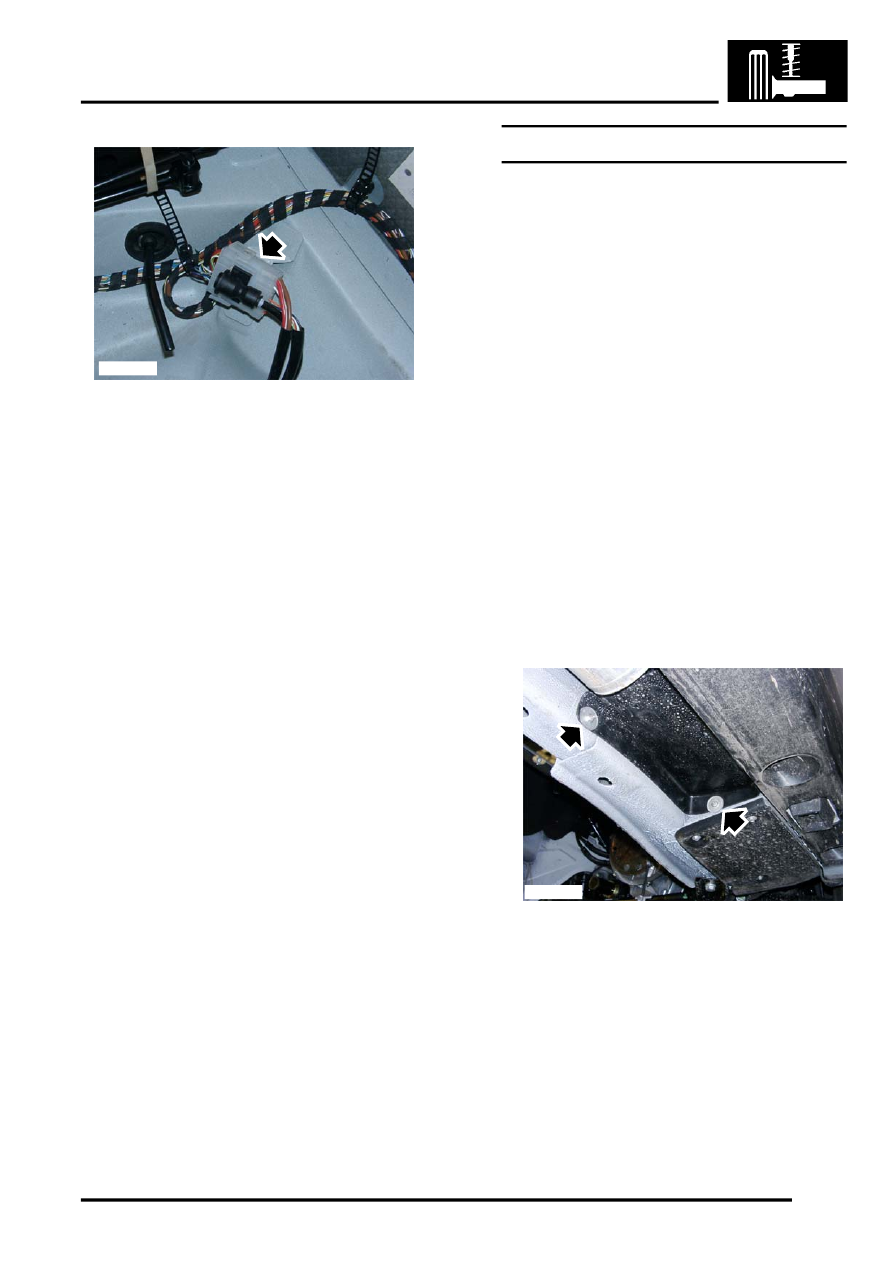

8. Disconnect 3 multiplugs and remove valve
block.
NOTE: Do not carry out further dismantling if
component is removed for access only.
9. Remove pipe from valve block.
Refit
1. If fitting a new valve block, remove Voss
connectors from new block.
2. Fit pipe to valve block but do not fully tighten
union at this stage.
CAUTION: Ensure air pipe connections are
clean.
3. Position valve block, connect multiplugs and
compressor feed pipe.
4. Locate valve block and fit and tighten nuts.
5. Connect pipes to valve block and tighten
unions to 3.5 Nm (2.6 lbf.ft).
6. Connect pipe to air reservoir and tighten both
unions to 3.5 Nm (2.6 lbf.ft).
7. Fit closing panel and secure with speed nuts.
8. Pressurise suspension.
ADJUSTMENTS, Air suspension system -
depressurise and repressurise.
9. Remove stands and lower vehicle.
M60 0802
