GENERAL INFORMATION
03-27

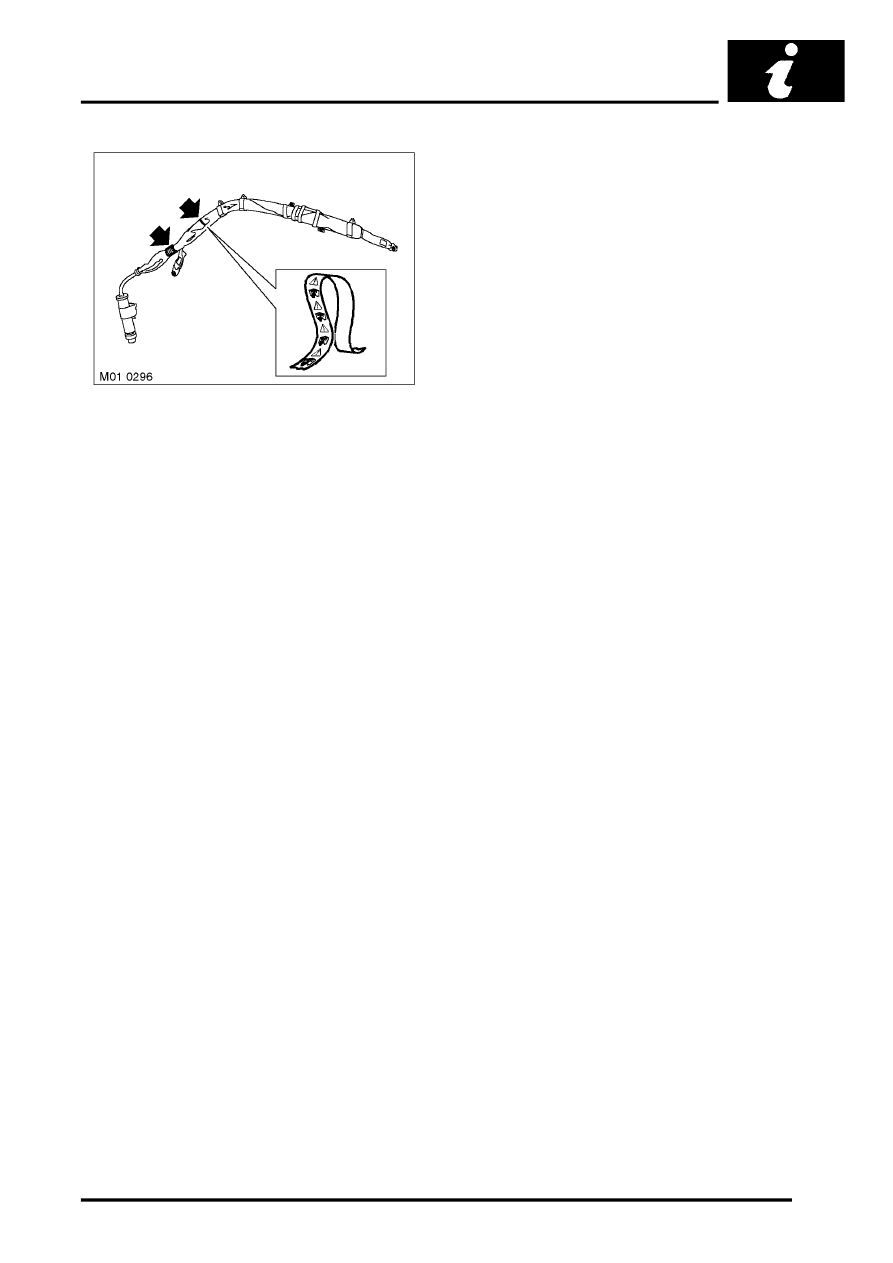

Front head airbag module label
A label is attached to the airbag module identifying
the need for caution and the importance of referring
to the relevant section of the repair manual before
commencing work on the SRS components.
WARNING: The use of correct trim components
is critical to the correct functioning of the airbag
modules during deployment. Do not re-use SRS
related interior trim components if they show
signs of damage; always use new components.
VEHICLE RECOVERY
Towing - SRS components not deployed
Normal towing procedures are unlikely to cause an
airbag to deploy. However, as a precaution, switch
the ignition off and then disconnect both battery
leads – negative (-) lead first.
Towing - SRS components deployed
Once the driver's airbag has been deployed, the
vehicle must have a front suspended tow. However,
as a precaution, switch the ignition off and then
disconnect both battery leads – negative (-) lead first.
Airbag and pre-tensioner deployment
Deployment procedures and precautions as detailed
in this manual should be strictly adhered to. Only
personnel who have undergone the appropriate
training should undertake deployment of airbag and
pre-tensioner modules. The following precautions
must be complied with:
l
Only use deployment equipment approved for
the intended purpose.
l
Deployment of airbag / pre-tensioner modules
should be performed in a well ventilated area
which has been designated for the purpose.
l
Ensure airbag / pre-tensioner modules are not
damaged or ruptured before attempting to
deploy.
l
Notify the relevant authorities of intention to
deploy airbag and pretensioner units.
l
When deploying airbag pre-tensioner units,
ensure that all personnel are at least 15 metres
(45 feet) away from the deployment zone.
l
Ensure deployment tool is connected correctly,
in compliance with the instructions detailed in
the SRS section of this manual. In particular,
ensure deployment tool is NOT connected to
battery supply before connecting to airbag
module connector.
l
When deploying seat belt pre-tensioners,
ensure pre-tensioner unit is secured correctly to
the seat.
l
When removing deployed airbag modules and
pre-tensioner units, wear protective clothing.
Use gloves and seal deployed units in a plastic
bag.
l
Following deployment of any component of the
SRS system within the vehicle, all SRS
components must be replaced. DO NOT re-use
or salvage any parts of the SRS system.
l
Do not lean over airbag module when
connecting deployment equipment.
If a vehicle is to be scrapped, undeployed airbag
modules and pre-tensioner units must be manually
deployed. In this case airbags can be deployed in the
vehicle; before deployment, ensure the airbag
module is secure within its correct mounting position.
Deployment of the driver's airbag in the vehicle may
damage the steering wheel; if the vehicle is not being
scrapped, deploy the module outside of the vehicle.
WARNING: During deployment parts of the
airbag module become hot enough to burn you.
Wait 30 minutes after deployment before
touching the airbag module.
