L322 Range Rover Service Procedures
GENERAL INFORMATION
03-26

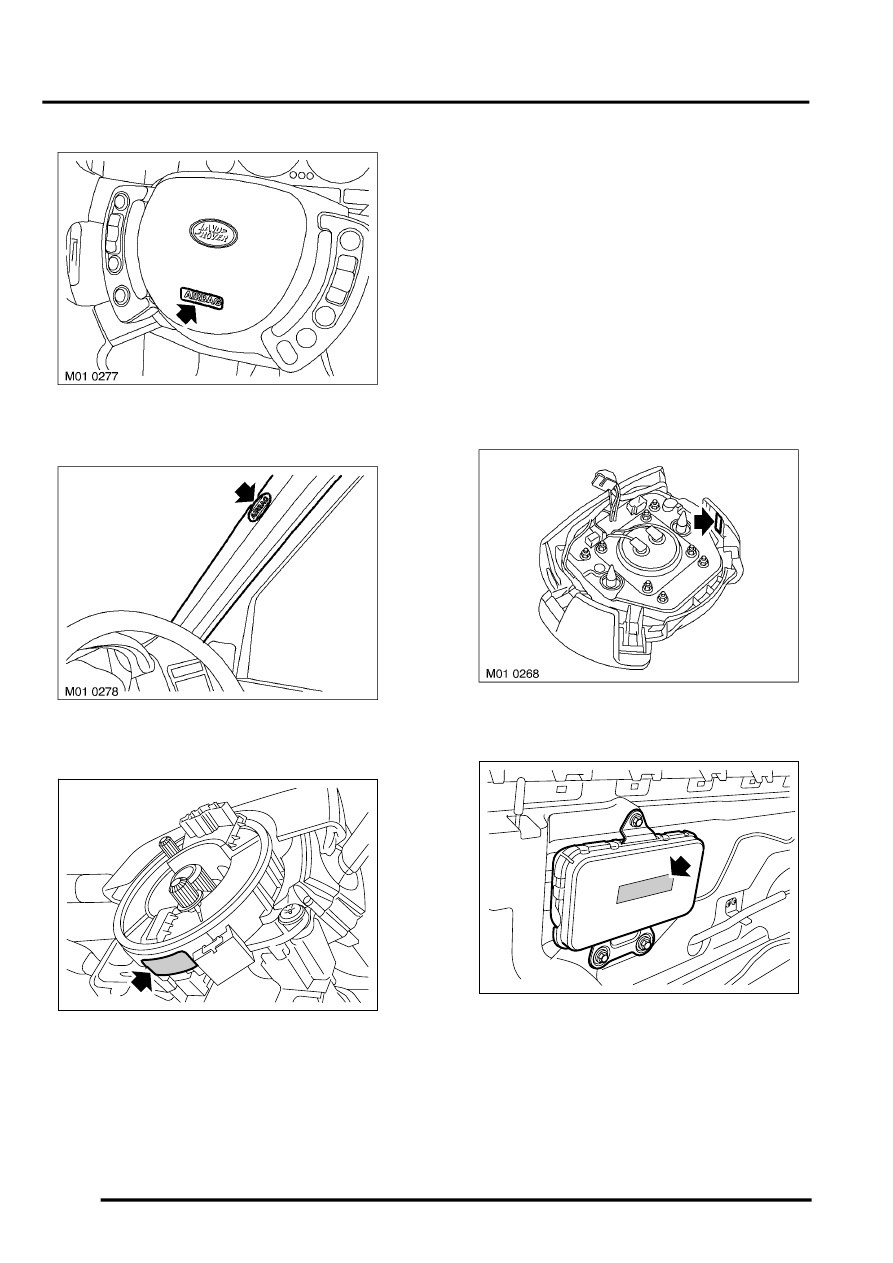

Steering wheel label
'A' Post label
Rotary coupler label - part no. location
The Land Rover part number must be recorded if an
airbag module is to be replaced.
Always exercise caution when working with
components, refer to the appropriate repair operation
when replacing components; do not attempt to prise
open or repair module case.
Modules contain high pressure gas and flammable
material. To prevent personal injury, observe the
following:
l
Do not repair, dismantle, incinerate or bring into
contact with electricity (such as voltmeters).
l
Do not store in a place where temperature
reaches 93
°
C (200
°
F) or higher.
l
Do not install components in another vehicle.
l
Do not install any foreign objects between
airbag and its cover or within modules.
l
Service or dispose of components as directed in
the appropriate repair operation.
Driver's airbag module label
Passenger's airbag module label
Bar codes or part numbers are attached to certain
components which are critically related to correct
operation. The number(s) must be recorded if the
component is to be replaced.
M01 0276
M01 0275
