L322 Range Rover Service Procedures
STEERING
57-18
REPAIRS
10. Fit anti-roll bar heatshield and tighten fixings.
11. Lower engine onto mountings.
NOTE: Guide the fan cowl into position as the
engine is lowered.
12. Fit fan cowl to radiator and fit securing scrivets.
13. Fit screw securing fan cowl to radiator.
14. Fit 2 nuts securing engine mountings to engine
mounting brackets and tighten to 100 Nm (74
lbf.ft).
15. Remove engine lifting chains.
16. Remove engine lifting bracket.

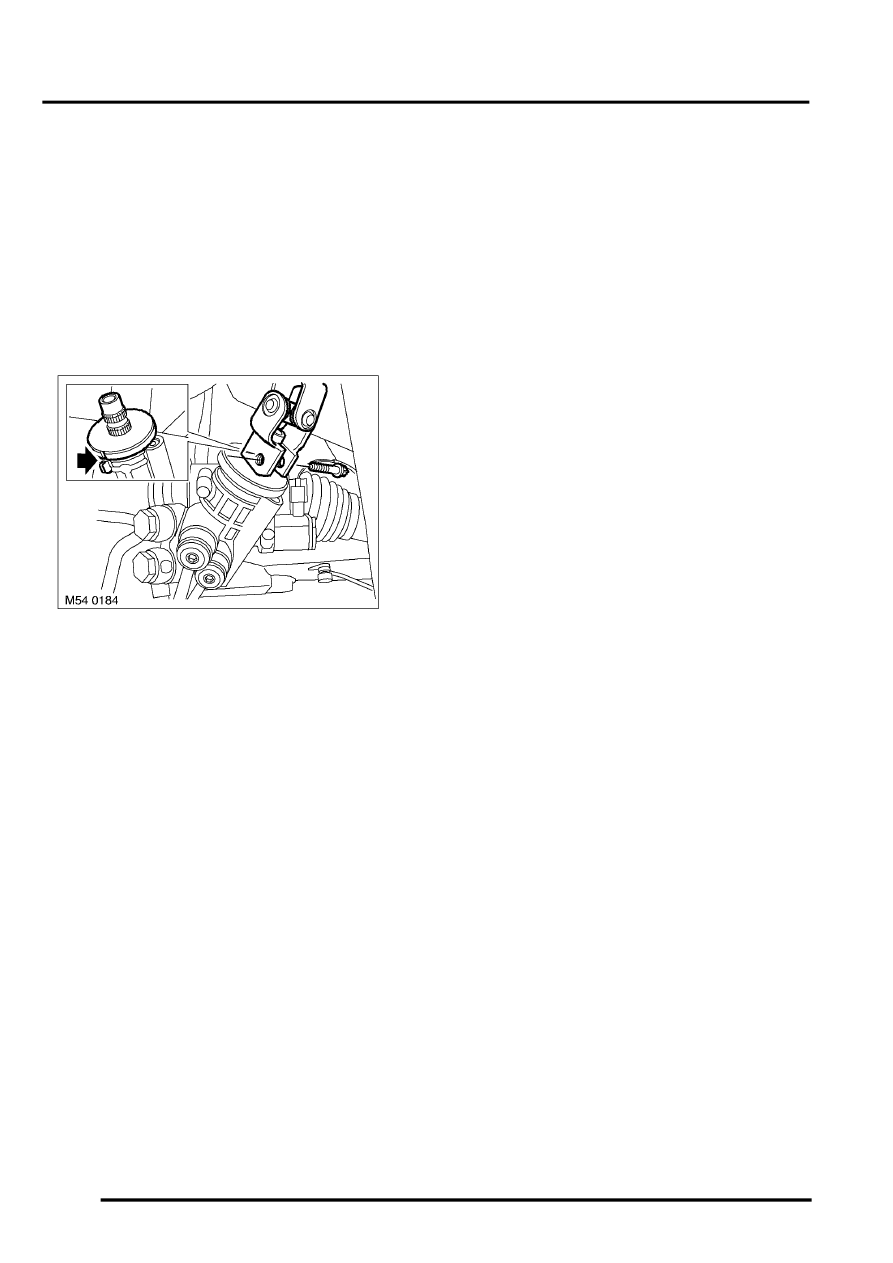

17. Connect lower steering column to PAS rack
making sure that alignment tag is aligned.
18. Fit new PAS rack lower steering column Torx
clamping bolt and tighten to 24 Nm (18 lbf.ft).
19. Connect multiplug to PAS rack pinion sensor.
20. Connect height sensor multiplugs.
21. Correctly position height sensor harness and
secure with cable ties.
22. Clean PAS pump and high pressure outlet pipe
mating faces.
23. Fit new 'O' ring to high pressure outlet pipe
union, align to PAS pump and tighten PAS
pump high pressure pipe union to 25 Nm (18
lbf.ft).
24. Connect PAS return hose to fluid cooler.
25. Secure PAS fluid return hose into 2 straps on
sub-frame.
26. Fit RH front drive shaft.
27. Fit LH front drive shaft.
28. Fit front road wheels and tighten nuts to 140
Nm (103 lbf.ft).
29. Fit air flow panel and tighten bolts to 45 Nm (33
lbf.ft).
30. Fit undertray.
31. Remove stands and lower front end of vehicle.
32. Check differential oil level.
ADJUSTMENTS, Front differential - drain
and refill.
33. Fit air intake plenum.
REPAIRS, Filter - fresh air intake.
34. Connect battery earth lead.
35. Bleed PAS system.
assisted steering (PAS) system - bleed.
36. Check and adjust front wheel alignment.
