L322 Range Rover Service Procedures
STEERING
REPAIRS
57-27

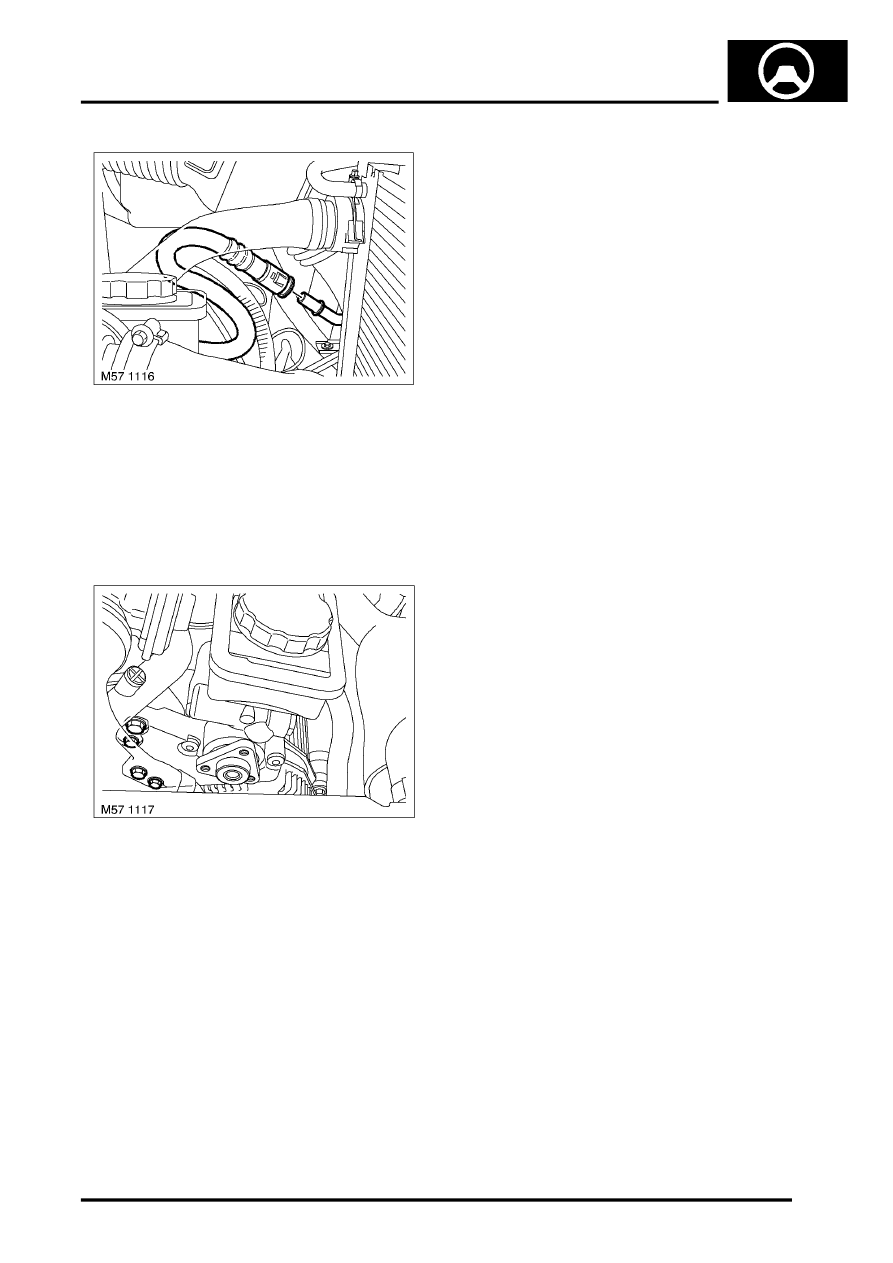

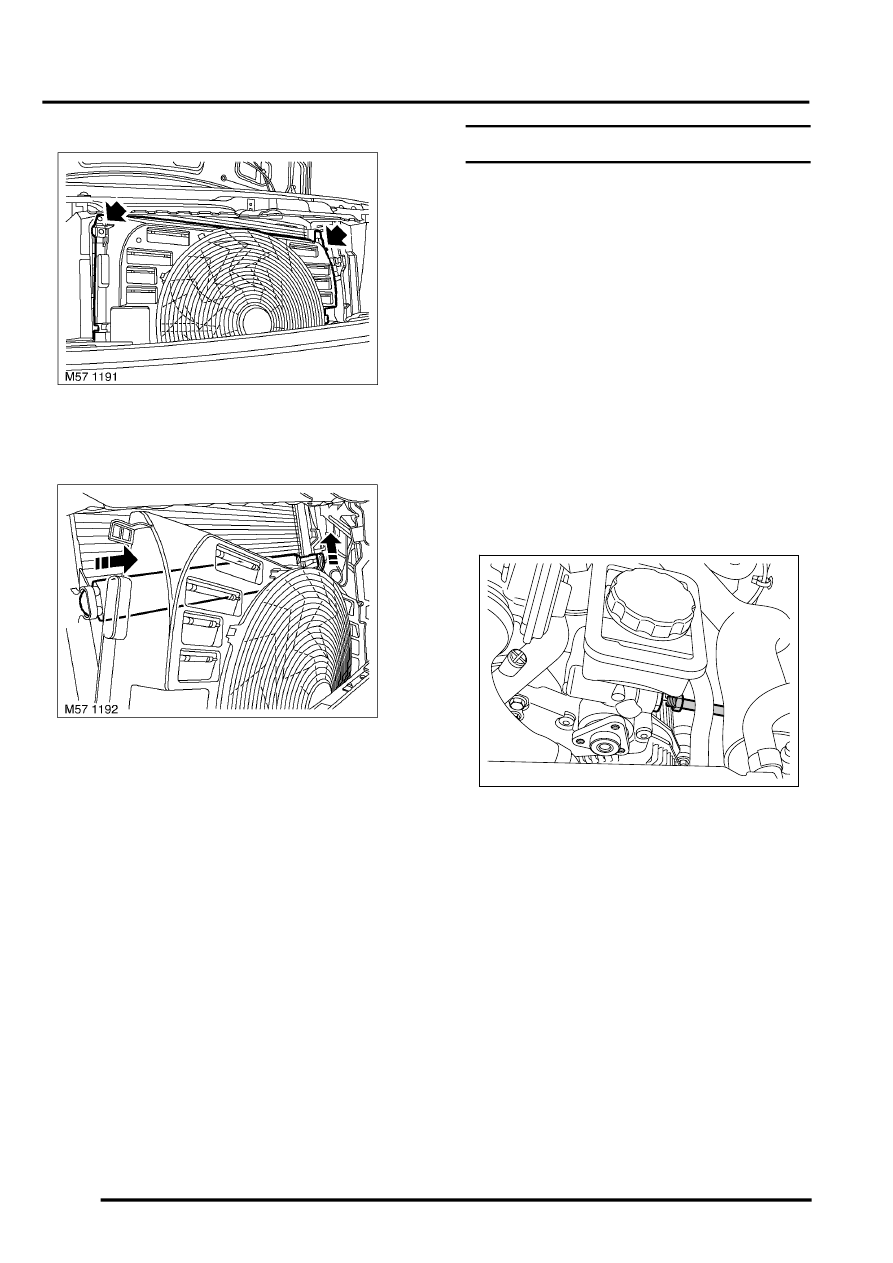

8. Position container, release and disconnect
return hose from PAS cooler.
CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.
9. Remove 4 bolts and remove PAS pump.
NOTE: Do not carry out further dismantling if
component is removed for access only.
10. Remove 5 Torx screws and remove brackets
from PAS pump.
Refit
1. Fit brackets to PAS pump and tighten Torx
bolts to 25 Nm (18 lbf.ft).
2. Position PAS pump to mounting and fit bolts.
Tighten M8 bolts to 25 Nm (18 lbf.ft) and M6
bolts to 10 Nm (7 lbf.ft).
3. Clean PAS cooler pipe connections.
4. Fit and secure fluid cooler hose to cooler.
5. Clean PAS pump and pipe union.
6. Fit new 'O' ring to high pressure pipe, align to
PAS pump and tighten union to 25 Nm (18
lbf.ft).
7. Position PAS pump pulley to PAS pump, fit and
finger tighten bolts.
8. Fit ancillary drive belt.
REPAIRS, Ancillary drive belt - Td6.
9. Tighten PAS pulley bolts to 25 Nm (18 lbf.ft).
10. Fit viscous fan.
11. Connect battery earth lead.
