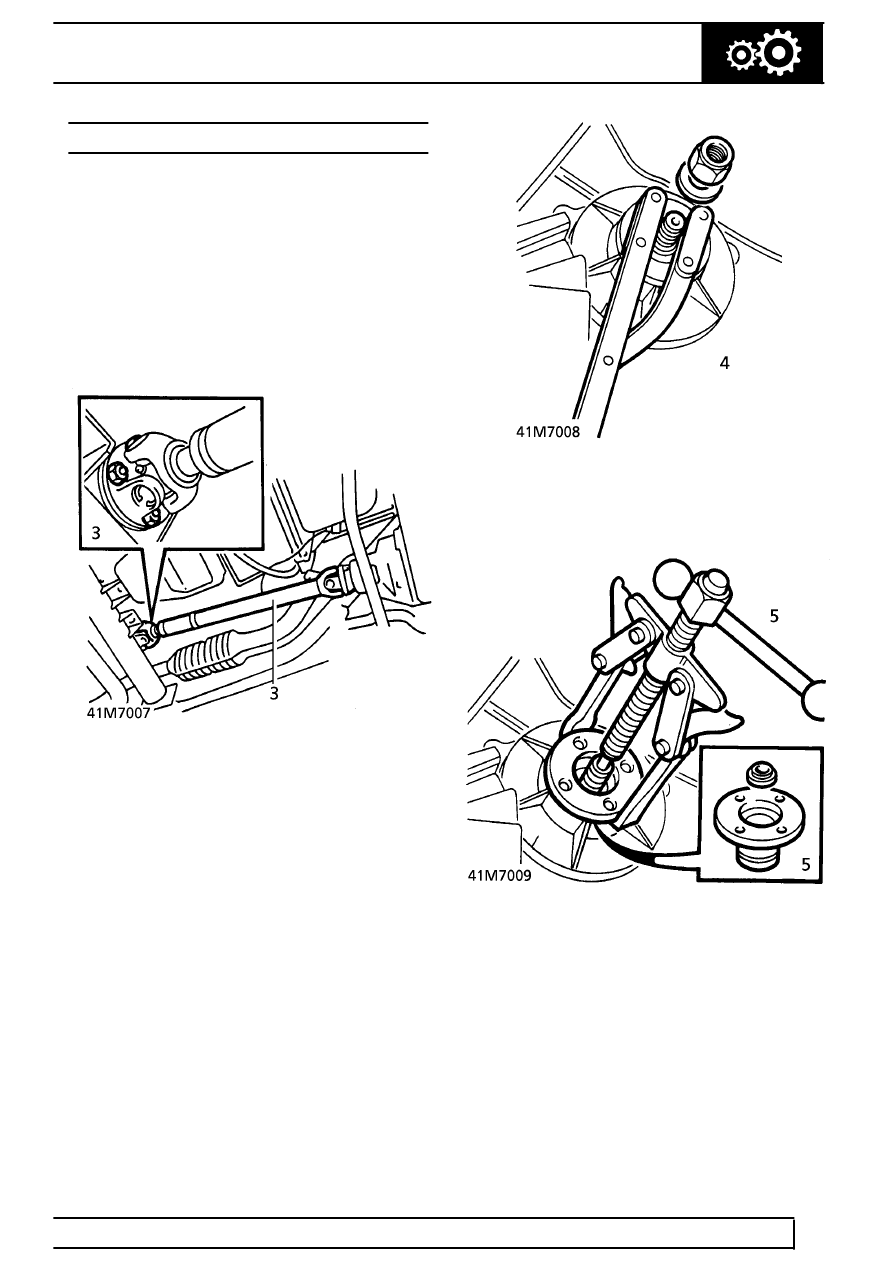

TRANSFER BOX
NEW RANGE ROVER
4
REPAIR
CAUTION: Ensure seal location does not
become damaged.
Refit
7. Ensure mating faces are clean.

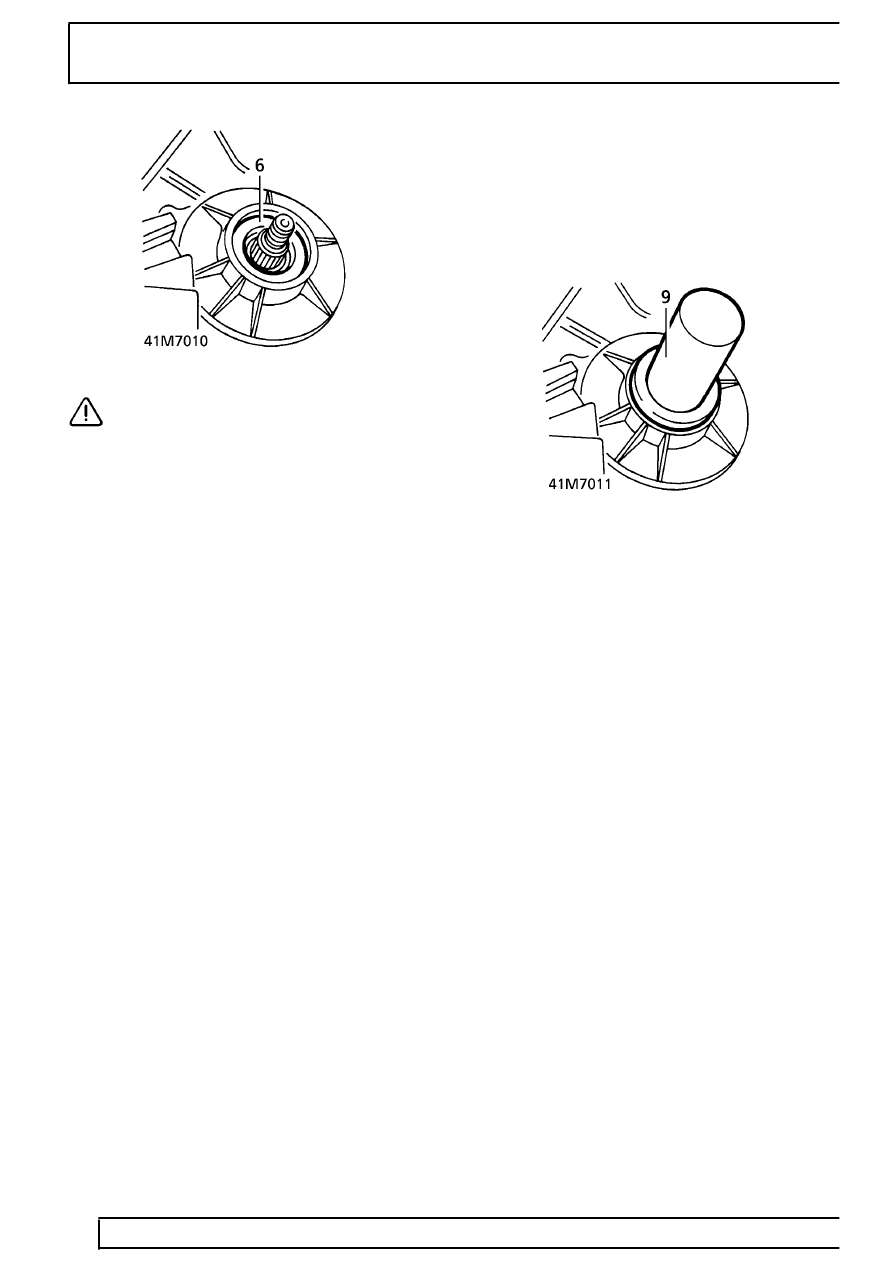

8. Lubricate seal lip with transmission fluid.
9. Fit seal using LRT-41-011.
10. Position flange. Fit sealing washer.
11. Use LRT-51-003 to restrain flange.
12. Secure flange with washer and new Nyloc nut.
Tighten to
148 Nm. (109 lbf.ft)
13. Position propeller shaft to output flange. Align
marks.
14. Secure propeller shaft with nuts and bolts.
Tighten to
48 Nm. (35 lbf.ft)
15. Fit chassis cross member.
See CHASSIS AND
BODY, Repair.
16. Replenish transfer box oil.
See LUBRICANTS,
FLUIDS AND CAPACITIES, Information.
