Range Rover Classic
76
CHASSIS AND BODY
58
REPAIR

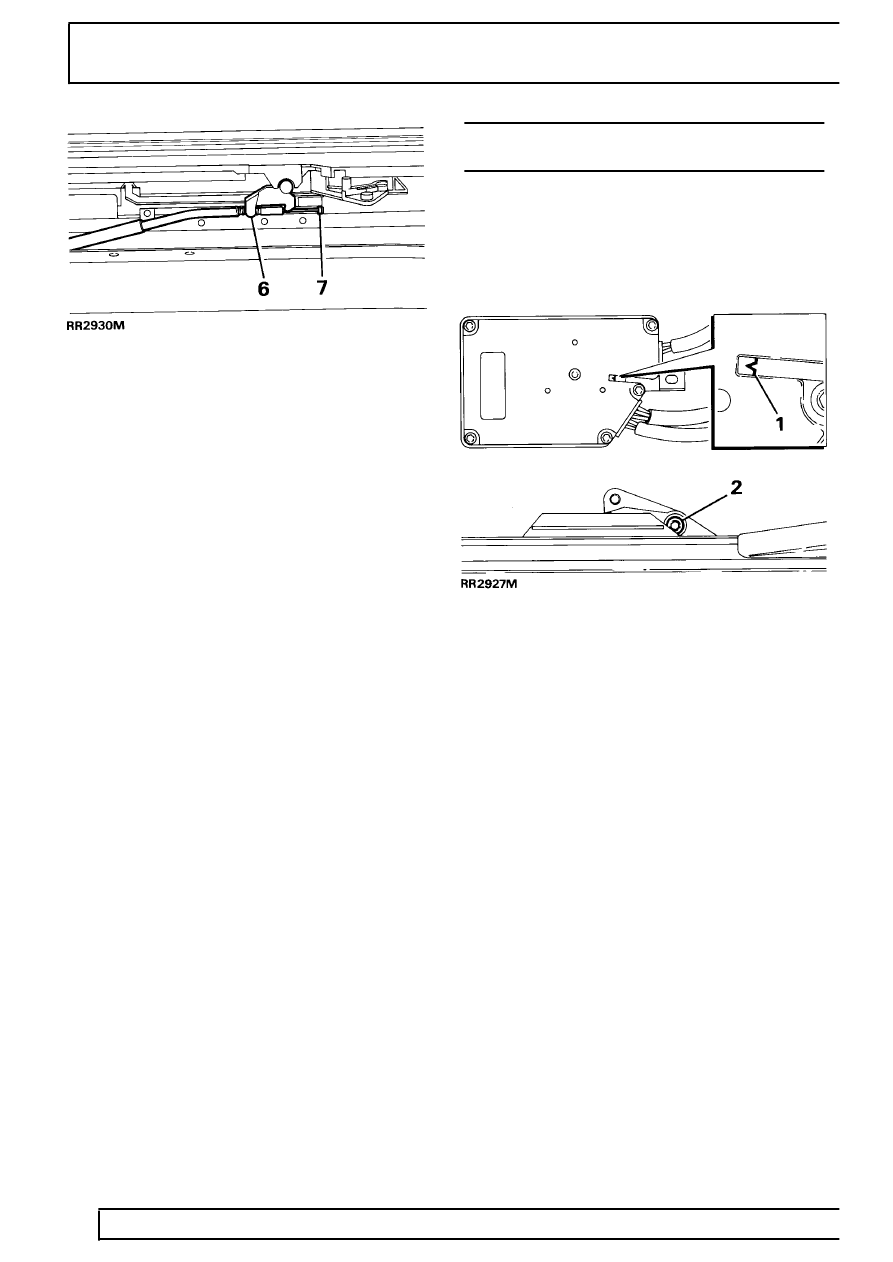

7. The drive cable end is now accessible.
Disconnect drive cable from slide assembly.
8. Push tilt slide rearwards reversing instruction 6.
9. Push complete slide assembly rearwards
approximately 2".
10. Remove front end stop and attaching screw from
centre of guide channel.
11. Push guide channel assembly out sideways to
release guide channel from roof panel.
12. Slide sunshade panel forward and lift out of
runner to remove.
Continue for removal of slide and guide
channel assembly.
13. Using a flashlight directed between roof panel
and sunroof assembly. Observe for reassembly
guide channel rear spring fixing point.
14. Pull guide channel forward to release from rear
spring fixing point. Remove guide channel
assembly.
Refit
15. Reverse removal procedure.
16. Check sunroof operates correctly.
TIMING OF CONTROL UNIT TO SUNROOF
OPERATION
The timing of control unit to sunroof operation will be
disturbed:-
If sunroof position is altered when control unit is
removed.
Or control unit is removed and control unit gear is
moved.
1. To check timing of control unit to sunroof. A ’V’
shaped notch should be visible through slot in
control unit when sunroof is in fully closed
position.
2. To check control unit timing when glass panel is
removed. A ’V’ shaped notch should be visible
through slot in control unit when sunroof tilt
mechanism rivet is at a tangent to angle on
guide channel. Viewed from inside vehicle.
