ENGINE
20
OVERHAUL

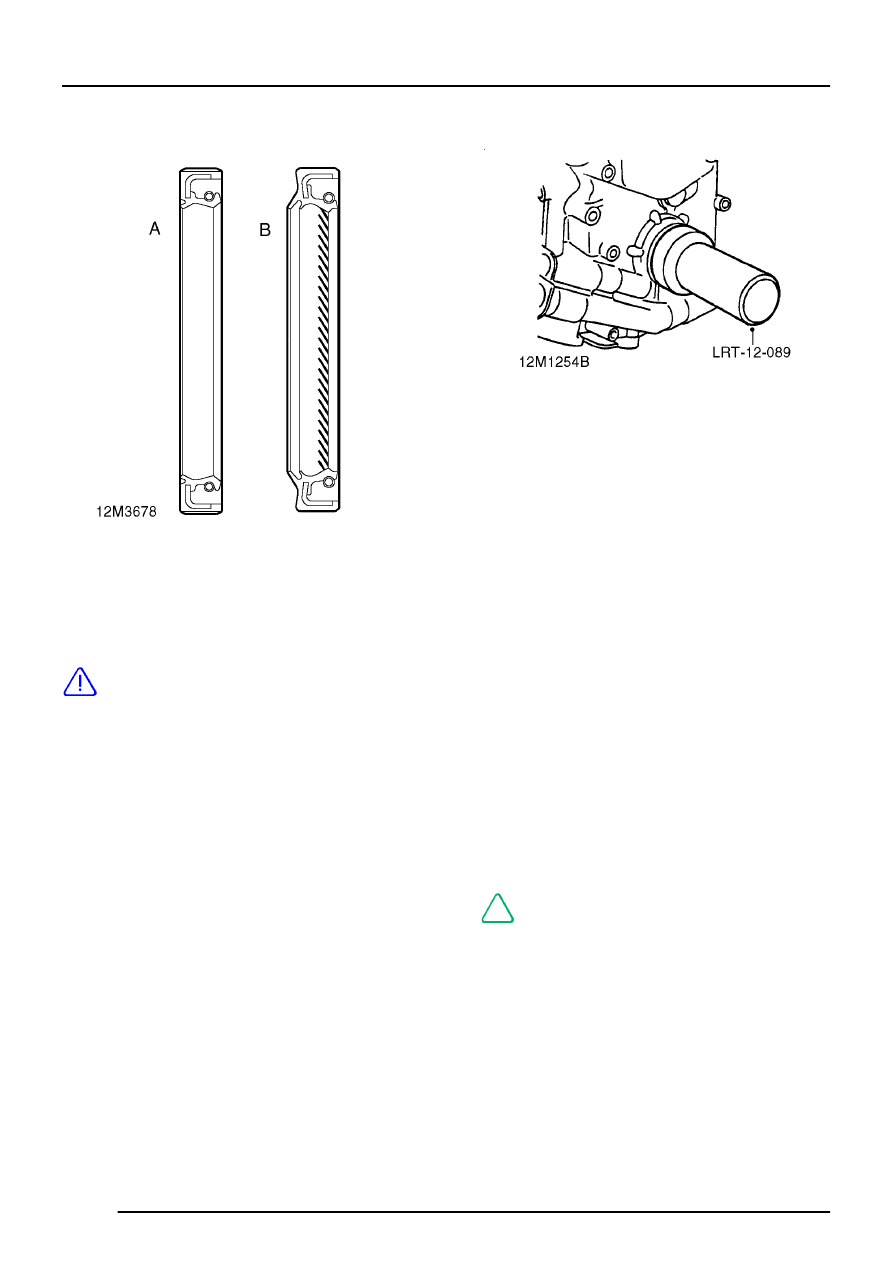

A- Early type seal
B- Later type seal - use as replacement on all
engines
CAUTION: Replacement oil seal is
pre-greased, do not use any additional
lubricant.

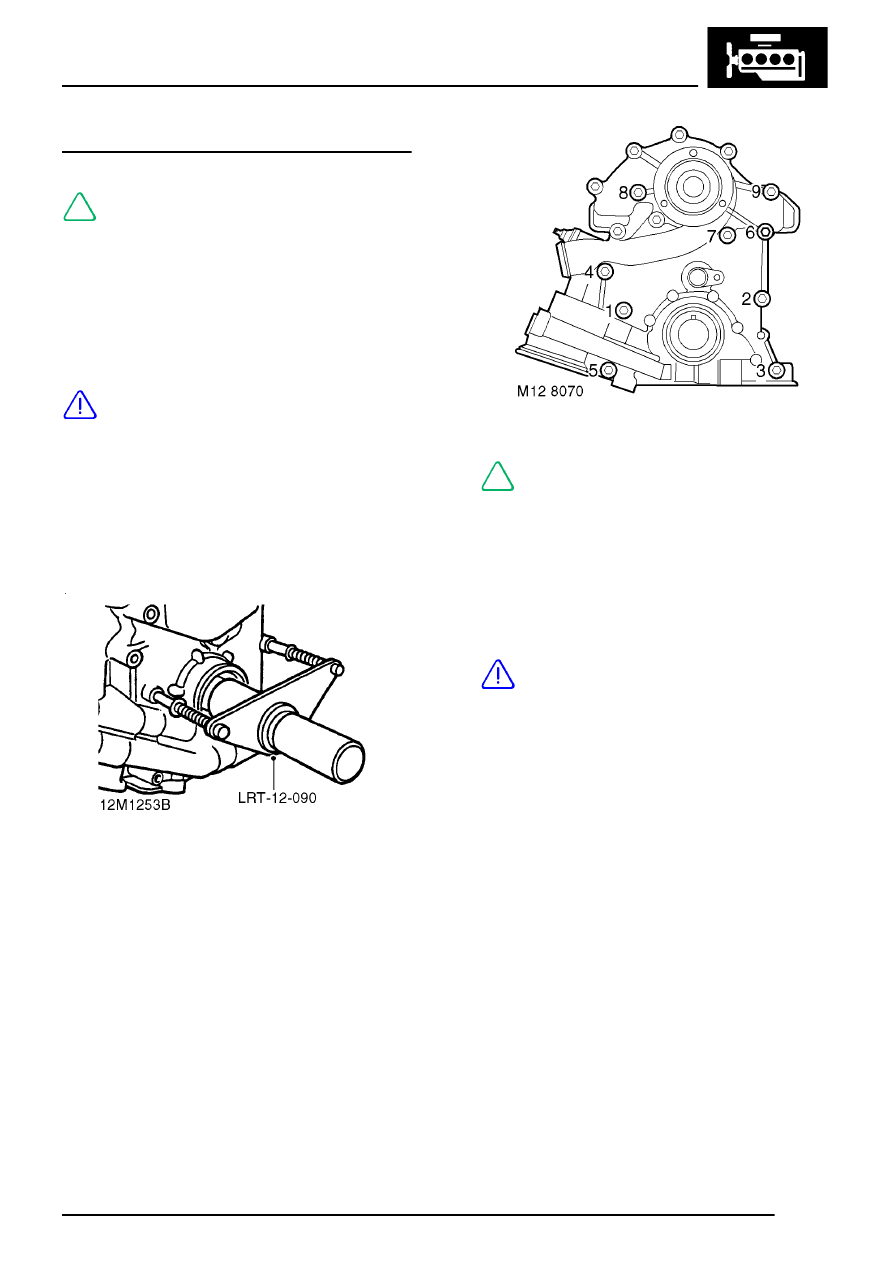

12. Fit timing cover oil seal using tool LRT-12-089.
13. Smear a new ’O’ ring with engine oil and fit to
oil pick-up pipe.
14. Position oil pick-up pipe spacer on number 4
main bearing cap stud.
15. Fit oil pick-up pipe ensuring that end of pipe is
correctly inserted in oil pump body.
16. Fit oil pick-up pipe to oil pump body bolts and
tighten to 8 Nm (6 lbf.ft).
17. Fit washers and nut securing oil pick-up pipe to
stud, tighten nut to 24 Nm (18 lbf.ft).
18. Smear a new ’O’ ring with engine oil and fit to
camshaft sensor.
19. Insert camshaft sensor into timing cover, fit bolt
and tighten to 8 Nm (6 lbf.ft).
20. Position camshaft sensor harness connector
on mounting bracket.
21. Fit sump.
22. Fit crankshaft pulley, fit bolt and spacer washer
- if fitted.
23. Restrain crankshaft pulley using tool
LRT-12-080 and tighten bolt to 270 Nm (200
lbf.ft).
NOTE: Crankshaft pulleys which
incorporate a mud flinger can be fitted to
all engines.
24. Remove tool LRT-12-080 .
