ENGINE
20
OVERHAUL

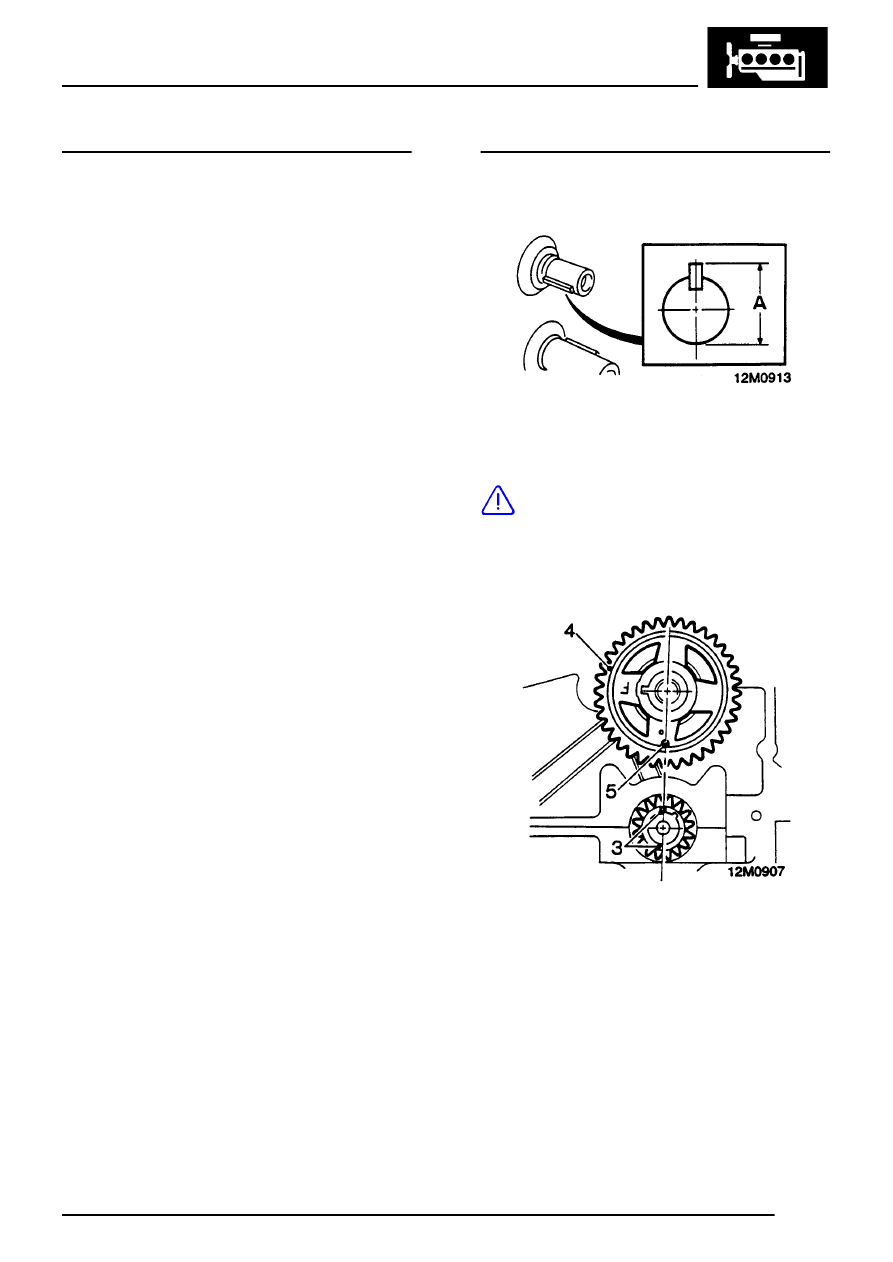

6. Position timing gears on work surface with
timing marks upwards and aligned.
7. Fit timing chain around gears, keeping timing
marks aligned.
8. Fit gear and chain assembly.
NOTE: Timing marks and ’F’ mark on
camshaft gear must be facing forwards.
9. Fit spacer to camshaft with flange facing
forwards.
10. Fit distributor drive gear - if fitted to camshaft
with grooved face towards camshaft gear.
11. Fit camshaft gear bolt and washer, restrain
camshaft gear and tighten bolt to 50 Nm (37
lbf.ft).
