Town Car V8-4.6L VIN V Flex Fuel (2006)

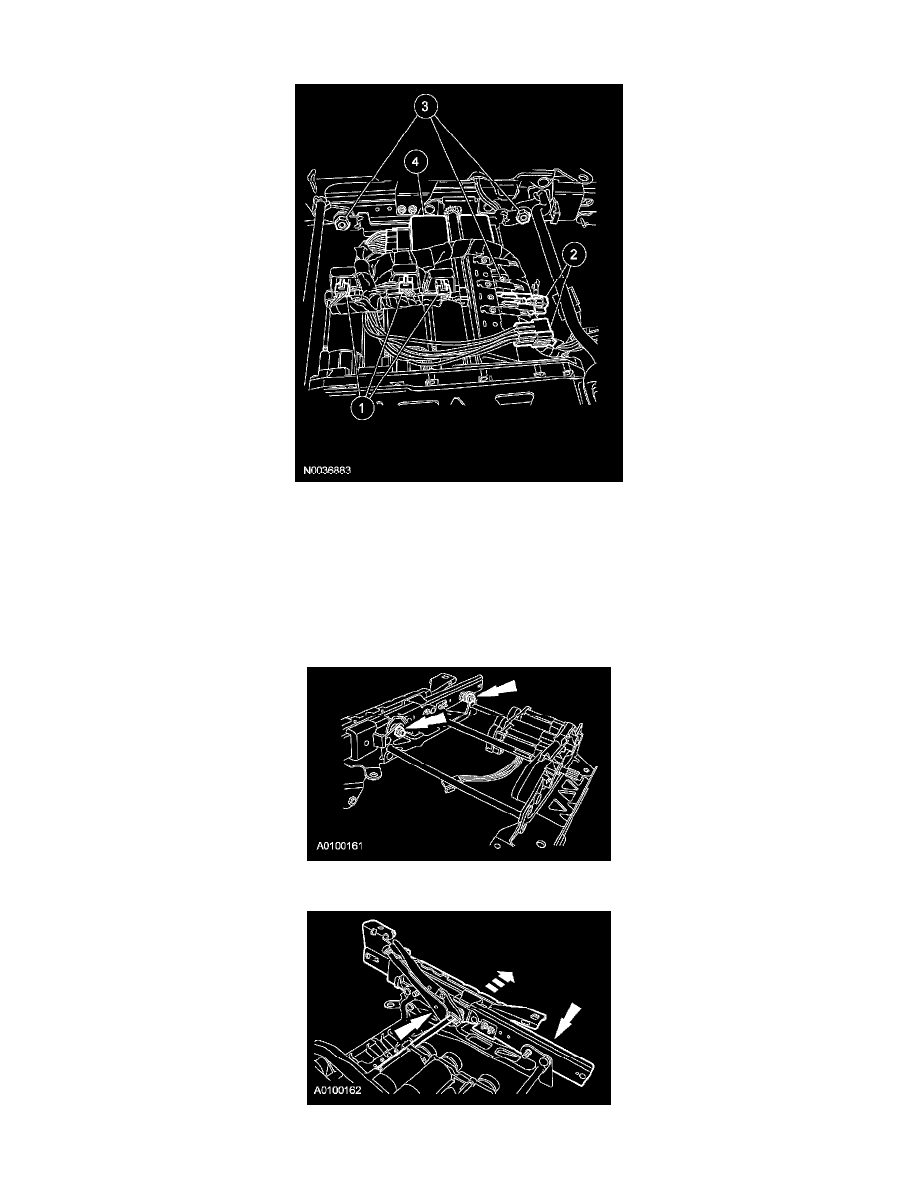

Mark the position of the inboard track C-channel to the plastic-coated slide as shown.
10. If equipped, remove the memory seat module, bracket and wiring.
1
NOTE: Make note of each connector's location.
Disconnect the 3 memory position sensor electrical connectors.
2
Separate the seat track motor electrical connector and wire harness stress relief retainer from the clips.
3
Remove the 2 nuts and bolt.
4
Remove the memory seat module, bracket and wiring.
11. Remove the 2 inboard seat track-to-upper support assembly lift link nuts.
12. NOTE:
