Town Car V8-4.6L VIN V Flex Fuel (2006)
Brake Pedal Assy: Service and Repair

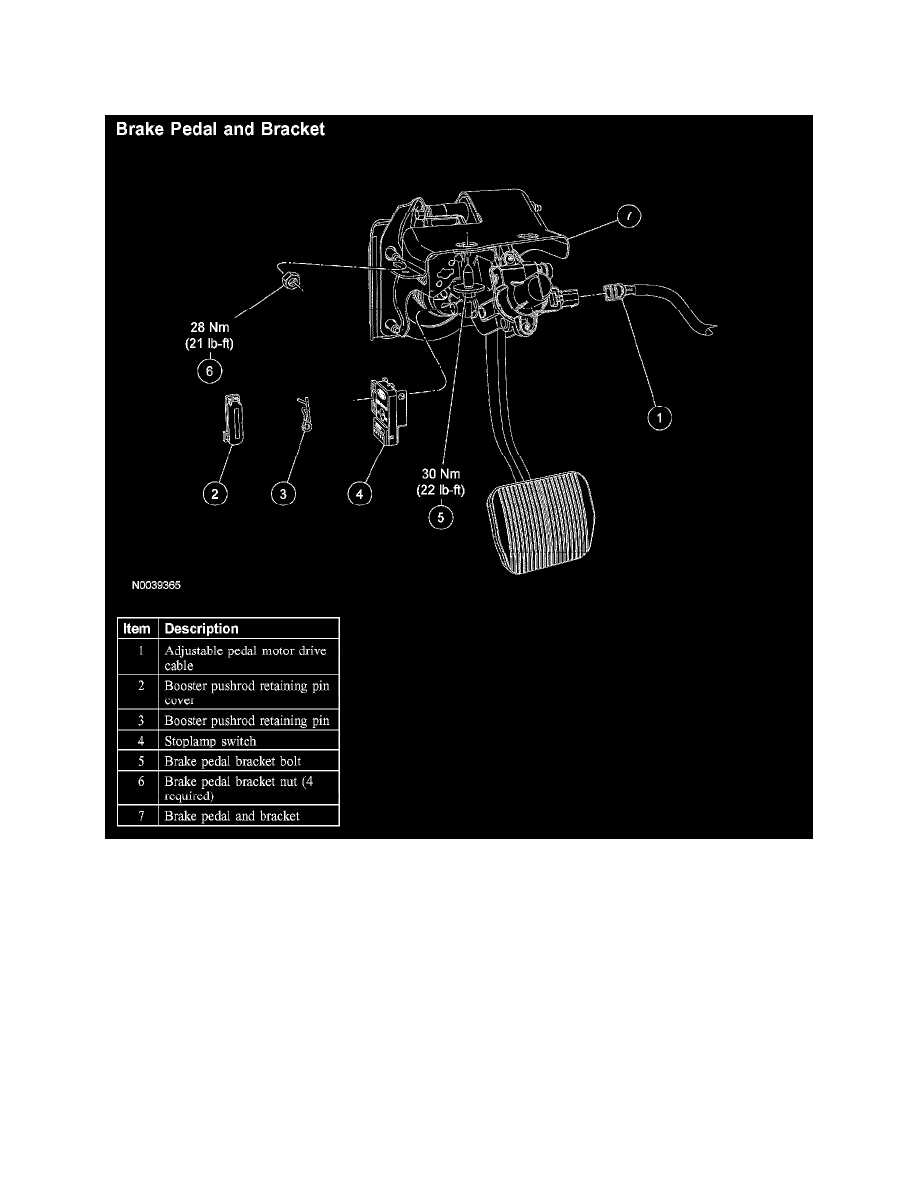

Brake Pedal and Bracket
Brake Pedal and Bracket
Brake Pedal And Bracket
Removal and Installation
CAUTION: The adjustable pedal system must be indexed whenever the brake pedal assembly or the accelerator pedal assembly is repaired. For
additional information, refer to Adjustable Pedal Indexing - Brake.
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the instrument panel close-out panel.
^
Remove the pushpins.
^
Turn the lamp counterclockwise.
3. Remove the speed control deactivator switch. For additional information, refer to Cruise Control.
4. Remove the booster push rod retaining pin cover.
5. Remove the booster push rod retaining pin.
6. Slide the stoplight switch, the washer, bushing and booster push rod from the brake pedal pin.
7. Remove the brake pedal bracket bolt.
^
To install, tighten to 30 Nm (22 ft. lbs.).
