6 L4-2.5L (2010)
Antenna - Keyless Entry: Service and Repair

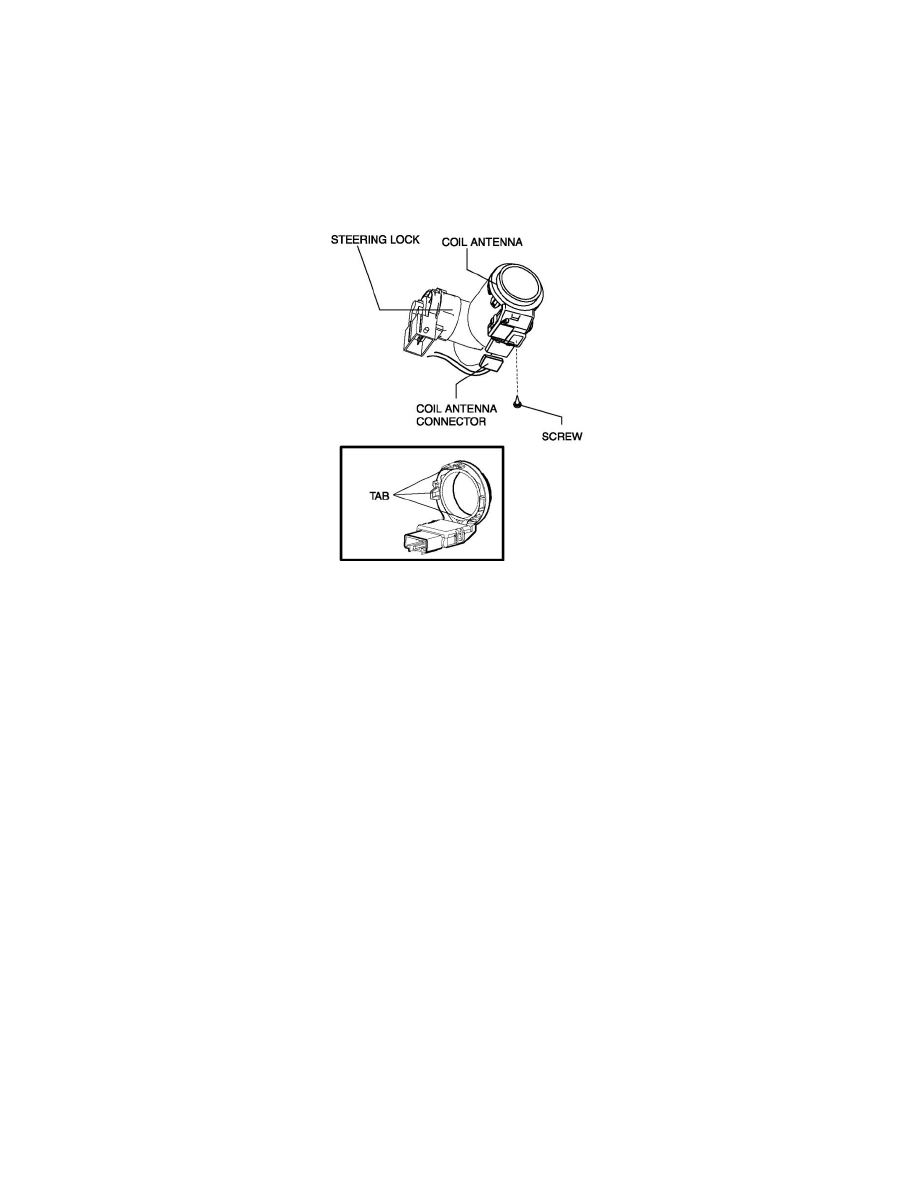

Coil Antenna Removal/Installation - Keyless Entry System
COIL ANTENNA REMOVAL/INSTALLATION [KEYLESS ENTRY SYSTEM]
1. Disconnect the negative battery cable.
2. Remove the column cover. See: Steering and Suspension/Steering/Steering Column/Steering Column Cover/Service and Repair
3. Disconnect the coil antenna connector.
4. Remove the screw.
5. Detach the coil antenna hooks and remove the coil antenna from the steering lock.
6. Install in the reverse order of removal.
