6 L4-2.5L (2010)
NOTE:
-

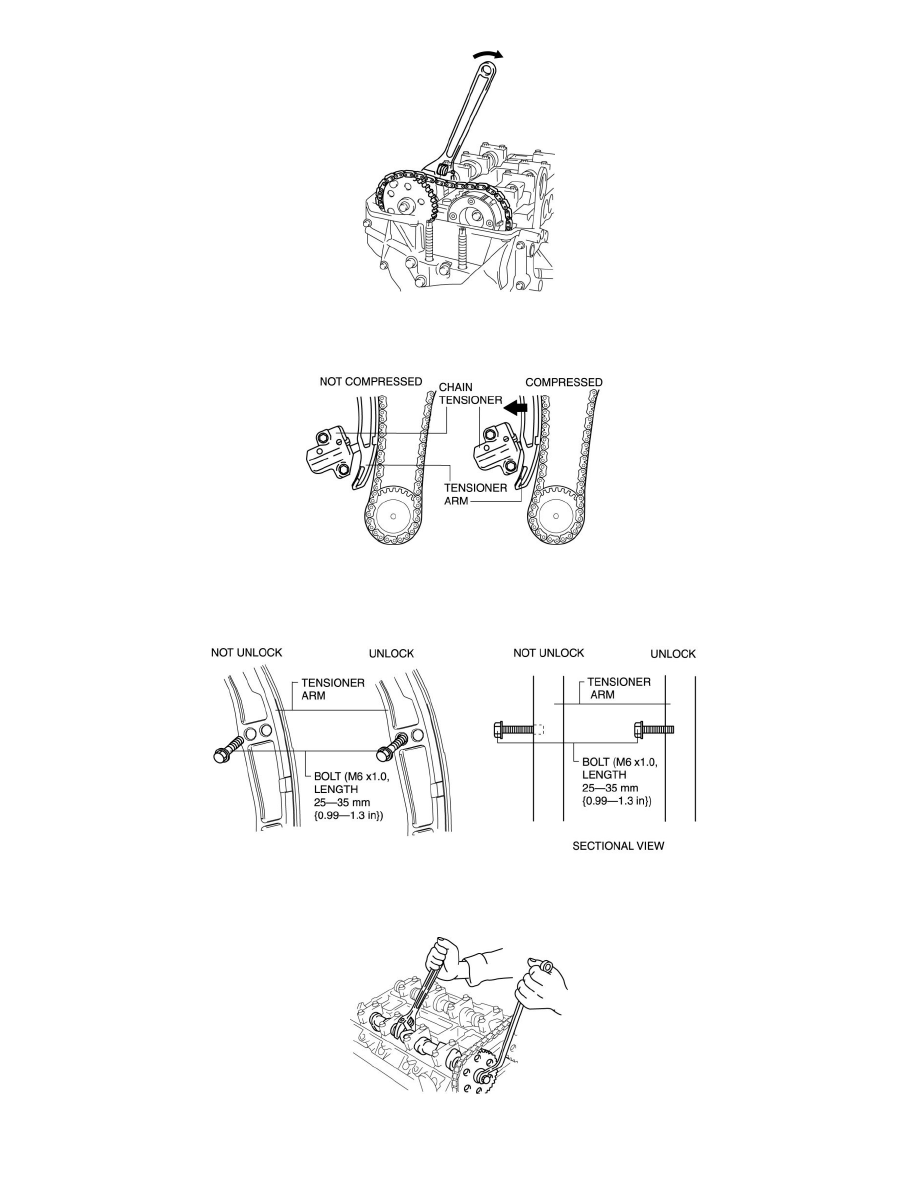

The chain tensioner rack is compressed using the chain tension generated by applying force to the exhaust camshaft in the direction of the
engine rotation.
NOTE:
-
The racket has not been unlocked if the bolt cannot be pressed in approx. 5 mm {0.2 in}.
e. Screw in the bolt set in Step 1 approx. 5 mm {0.2 in} and secure the tensioner arm with the rack compressed.
-
If the tensioner arm cannot be secured, return the bolt to its original position and repeat the procedure from Step 3.
19. Fix the exhaust camshaft using a wrench on the cast hexagon, and loosen the camshaft sprocket bolt.
CAUTION:
-
Perform the work carefully so that the washer does not drop out.
