6 L4-2.5L (2010)
5. Reinstall oil pan onto cylinder block.

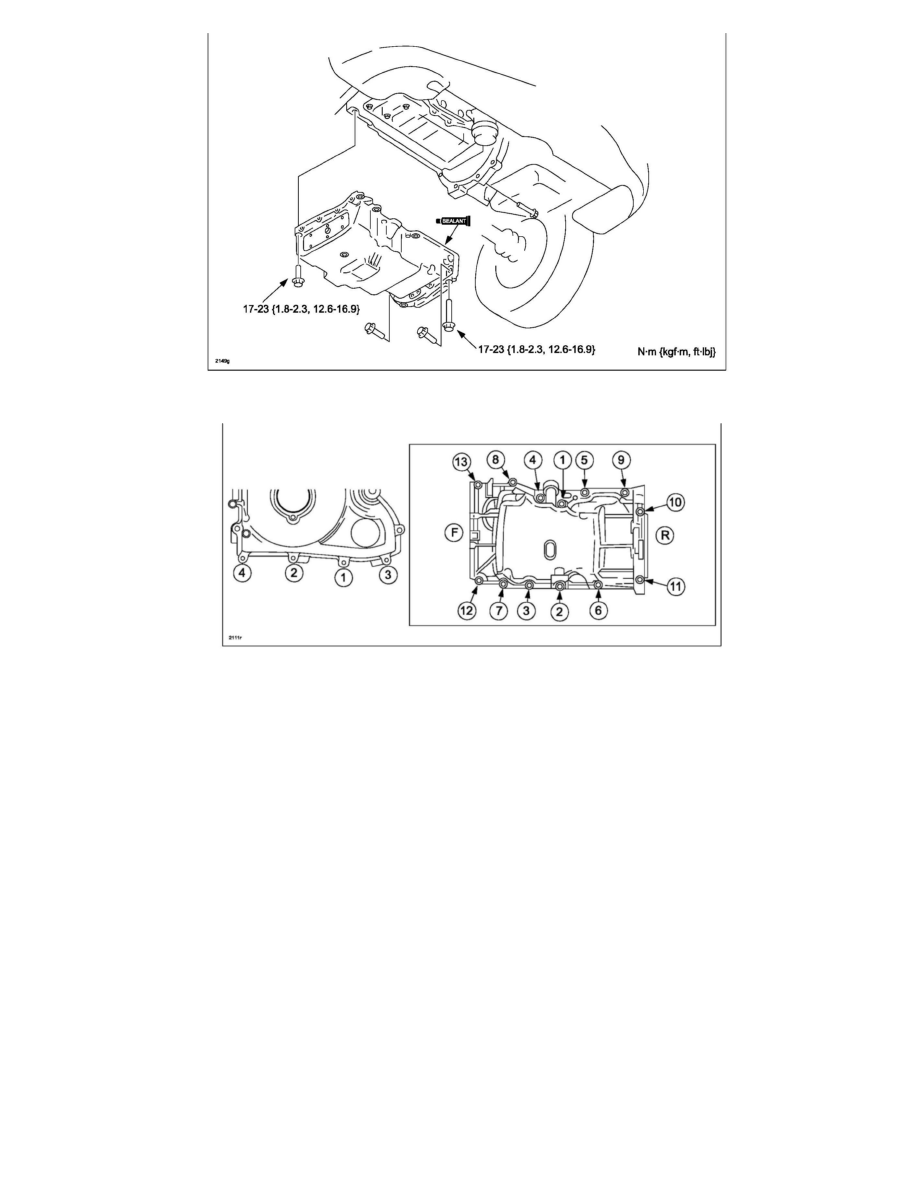

6. Reinstall and tighten oil pan bolts and front cover bolts as follows. The front of the engine is (F) and the rear of the engine is (R).
a. Install and tighten all oil pan bolts and four (4) front cover bolts 2 or 3 turns.
b. Install front cover stud bolt directly under crank pulley lock bolt.
c. Tighten No. 6, No. 7, No. 8 and No. 9 oil pan bolts to 17.0-23.0 N.m (12.6-16.9 ft-lbf).
d. Then loosen No. 6, No. 7, No. 8 and No. 9 oil pan bolts by turning counterclockwise 180 degrees.
e. Tighten four (4) front cover bolts to 8.0-11.5 N.m (5.9-8.5 ft-lbf) in the order shown.
f. Tighten thirteen (13) oil pan bolts to 17.0-23.0 N.m (12.6-16.9 ft-lbf) in the order shown.
7. Tighten all bolts securing engine and transaxle.
NOTE:
Tighten the bolts from the bottom of the transaxle to the top of the transaxle.
