6 L4-2.5L (2010)
Technical Service Bulletin # 0102709
Date: 090702
Engine - Revised Oil Pan Removal/Installation
Bulletin No: 01-027/09
Last Issued: 07/02/2009
Subject:
L5 ENGINE OIL PAN REMOVAL / INSTALLATION PROCEDURE AND SUGGESTED REPAIR TIME UPDATE
APPLICABLE MODEL(S)/VINS
2009-2010 Mazda6 2.5L
DESCRIPTION

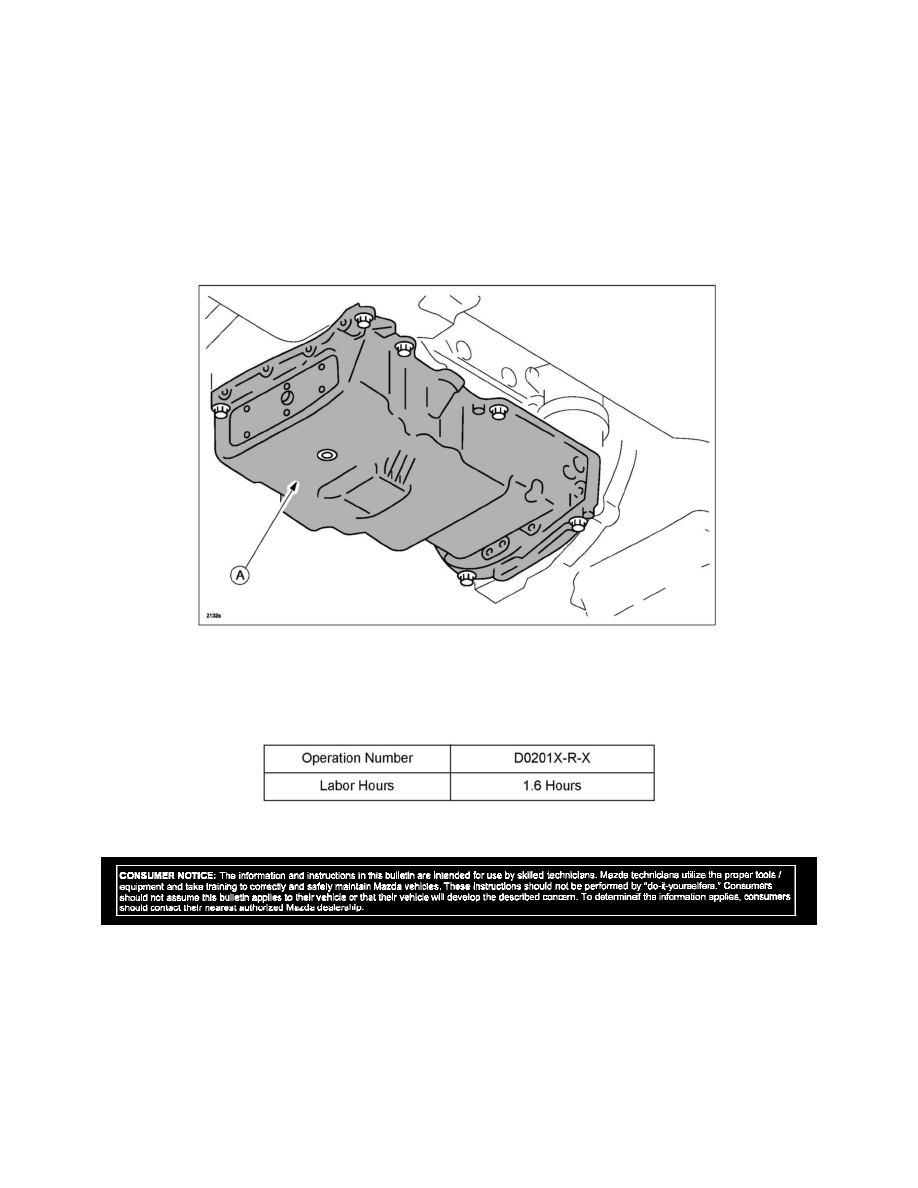

The removal / installation procedure and suggested repair time of engine oil pan have been updated. When you remove / install the engine oil pan (A) to
repair oil leakage from the engine oil pan or other reasons, be sure to follow this updated procedure.
Due to the change of the procedure, the repair time has also been updated.
REPAIR TIME
Disclaimer
Repair Procedure
REPAIR PROCEDURE
WARNING:
^ Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.
^ A vehicle that is lifted, but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around
or under a lifted vehicle if it is not securely supported on safety stands.
