6 L4-2.5L (2010)
3. Install a new retainer to the quick release connector.
4. Reconnect the fuel hose straight to the fuel pipe until a click is heard.
5. Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected securely.
6. Complete the "AFTER SERVICE PRECAUTION". See: Service Precautions/Vehicle Damage Warnings/After Service Precaution
Type B Installation
NOTE:
-
If the quick release connector O-ring is damaged or has slipped, replace the fuel hose.
1. Inspect the fuel hose and fuel pipe sealing surface for damage and deformation.
-
If there is any malfunction, replace it with a new one.

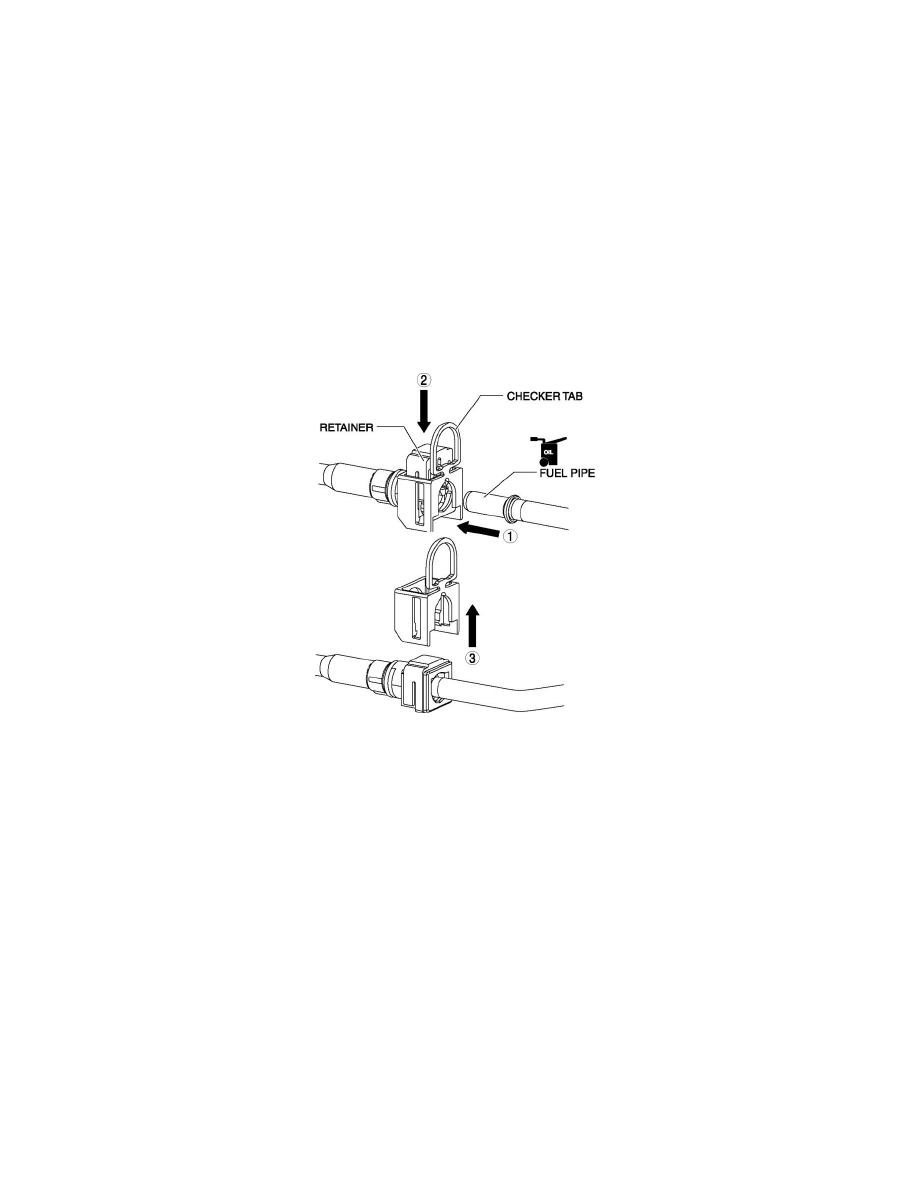

2. Install the quick release connector.
-
Insert the fuel pipe straight to the end of the quick release connector.
-
Push down the retainer using a finger.
-
If the retainer cannot be pushed down, push the fuel pipe further to the quick release connector.
3. Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected securely.
4. Complete the "AFTER SERVICE PRECAUTION". See: Service Precautions/Vehicle Damage Warnings/After Service Precaution
