Mazdaspeed6 L4-2.3L Turbo (2006)
Grille: Service and Repair

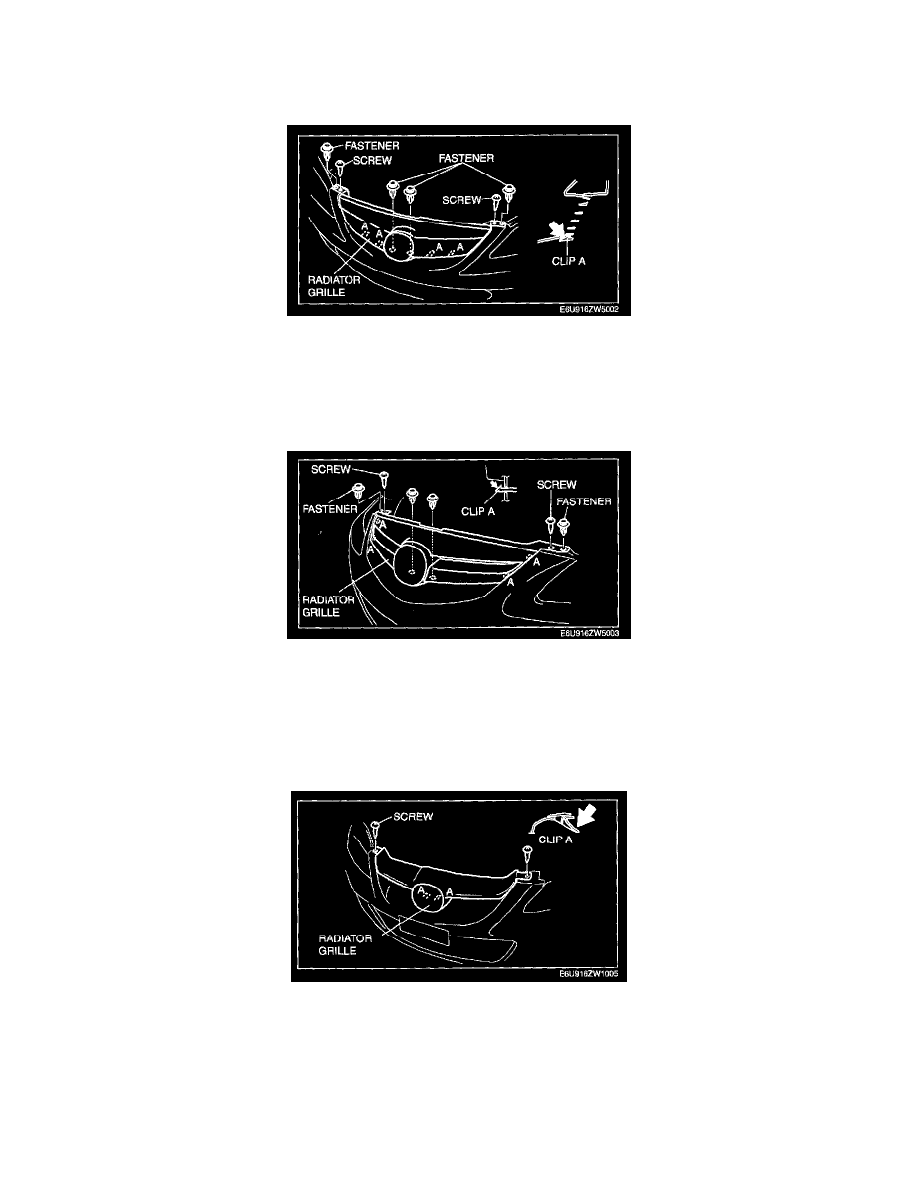

RADIATOR GRILLE REMOVAL/INSTALLATION
Standard Type
1. Remove the screws.
2. Remove the fasteners.
3. Press clips A in the direction of the arrow, pull the radiator grille outward, and remove it from the front bumper.
4. Install in the reverse order of removal.
Sport Type
1. Remove the screws.
2. Remove the fasteners.
3. Press clips A in the direction of the arrow, pull the radiator grille outward, and remove it from the front bumper.
4. Install in the reverse order of removal.
L3 With TC
1. Remove the front bumper.
2. Remove the screws.
3. Press clips A in the direction of the arrow, pull the radiator grille outward, and remove it from the front bumper.
4. Install in the reverse order of removal.
