MX-6 LS V6-2.5L DOHC (1997)
Fuel Injector Resistance Inspection Details
1. Disconnect the fuel injector connectors.

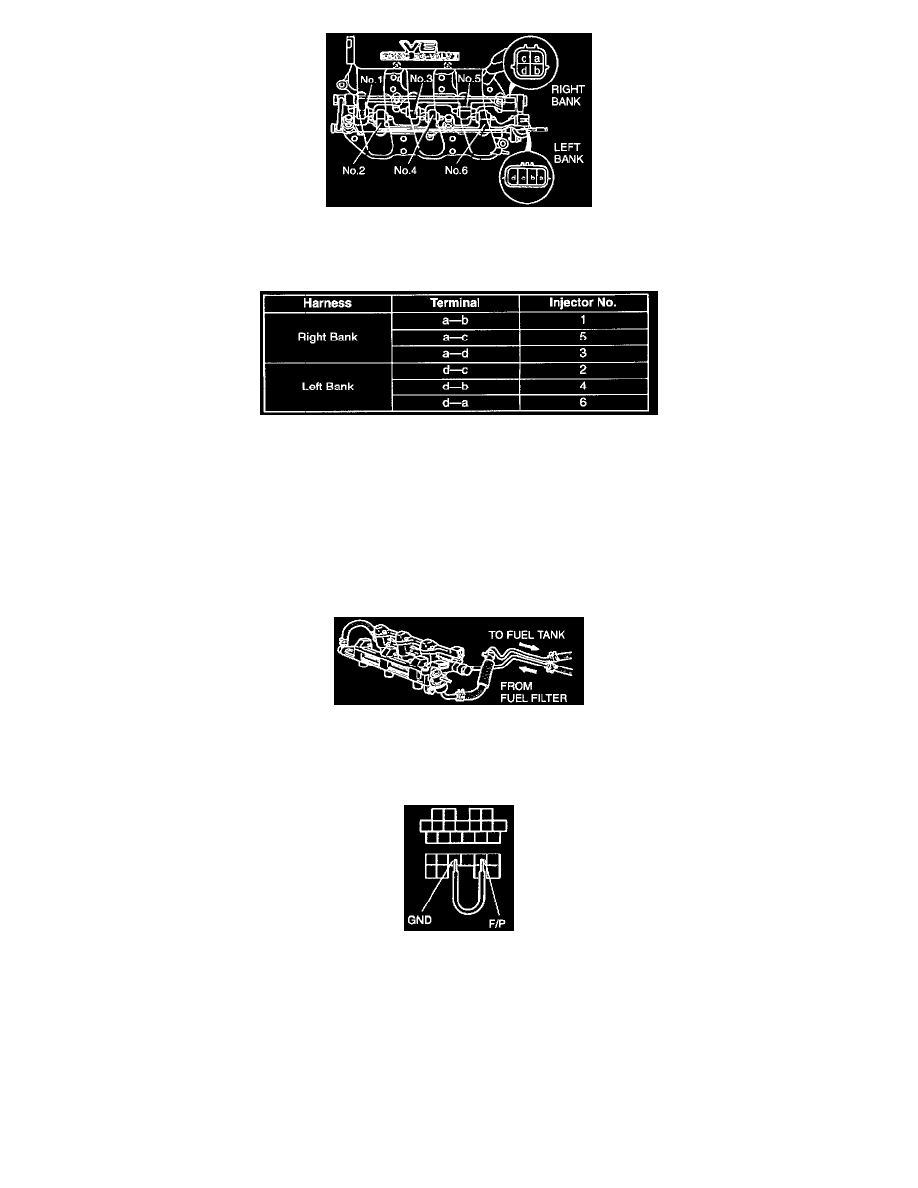

Fuel Injector Connector Details
2. Measure resistance of the injectors.
Resistance: Approx. 13.8 Ohms 20°C (68°F)
3. If not as specified, check continuity of the harness and check for poor connection.
4. If the harness is OK, replace the fuel injector.
Injector Leakage Test
Fuel Injector Leakage Inspection
1. Remove the fuel distributor assembly from the intake manifold.
2. Connect the fuel hoses.
DLC-1 Fuel Pump Relay Jumper Location
