Engine Control Module: Diagrams

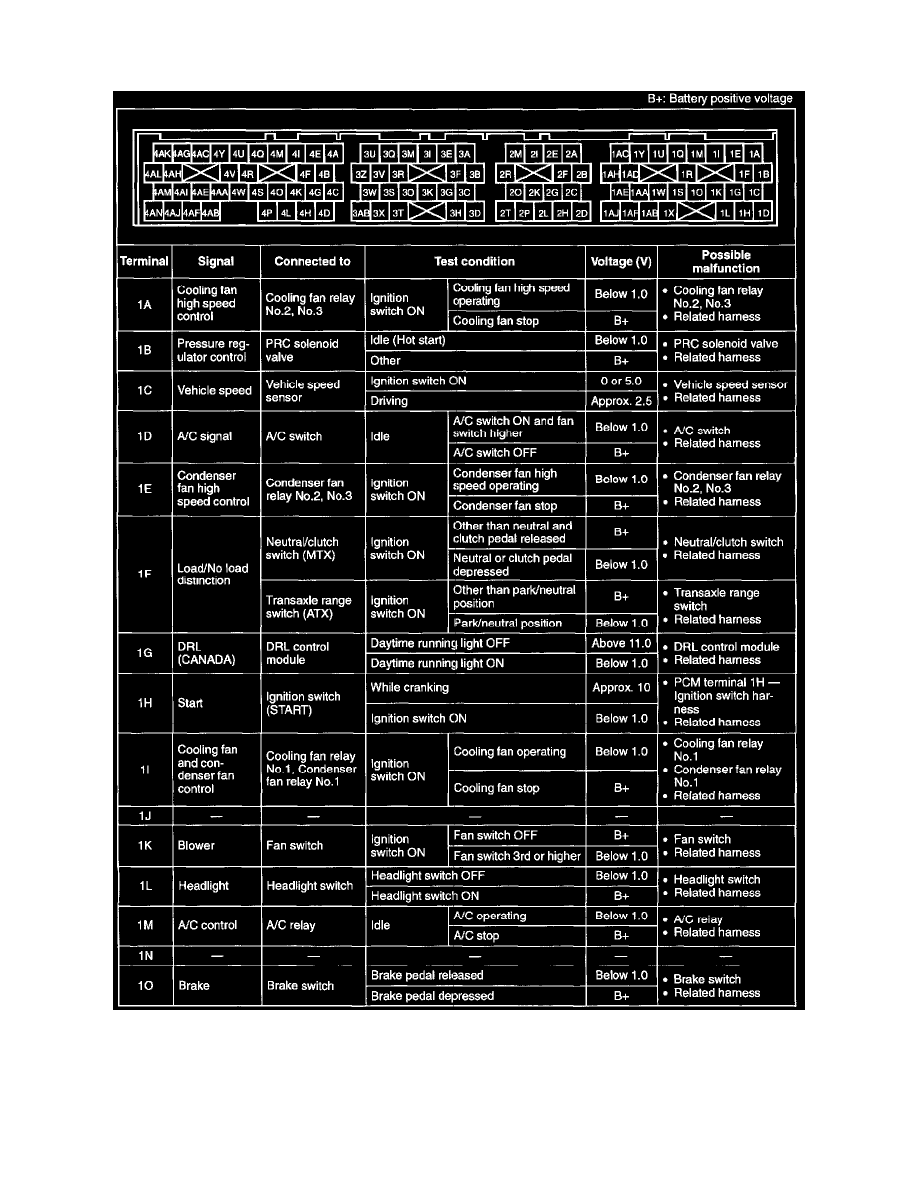

PCM Terminal Voltage (Reference)

PCM Terminal Voltage Reference (1 Of 7)
