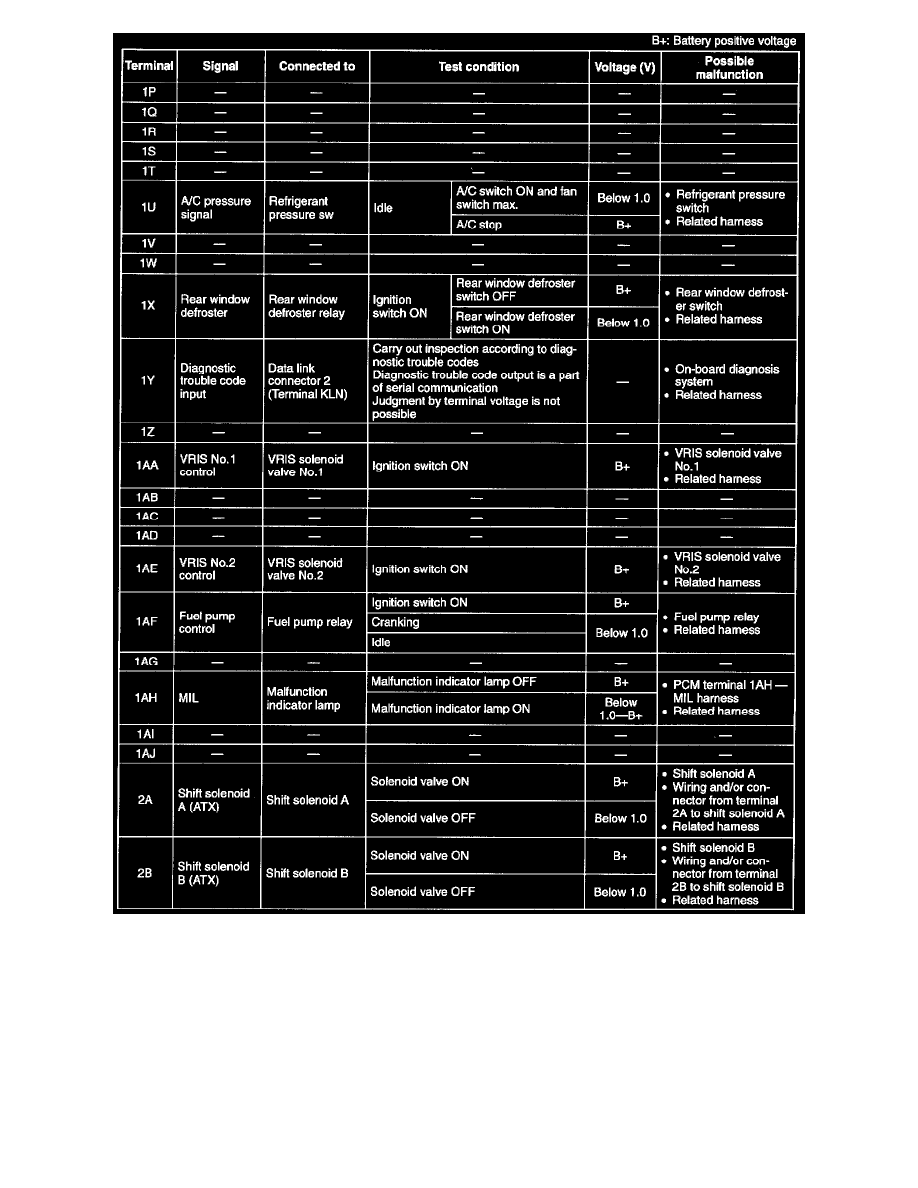

PCM Terminal Voltage Reference (2 Of 7)

Powertrain Management
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems / Engine Control Module / Locations
Page 1542
