190E 2.3 (201.028) L4-2.3L (102.985) (1987)
/l4-2.3l_(102.985)/Page-1714006.png)

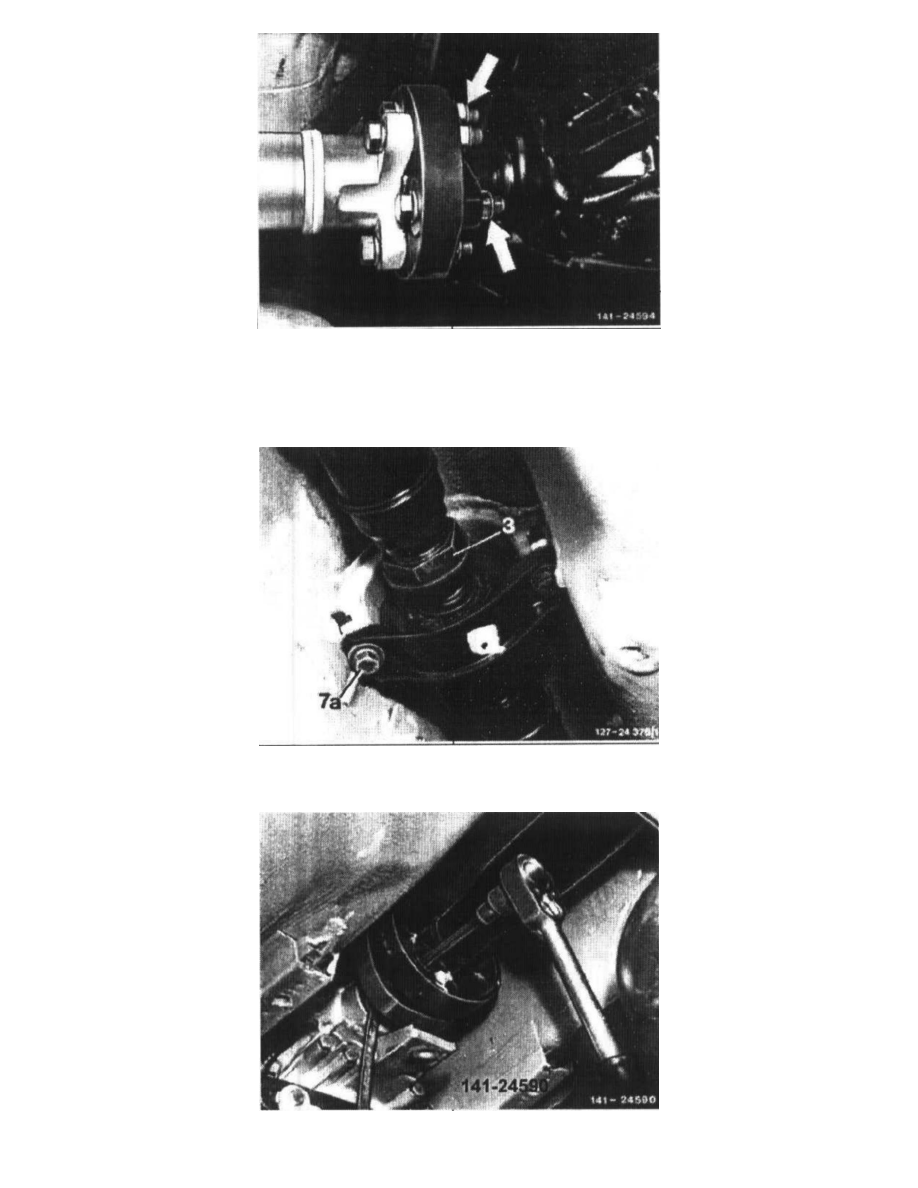

9 Remove propeller shaft from rear axle.
Note: Flexible coupling remains on propeller shaft.
Installation note: Renew self-locking hex. nuts (arrows), tightening torque 45 Nm.
10 Unscrew hex. head screws (7a) of propeller shaft intermediate bearing on frame floor. Tighten hex. head screws only after fastening propeller
shaft on transmission and rear axle, tightening torque 25 Nm.
7 Remove front propeller shaft from transmission.
