C 240 4MATIC Sedan (203.081) V6-2.6L (112.916) (2005)

Page 1
background image

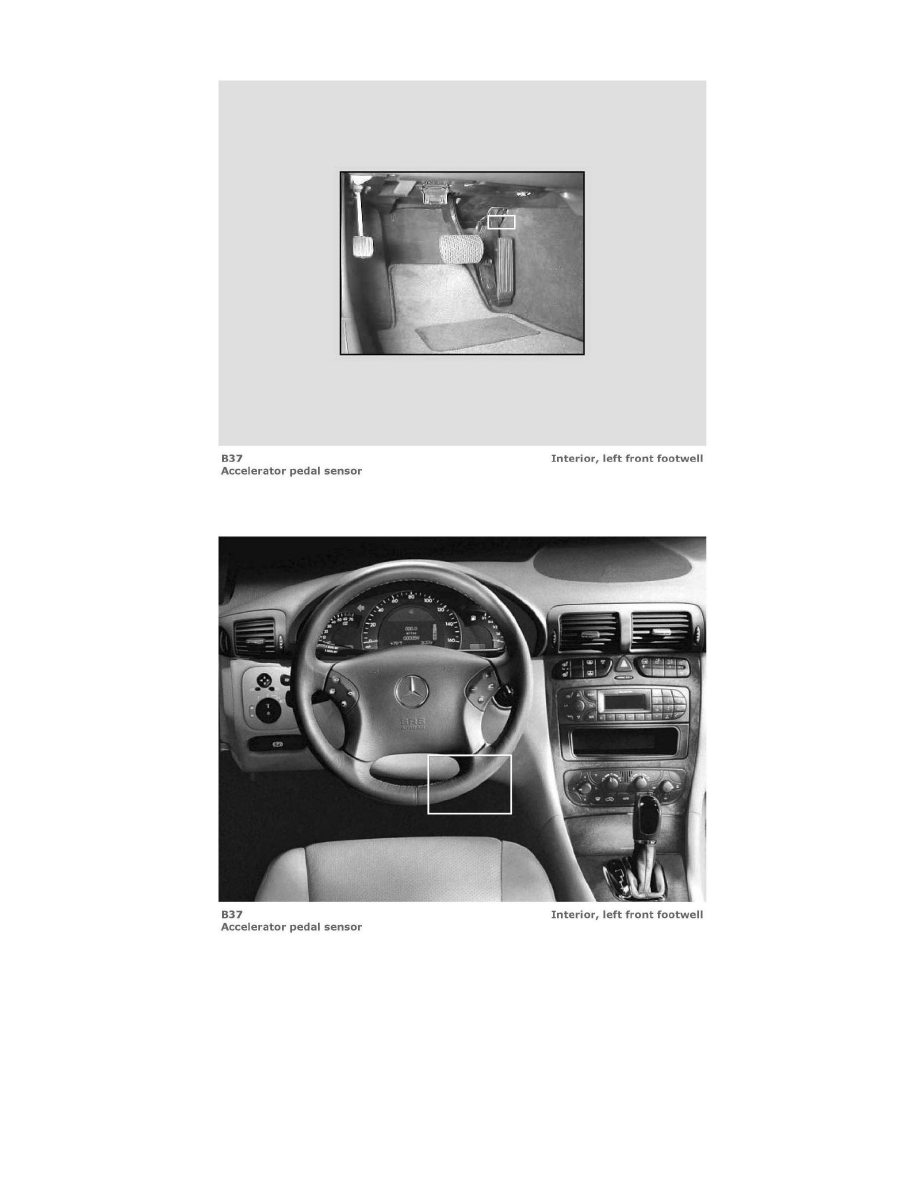

Accelerator Pedal Position Sensor: Locations

Accelerator Pedal Sensor (View 1)

Accelerator Pedal Sensor (View 2)
