Milan AWD L4-2.3L (2008)

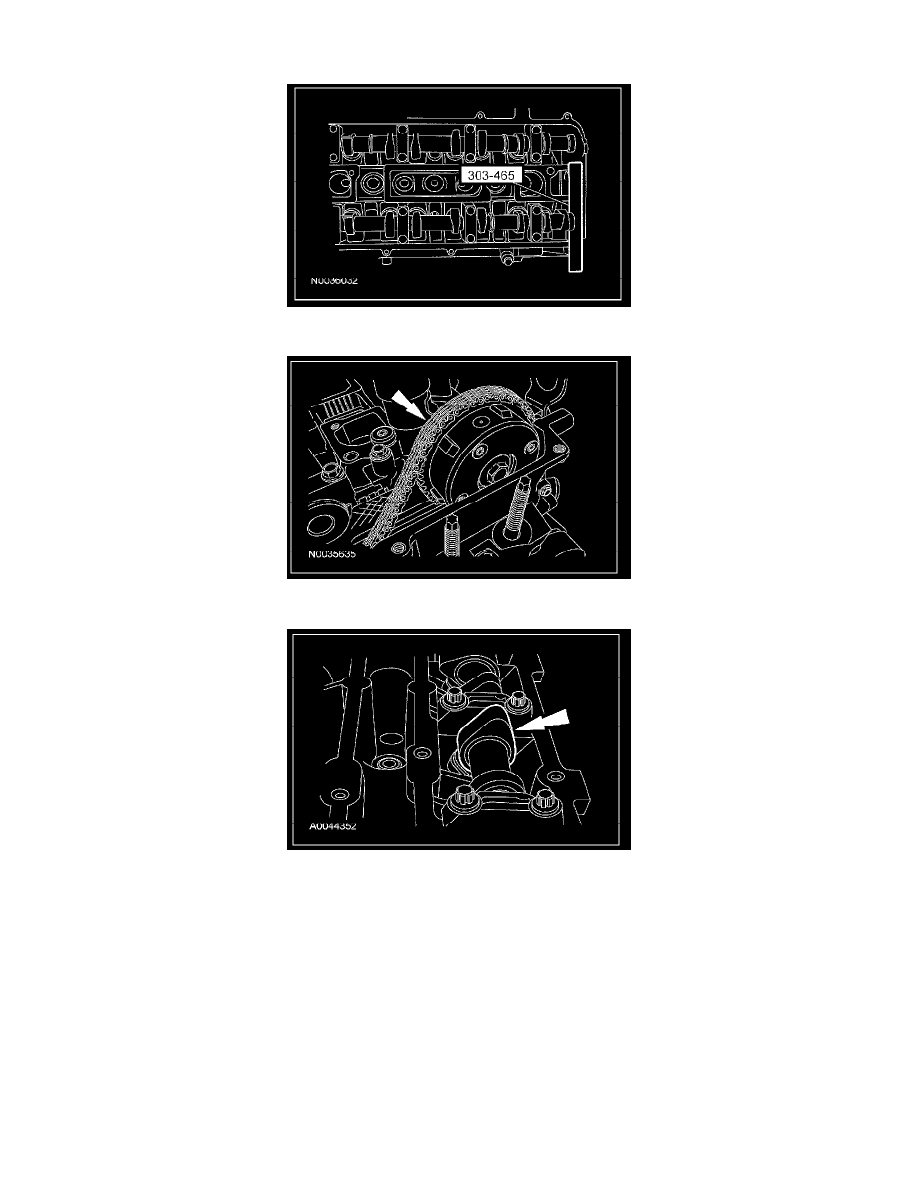

17. Remove the special tool.
18. Remove the timing chain from the intake camshaft drive gear.
19. Mark the position of the camshaft lobes on the No. 1 cylinder for installation reference.
20. CAUTION: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.
NOTE: Mark the location and orientation of each camshaft bearing cap.
Remove the camshafts from the engine.
^
Loosen the camshaft bearing cap bolts, in the sequence shown, one turn at a time until all tension is released from the camshaft bearing caps.
^
Remove the bolts and the camshaft bearing caps.
^
Remove the camshafts.
