Sable V6-3.0L DOHC VIN S (2002)

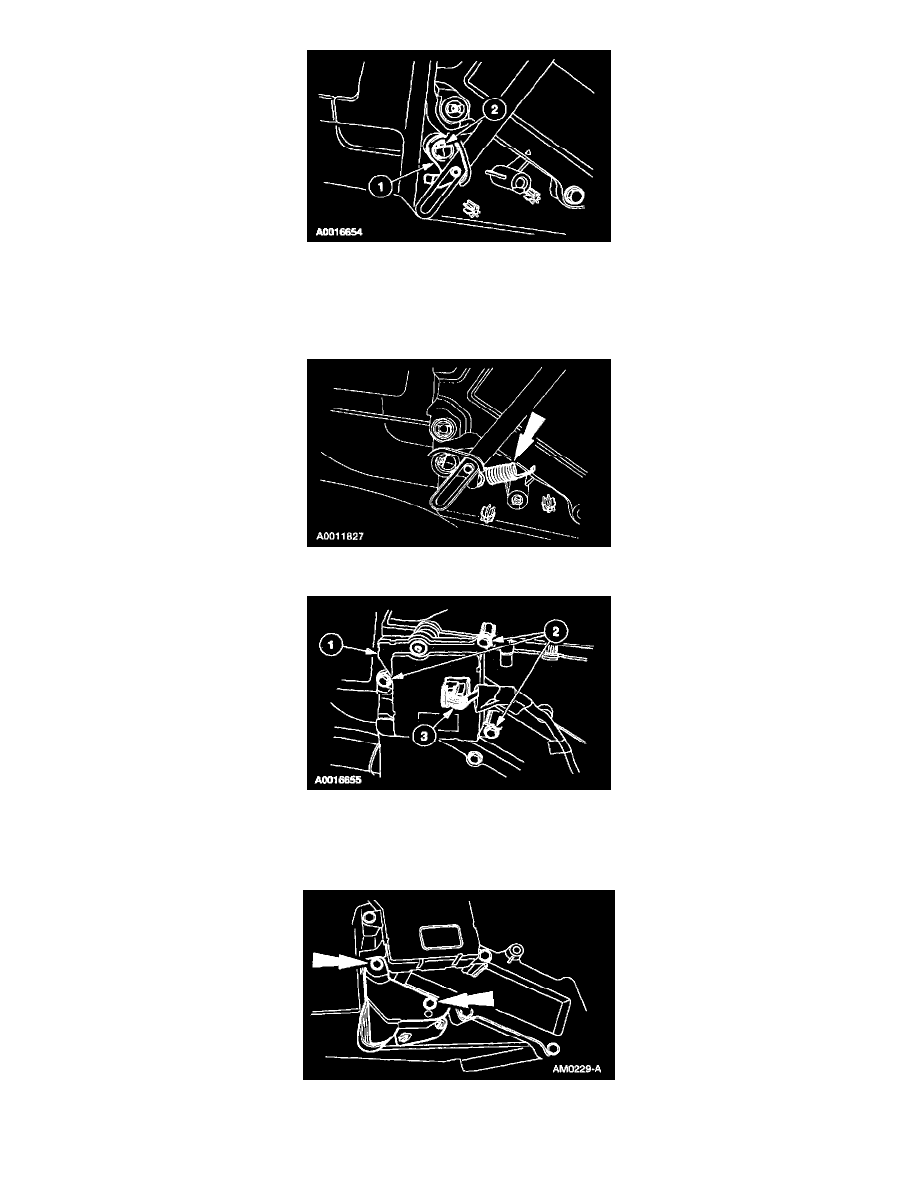

13. Install the A/C evaporator case damper door lever.
1
Install the A/C evaporator case damper door lever.
2
Align and insert the A/C evaporator case damper door lever.
CAUTION: Do not attempt to bend any part of the A/C evaporator case damper door lever.
14. Install the A/C evaporator case damper door assist spring.
15. Install the temperature blend door actuator.
1
Install the temperature blend door actuator.
2
Install the screws.
3
Connect the temperature blend door actuator electrical connector.
16. Install the shield and two screws.
Vehicles with electronic automatic temperature control (EATC)
