Page 17
background image

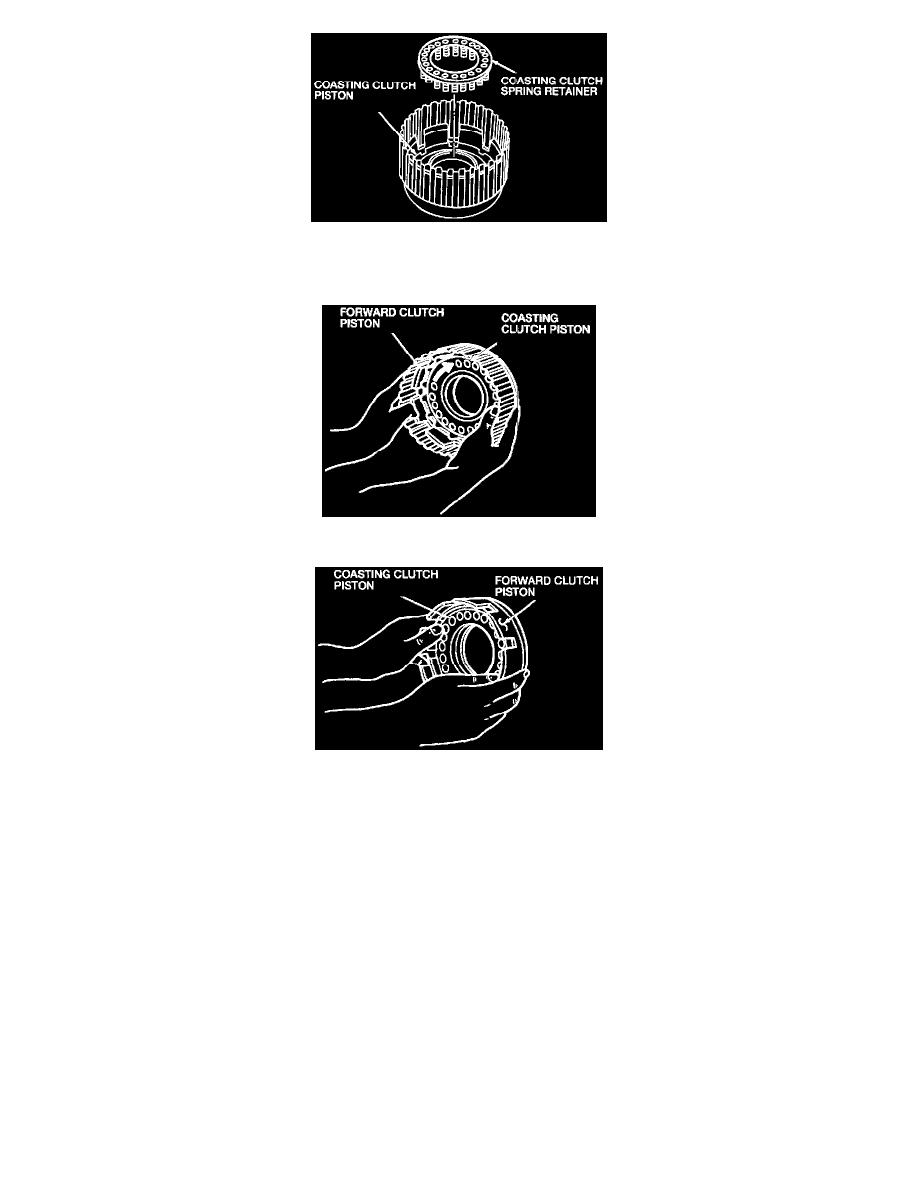

6. Remove the coasting clutch spring retainer with the coasting clutch return springs still attached.

NOTE:  Do not remove the coasting clutch return springs from the coasting clutch spring retainer.

7. Remove the forward clutch piston and coasting clutch piston from the forward clutch cylinder by turning the coasting clutch piston.

8. Remove the coasting clutch piston from the forward clutch piston by turning the coasting clutch piston.
