Galant L4-1997cc 2.0L SOHC 16 Valve (1993)

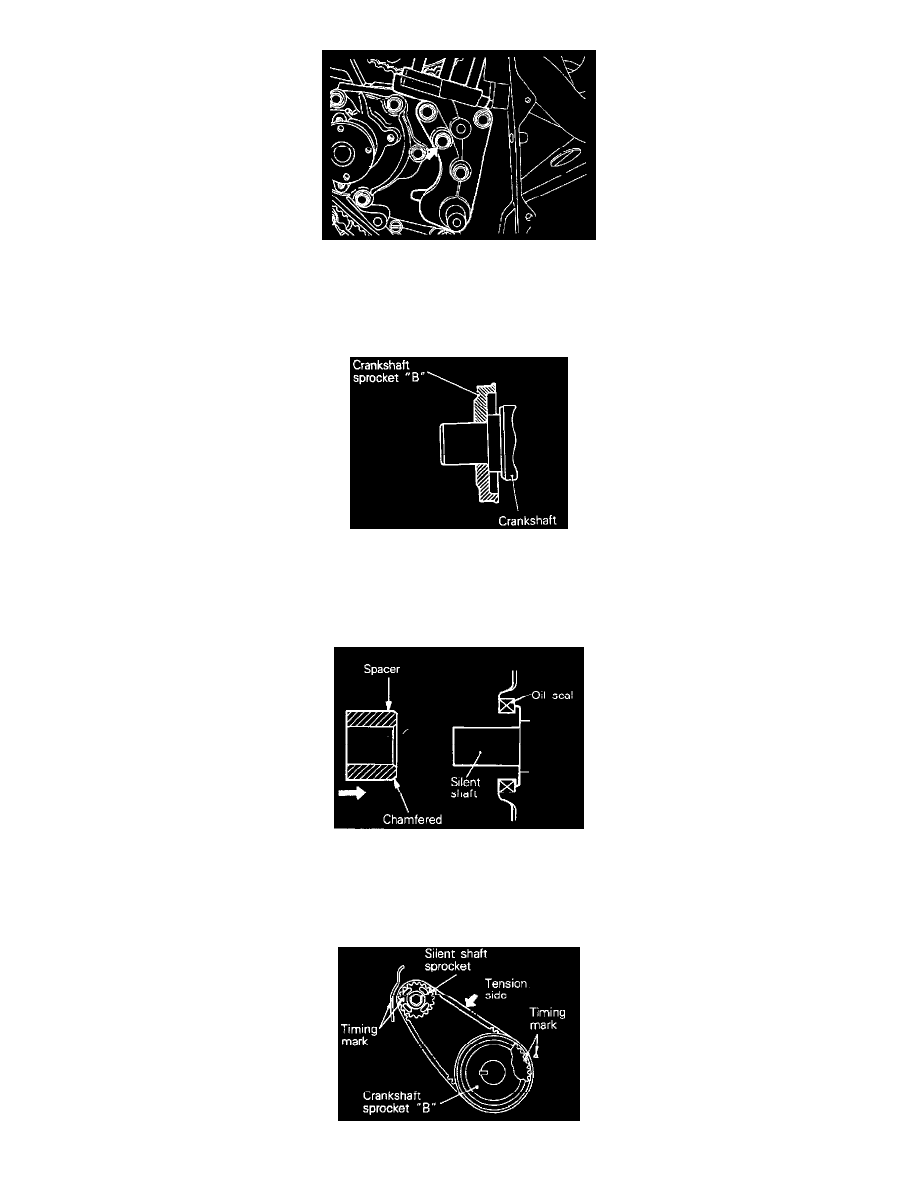

Apply sealant to the bolt shown in the image and tighten it to the specified torque.
Specified sealant: 3M ATD Part No.8660 or equivalent
26. INSTALLATION OF CRANKSHAFT SPROCKET
Install the crankshaft sprocket "B" as shown in image, while paying attention to its direction.
25. INSTALLATION OF SPACER
(1) Apply a thin coat of engine oil to the outer circumference of the spacer.
(2) Install the spacer with the chamfered end facing the oil seal.
NOTE: If the spacer is installed adversely, the oil seal may be damaged, resulting in the oil leaks.
23. INSTALLATION OF TIMING BELT "B"
