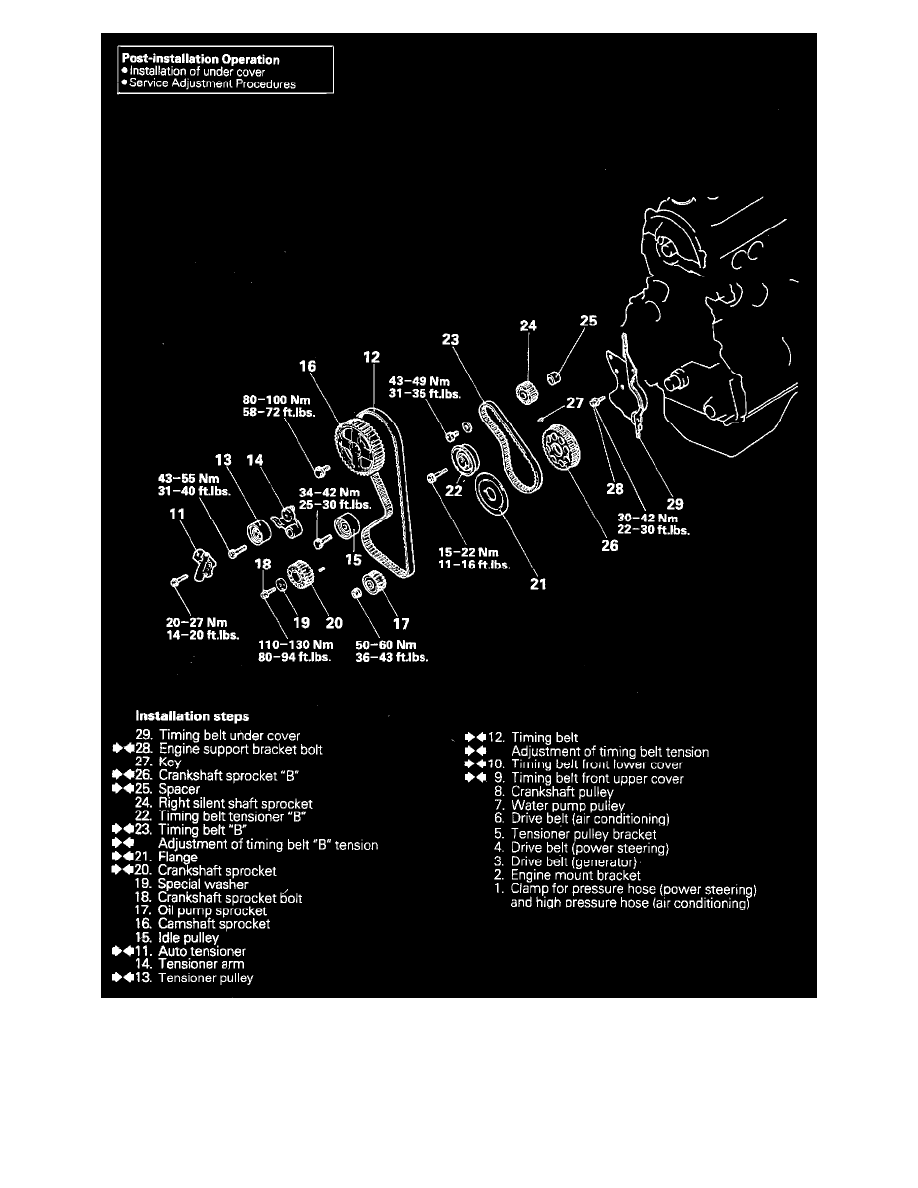

TIMING BELT INSTALLATION

NOTE: The above images refer to numerical service points of installation.

SERVICE POINTS OF INSTALLATION

28. INSTALLATION OF ENGINE SUPPORT BRACKET BOLT
