Cutlass Ciera Cruiser V6-3100 3.1L MFI VIN M (1994)
Throttle Body: Service and Repair

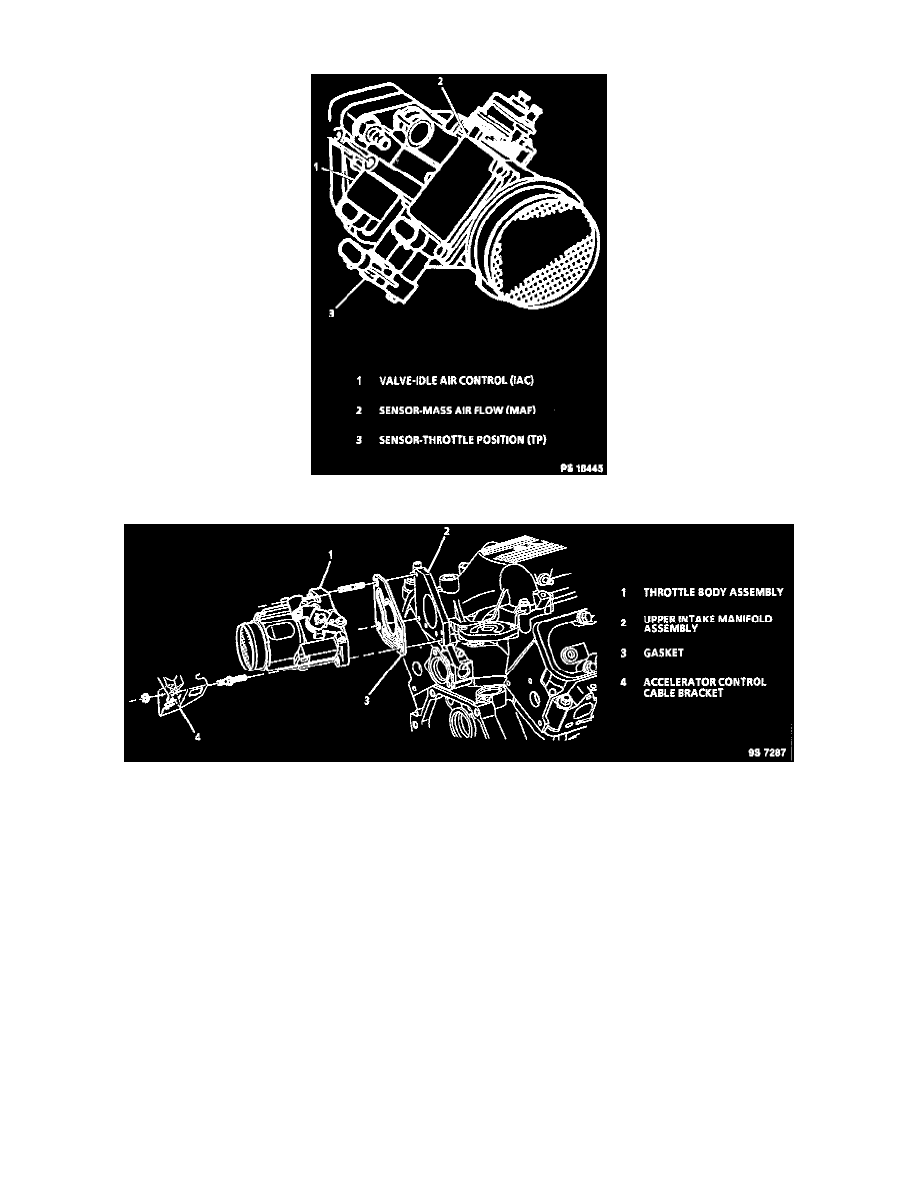

Throttle Body
Throttle Body Removal
REMOVE OR DISCONNECT
1. Negative battery cable.
2. Air inlet duct.
3. Throttle, and cruise control cables.
4. Positive crankcase ventilation (PCV) hose.
5. Idle Air Control (IAC) valve, Throttle Position (TP) and Mass Air Flow (MAF) sensor electrical connectors.
6. Fuel pipe clip at accelerator cable bracket.
7. Nuts holding throttle body to upper intake manifold.
8. Throttle body retaining bolt / stud.
9. Throttle body and flange gasket.
^
Discard gasket.
NOTICE: Use care in cleaning old gasket material from machined aluminum surfaces as sharp tools may damage sealing surfaces.
Clean
Gasket surface on intake manifold.
INSTALL OR CONNECT
1. New flange gasket.
