xB L4-2.4L (2AZ-FE) (2009)
/Page-1146001.png)
Flywheel: Specifications

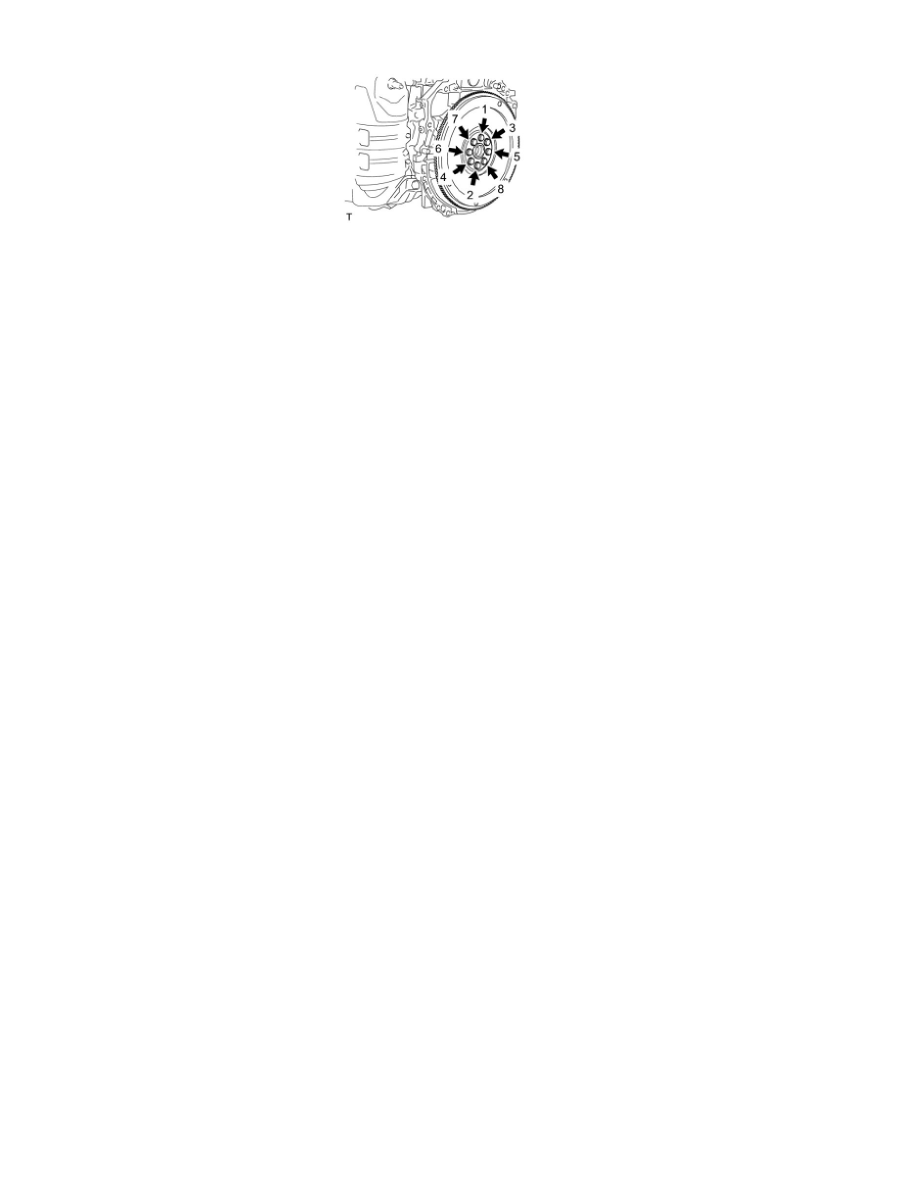

In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.
Torque: 130 Nm (1326 kgf-cm, 96 ft-lbf)
