Leon Mk2

Fitting
Fitting
l  The piston is removed.

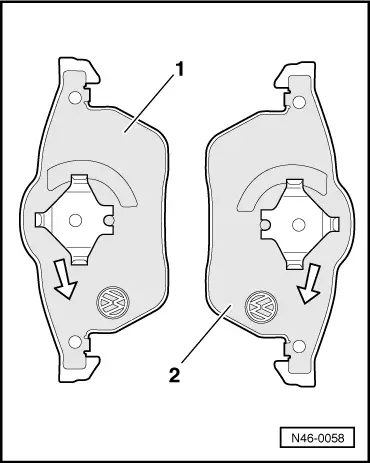

Brake pads with pre-defined direction of rotation
1 - Right hand piston side brake pad
2 - Brake pad on the left of the piston
–  Fit the brake pads.
  N46-0058
–  When fitted, the arrow on the back plate -A- must point downwards. Take special note!
–  Fit the outer pad to the brake carrier.
–  Remove the protective plastic cover from the back of the outer brake pad.
  N46-0059

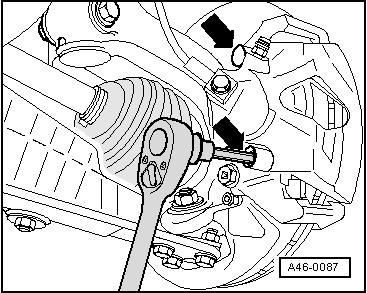

–  Screw in both guide pins -arrows- for the brake calliper to the brake carrier.
–  Fit the two protective covers.
–  Insert the support spring on the brake callipers.
–  Fit the brake pad wear indicator connector in the telescopic arm.
–  Remove the block for the brake pedal -VAG 1869/2-.
–  Screw the brake hose to the brake calliper → Item.
–  Bleed brake system → Chapter.
–  Fit wheel.
  Note
t  After each brake pad change firmly depress brake pedal several times with vehicle stationary, so that the brake pads are properly seated in their normal operating position.
t  After changing brake pads check brake fluid level.
  A46-0087
